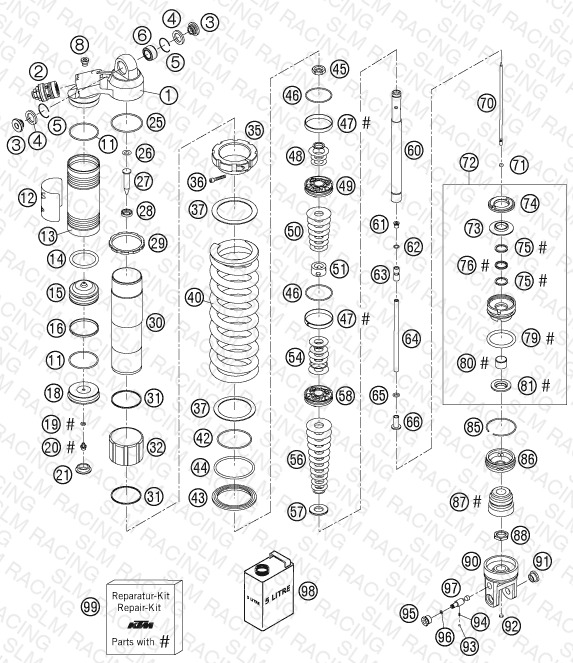

SHOCK ABSORBER DISASSEMBLED
Parts (101)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 50180429 MONOSHOCK TOP H=30,5 M54X1 | MONOSHOCK TOP H=30,5 M54X1 | 1 | $241.98 | Obsolete | View Details |
| 2 | 50180301S3 MCC-COMPR.DAMP.CONTROL CPL. 04 | MCC-COMPR.DAMP.CONTROL CPL. 04 | 1 | $189.06 | Obsolete | View Details |
| 3 | 46180007 Distance bush 12x15/18/24,5x10 | Distance bush 12x15/18/24,5x10 | 2 | $7.95 | Available | 2 |
| 4 | 46180003 Seal ring 19,5x26x3 | Seal ring 19,5x26x3 | 2 | $6.59 | Available | 2 |
| 5 | 50180168 Round-wire snap ring 25x1 | Round-wire snap ring 25x1 | 2 | $1.20 | Available | 2 |
| 6 | 50180005 Ball joint bearing 15x25x13 | Ball joint bearing 15x25x13 | 1 | $34.53 | Available | 1 |
| 8 | 50180095 HS cylinder-head screw R1/8 l8 | HS cylinder-head screw R1/8 l8 | 1 | $2.85 | Available | 1 |
| 11 | 46810016 O-ring 48x2 NBR70 siliconized | O-ring 48x2 NBR70 siliconized | 2 | $1.20 | Available | 2 |
| 12 | 52000041 WP CAUTION (PDS KTM) 58X83 | WP CAUTION (PDS KTM) 58X83 | 1 | $2.65 | Obsolete | View Details |
| 13 | 50180438 RESERV. SCREW L=120 D=52 GOLD | RESERV. SCREW L=120 D=52 GOLD | 1 | — | Check availability | |
| 14 | 46180014 O-ring 41x5 Viton75 | O-ring 41x5 Viton75 | 1 | $2.41 | Available | 1 |
| 15 | 46180002 Piston 52mm reservoir | Piston 52mm reservoir | 1 | $51.36 | Out of Stock | Notify Me |
| 16 | 46180015 Pistonring 47,5x50,5x3,9 | Pistonring 47,5x50,5x3,9 | 1 | $11.76 | Available | 1 |
| 18 | 50180344 RESERVOIR CAP D=58 | RESERVOIR CAP D=58 | 1 | $141.74 | Obsolete | View Details |
| 19 | 46810893 O-ring 5,28x1,78 NBR70 black | O-ring 5,28x1,78 NBR70 black | 1 | $1.04 | Obsolete | View Details |
| 20 | 36120151 HS lock screw M5x6 | HS lock screw M5x6 | 1 | $2.19 | Available | 1 |
| 21 | 46811208 Rubber cap do not open 22x5,5 | Rubber cap do not open 22x5,5 | 1 | $3.62 | Available | 1 |
| 25 | 50180097 O-ring 52x2 NBR70 | O-ring 52x2 NBR70 | 1 | $2.41 | Available | 1 |
| 26 | 50180177 spring washer 8,2x16x0,6 | spring washer 8,2x16x0,6 | 1 | $2.41 | Special Order | 1 |
| 27 | 50180448 NEEDLE D=11,4 D=7,8 L=57 | NEEDLE D=11,4 D=7,8 L=57 | 1 | $22.39 | Obsolete | View Details |
| 28 | 50180437 SCREW CAP M20X1 D=11,5 H=5 | SCREW CAP M20X1 D=11,5 H=5 | 1 | $27.92 | Obsolete | View Details |
| 29 | 50180270 LOCK WASHER | LOCK WASHER | 1 | $39.49 | Obsolete | View Details |
| 30 | 50180430 TUBE PDS L=198 | TUBE PDS L=198 | 1 | $146.04 | Obsolete | View Details |
| 31 | 50180133 spreader ring 50X1,5 | spreader ring 50X1,5 | 2 | $8.91 | Out of Stock | Notify Me |
| 32 | 50180081 Spring guide 54,15x60x40 | Spring guide 54,15x60x40 | 1 | $6.76 | Obsolete | View Details |
| 35 | 50180433 SPRING RETAINER M56X1 | SPRING RETAINER M56X1 | 1 | $145.39 | Obsolete | View Details |
| 36 | 0912050303 AH SCREW DIN0912-M 5X30 | AH SCREW DIN0912-M 5X30 | 1 | $1.99 | Available | 1 |
| 37 | 50180114 Intermediate washer spring 61, | Intermediate washer spring 61, | 2 | $3.62 | Available | 2 |
| 40 | 91210001 SPRING 250 69N/MM D=12,0 (62) | SPRING 250 69N/MM D=12,0 (62) | 0 | $165.41 | Obsolete | View Details |
| 40 | 91210002 SPRING 250 72N/MM D=12,5 (59) | SPRING 250 72N/MM D=12,5 (59) | 1 | $165.41 | Obsolete | View Details |
| 40 | 91210003 SPRING 250 76N/MM D=12,5 (59) | SPRING 250 76N/MM D=12,5 (59) | 1 | $241.49 | Obsolete | View Details |
| 40 | 91210004 SPRING 250 80N/MM D=12,5 (62) | SPRING 250 80N/MM D=12,5 (62) | 0 | $150.91 | Obsolete | View Details |
| 40 | 91210005 SPRING 250 84N/MM D=13,0 (62) | SPRING 250 84N/MM D=13,0 (62) | 0 | $178.66 | Obsolete | View Details |
| 40 | 91210014 SPRING PDS5-260 66-86N/MM | SPRING PDS5-260 66-86N/MM | 0 | $241.49 | Obsolete | View Details |
| 40 | 91210015 SPRING PDS6-260 71,5-90,5N/MM | SPRING PDS6-260 71,5-90,5N/MM | 0 | $150.91 | Obsolete | View Details |
| 40 | 91210016 SPRING PDS7-260 76-95N/MM | SPRING PDS7-260 76-95N/MM | 0 | $178.66 | Obsolete | View Details |
| 42 | 50180273 Round-wire snap ring 58,5x2 | Round-wire snap ring 58,5x2 | 1 | $2.41 | Available | 1 |
| 43 | 50180355 SPRING RETAINER D=80 2003 | SPRING RETAINER D=80 2003 | 1 | $89.84 | Obsolete | View Details |
| 44 | 50180352 O-ring 66,27x1,78 Viton70 | O-ring 66,27x1,78 Viton70 | 1 | $3.62 | Available | 1 |
| 45 | 50180141 Piston rod nut 16x1 | Piston rod nut 16x1 | 1 | $10.91 | Available | 1 |
| 46 | 50180099 O-ring 44x,17x1,78 Viton70 | O-ring 44x,17x1,78 Viton70 | 2 | $2.41 | Available | 2 |
| 47 | 50180135 Piston ring 47,95x49,95x8 | Piston ring 47,95x49,95x8 | 2 | $20.89 | Available | 2 |
| 48 | 50180210 WASHER 16X21X1 | WASHER 16X21X1 | 1 | $7.36 | Available | 1 |
| 49 | 50180446 PISTON 6+6X3,5/4,5 | PISTON 6+6X3,5/4,5 | 1 | $79.43 | Obsolete | View Details |
| 50 | 50180036 Shim 16x22x0,30 | Shim 16x22x0,30 | 0 | $2.41 | Available | 1 |
| 50 | 50180037 SHIM 16X23X0,30 | SHIM 16X23X0,30 | 0 | $3.62 | Available | 1 |
| 50 | 50180069 SHIM 16X40X0,25 | SHIM 16X40X0,25 | 0 | $3.62 | Available | 1 |
| 50 | 50180073 SHIM 16X30X0,30 | SHIM 16X30X0,30 | 0 | $3.62 | Available | 1 |
| 50 | 50180074 SHIM 16X32X0,30 | SHIM 16X32X0,30 | 0 | $3.62 | Available | 1 |
| 50 | 50180075 SHIM 16X34X0,30 | SHIM 16X34X0,30 | 0 | $3.62 | Available | 1 |
| 50 | 50180076 SHIM 16X36X0,30 | SHIM 16X36X0,30 | 0 | $3.62 | Available | 1 |
| 50 | 50180077 SHIM 16X38X0,30 | SHIM 16X38X0,30 | 0 | $3.62 | Available | 1 |
| 50 | 50180078 SHIM 16X40X0,30 | SHIM 16X40X0,30 | 0 | $3.62 | Available | 1 |
| 51 | 50180436 SANDWICH BUSH D26XD16X14.5/11 | SANDWICH BUSH D26XD16X14.5/11 | 1 | $32.42 | Obsolete | View Details |
| 54 | 50180045 SHIM 16X28X0,15 | SHIM 16X28X0,15 | 0 | $3.62 | Available | 1 |
| 54 | 50180054 Shim 16x28x0,2 | Shim 16x28x0,2 | 0 | $3.62 | Available | 1 |
| 54 | 50180067 SHIM 16X36X0,25 | SHIM 16X36X0,25 | 0 | $3.62 | Available | 1 |
| 56 | 50180048 SHIM 16X34X0,15 | SHIM 16X34X0,15 | 0 | $3.62 | Available | 1 |
| 56 | 50180059 SHIM 16X38X0,20 | SHIM 16X38X0,20 | 0 | $3.62 | Available | 1 |
| 56 | 50180060 Shim 16x40x0,2 | Shim 16x40x0,2 | 0 | $3.62 | Available | 1 |
| 56 | 50180061 Shim 16x42x0,2 | Shim 16x42x0,2 | 0 | $3.62 | Available | 1 |
| 56 | 50180062 SHIM 16X44X0,20 | SHIM 16X44X0,20 | 0 | $3.62 | Available | 1 |
| 56 | 50180063 SHIM 16X28X0,25 | SHIM 16X28X0,25 | 0 | $3.62 | Available | 1 |
| 56 | 50180064 SHIM 16X30X0,25 | SHIM 16X30X0,25 | 0 | $3.62 | Available | 1 |
| 56 | 50180065 SHIM 16X32X0,25 | SHIM 16X32X0,25 | 0 | $3.62 | Available | 1 |
| 56 | 50180066 SHIM 16X34X0,25 | SHIM 16X34X0,25 | 0 | $3.62 | Available | 1 |
| 56 | 50180067 SHIM 16X36X0,25 | SHIM 16X36X0,25 | 0 | $3.62 | Available | 1 |
| 56 | 50180071 SHIM 16X44X0,25 | SHIM 16X44X0,25 | 0 | $3.62 | Available | 1 |
| 57 | 50180196 REBOUND DISC D=34, H=8 | REBOUND DISC D=34, H=8 | 1 | $73.59 | Backorder — Mid December 2026 | 1 |
| 58 | 50180197 Piston 16,05x49,6x13,5 4,5/7 | Piston 16,05x49,6x13,5 4,5/7 | 1 | $53.67 | Available | 1 |
| 60 | 50180431 PISTON ROD D=18 L=151 M16X1 | PISTON ROD D=18 L=151 M16X1 | 1 | $207.74 | Obsolete | View Details |
| 61 | 50180200 BUSH M8X1 | BUSH M8X1 | 1 | $16.89 | Out of Stock | Notify Me |
| 62 | 50180157 O-ring 7x1,5 Viton70 green | O-ring 7x1,5 Viton70 green | 1 | $1.20 | Available | 1 |
| 63 | 50180439 NEEDLE SEAT M8X1 D=5,5 05 | NEEDLE SEAT M8X1 D=5,5 05 | 1 | $23.40 | Obsolete | View Details |
| 64 | 50180264 TUBE M18X1 L=151,5 | TUBE M18X1 L=151,5 | 1 | $12.42 | Obsolete | View Details |
| 65 | 48600049 O-ring 8x2 NBR70 | O-ring 8x2 NBR70 | 1 | $1.20 | Available | 1 |
| 66 | 50180279 Bush 5/8,2/7x9,5/16,8x23 | Bush 5/8,2/7x9,5/16,8x23 | 1 | $4.83 | Available | 1 |
| 70 | 50180261 NEEDLE L=175 | NEEDLE L=175 | 1 | $72.33 | Obsolete | View Details |
| 71 | 46811265 O-ring 2,2x1,6 Viton75 green | O-ring 2,2x1,6 Viton75 green | 1 | $1.20 | Available | 1 |
| 72 | 50180435S ADAPTOR CPL. D=50 H=29 | ADAPTOR CPL. D=50 H=29 | 1 | $143.62 | Obsolete | View Details |
| 73 | 50180113 Washer 18,5x43,7x6 | Washer 18,5x43,7x6 | 1 | $30.35 | Out of Stock | Notify Me |
| 74 | 50180107 Rubber pad rebound 27x48x8 NBR | Rubber pad rebound 27x48x8 NBR | 1 | $4.83 | Available | 1 |
| 75 | 50180102 Washer 18x22,5x1,5 plastic | Washer 18x22,5x1,5 plastic | 2 | $10.11 | Available | 2 |
| 76 | 50180101 X-ring 18x2,62 Viton70 | X-ring 18x2,62 Viton70 | 1 | $18.47 | Available | 1 |
| 79 | 50180103 O-ring 41x5 NBR70 | O-ring 41x5 NBR70 | 1 | $1.20 | Available | 1 |
| 80 | 46180119 Guide bushing 18x20x12 | Guide bushing 18x20x12 | 1 | $8.99 | Available | 1 |
| 81 | 50180082 Dirt scarper 18mm | Dirt scarper 18mm | 1 | $40.03 | Obsolete | View Details |
| 85 | 50180126 Round-wire snap ring 53x1,75 | Round-wire snap ring 53x1,75 | 1 | $1.20 | Available | 1 |
| 86 | 50180165 Cap 50,1x17,5 h6 | Cap 50,1x17,5 h6 | 1 | $52.99 | Obsolete | View Details |
| 87 | 50180276 Rubber pad 17,2x45,2x40 black | Rubber pad 17,2x45,2x40 black | 1 | $9.89 | Available | 1 |
| 88 | 50180283 HH locking nut M18x1 h5 WAF24 | HH locking nut M18x1 h5 WAF24 | 1 | $14.29 | Obsolete | View Details |
| 90 | 50180356 FORK PART L=55,5 B=32,5 D=12 | FORK PART L=55,5 B=32,5 D=12 | 1 | $365.86 | Obsolete | View Details |
| 91 | 50180105 Threaded bush M12 d20 | Threaded bush M12 d20 | 1 | $18.25 | Available | 1 |
| 92 | 50180297 Rubber plug 8x3,5 NBR50 | Rubber plug 8x3,5 NBR50 | 1 | $2.99 | Obsolete | View Details |
| 93 | 40540603 Steel ball d3 | Steel ball d3 | 2 | $1.20 | Available | 2 |
| 94 | 48600028 Spring (1,7) l7,9 | Spring (1,7) l7,9 | 1 | $3.62 | Available | 1 |
| 95 | 50180281 HH screw M14x9 | HH screw M14x9 | 1 | $34.09 | Special Order | 1 |
| 96 | 50180222 O-ring 4x1,5 NBR70 | O-ring 4x1,5 NBR70 | 1 | $1.20 | Available | 1 |
| 97 | 50180434 Adjustment screw slot | Adjustment screw slot | 1 | $7.38 | Obsolete | View Details |
| 98 | 50180342S1 SHOCK ABSORBER FLUID 5 LT '03 | SHOCK ABSORBER FLUID 5 LT '03 | 1 | $165.36 | Obsolete | View Details |
| 99 | R12008 REPAIR-KIT GASKET 5018 PDS 03 | REPAIR-KIT GASKET 5018 PDS 03 | 1 | $148.99 | Available | 1 |
