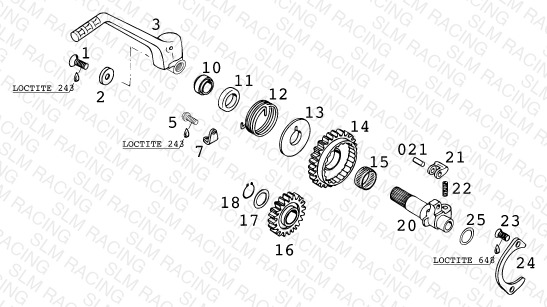

KICK STARTER
Parts (21)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 54610052000 SPROCKET SCREW-AH M8X20 WS=6 | SPROCKET SCREW-AH M8X20 WS=6 | 2 | $2.99 | Available | 2 |
| 2 | 54633037000 WASHER 8MM GALVANIZED | WASHER 8MM GALVANIZED | 1 | $7.14 | Available | 1 |
| 3 | 54633036344 KICKSTARTER CPL. 250/VI '92 | KICKSTARTER CPL. 250/VI '92 | 1 | — | Obsolete | View Details |
| 5 | 0015060163 HH COLLAR SCREW M 6X16 WS=8 | HH COLLAR SCREW M 6X16 WS=8 | 3 | $3.99 | Available | 3 |
| 7 | 54633074000 SPRING HANGER | SPRING HANGER | 1 | $4.99 | Available | 1 |
| 10 | 54633038000 SPACER BUSHING ZINC PLATED | SPACER BUSHING ZINC PLATED | 1 | $10.11 | Available | 1 |
| 11 | 0760193070 SHAFT SEAL RING 19X30X7 B | SHAFT SEAL RING 19X30X7 B | 1 | $6.59 | Available | 1 |
| 12 | 54633025000 KICKSTARTER SPRING | KICKSTARTER SPRING | 1 | $11.54 | Available | 1 |
| 13 | 54633026000 DRIVING HUB | DRIVING HUB | 1 | $2.99 | Available | 1 |
| 14 | 54733051034 KICKSTART.GEAR 34-Z 250-380'99 | KICKSTART.GEAR 34-Z 250-380'99 | 1 | — | Obsolete | View Details |
| 15 | 56533098000 NEEDLE BEARING K22X26X13H | NEEDLE BEARING K22X26X13H | 1 | $14.07 | Available | 1 |
| 16 | 54633024200 KICKST.INTERMEDIATE GEAR 24 T | KICKST.INTERMEDIATE GEAR 24 T | 1 | — | Obsolete | View Details |
| 17 | 54633090000 STOP DISK 17,2X25X1 | STOP DISK 17,2X25X1 | 1 | $6.15 | Available | 1 |
| 18 | 0471170010 CIRCLIP DIN0471-17X1 | CIRCLIP DIN0471-17X1 | 2 | $2.99 | Available | 2 |
| 20 | 54633021200 KICKSTARTER SHAFT | KICKSTARTER SHAFT | 1 | — | Obsolete | View Details |
| 21 | 0402061480 NEEDLE ROLLER DIN5402 6X14,8 | NEEDLE ROLLER DIN5402 6X14,8 | 3 | $4.99 | Available | 3 |
| 21 | 54633023200 LOCKING PAWL | LOCKING PAWL | 1 | — | Obsolete | View Details |
| 22 | 54633028200 RATCHET SPRING | RATCHET SPRING | 1 | — | Obsolete | View Details |
| 23 | 0991060166 FL.HEAD SCR.DIN7991-M6X16 | FL.HEAD SCR.DIN7991-M6X16 | 2 | $1.99 | Available | 2 |
| 24 | 54733069000 RELEASE PLATE 6MM '99 | RELEASE PLATE 6MM '99 | 1 | $54.66 | Available | 1 |
| 25 | 0988172405 SHIM WASHER DIN0988-17X24X0,5 | SHIM WASHER DIN0988-17X24X0,5 | 1 | $2.99 | Available | 1 |
