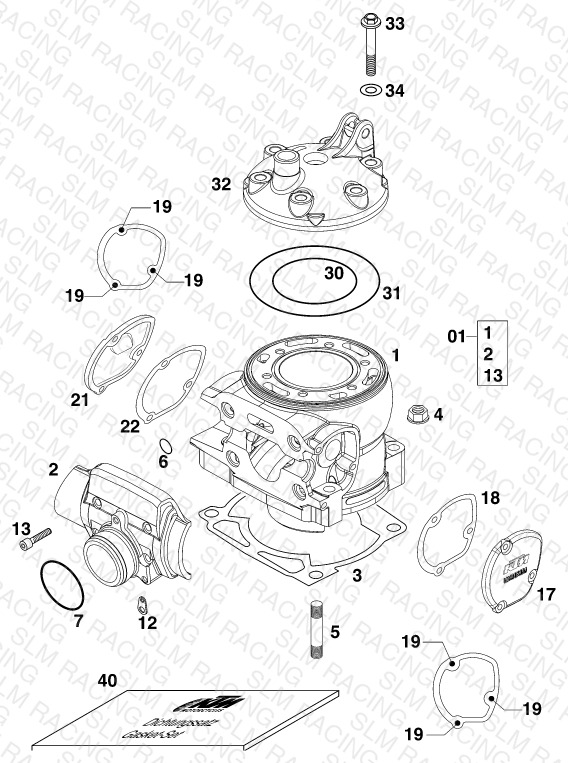

CYLINDER
Parts (21)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 3 | 54630030102 CYLINDER BASE GASKET 0,20MM'96 | CYLINDER BASE GASKET 0,20MM'96 | — | $6.92 | Available | 1 |
| 3 | 54630030104 CYLINDER BASE GASKET 0,40MM'98 | CYLINDER BASE GASKET 0,40MM'98 | — | $6.92 | Available | 1 |
| 3 | 54630030105 CYLINDER BASE GASKET 0,50MM'96 | CYLINDER BASE GASKET 0,50MM'96 | — | $7.14 | Available | 1 |
| 3 | 54630030107 CYLINDER BASE GASKET 0,75MM'96 | CYLINDER BASE GASKET 0,75MM'96 | — | $9.56 | Available | 1 |
| 4 | 54630044000 COLLAR NUT M10 WS=13 | COLLAR NUT M10 WS=13 | 1 | $1.99 | Available | 1 |
| 5 | 0835100456 STUD DIN0835-M10X45 | STUD DIN0835-M10X45 | 4 | — | Obsolete | View Details |
| 6 | 0770116241 O-RING 11,3 X2,4 SILICON | O-RING 11,3 X2,4 SILICON | 4 | $3.99 | Available | 4 |
| 7 | 0770440030 O-RING 44,00X3,00 VITON | O-RING 44,00X3,00 VITON | 2 | $4.99 | Available | 2 |
| 12 | 51005074000 RETAINING PLATE | RETAINING PLATE | 2 | $3.99 | Available | 2 |
| 13 | 0912060303 AH SCREW DIN0912-M 6X30 | AH SCREW DIN0912-M 6X30 | 4 | $2.99 | Available | 4 |
| 17 | 54737005000 CONTROL COVER L/S 250'00 | CONTROL COVER L/S 250'00 | 1 | — | Obsolete | View Details |
| 18 | 54737006000 GASKET FOR CONTROL COVER L/S | GASKET FOR CONTROL COVER L/S | 1 | $6.15 | Available | 1 |
| 19 | 0912050123 AH SCREW DIN0912-M 5X12 | AH SCREW DIN0912-M 5X12 | 1 | $2.99 | Available | 1 |
| 21 | 54737007000 CONTROL COVER R/S 250' | CONTROL COVER R/S 250' | 1 | — | Obsolete | View Details |
| 22 | 54737008000 GASKET FOR CONTROL COVER R/S | GASKET FOR CONTROL COVER R/S | 1 | $6.15 | Available | 1 |
| 30 | 0770740021 0-RING 74,00X2,00 SILICONE | 0-RING 74,00X2,00 SILICONE | 1 | $6.26 | Available | 1 |
| 31 | 0770114020 O-RING 114,00X2,00 SILICONE | O-RING 114,00X2,00 SILICONE | 1 | $8.90 | Available | 1 |
| 32 | 54630206000 | 1 | — | Obsolete | View Details | |
| 33 | 56530079000 HH COLLAR SCREW M 8X44 WS13 | HH COLLAR SCREW M 8X44 WS13 | 3 | $3.99 | Available | 3 |
| 34 | 56530080000 CU-SEAL RING 8 X 16 X 1 | CU-SEAL RING 8 X 16 X 1 | 6 | $2.99 | Available | 6 |
| 40 | 54630097000 GASKET SET CYLINDER '96-'01 | GASKET SET CYLINDER '96-'01 | 1 | $105.92 | Obsolete | View Details |
