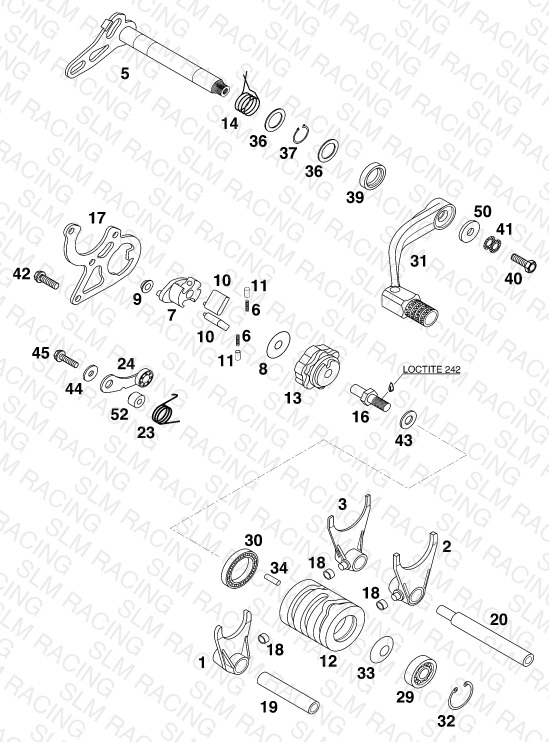

SHIFTING MECHANISM
Parts (37)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 50334001000 SHIFTING FORK 5TH/6TH GEAR '98 | SHIFTING FORK 5TH/6TH GEAR '98 | 1 | — | Check availability | View Details |
| 2 | 50334002000 SHIFTING FORK 2ND/4TH GEAR '98 | SHIFTING FORK 2ND/4TH GEAR '98 | 1 | — | Check availability | View Details |
| 3 | 50334003000 SHIFTING FORK 1ST/3RD GEAR '98 | SHIFTING FORK 1ST/3RD GEAR '98 | 1 | — | Check availability | View Details |
| 5 | 50334005000 SHIFTING SHAFT 125/200'98 | SHIFTING SHAFT 125/200'98 | 1 | — | Check availability | View Details |
| 6 | 50334007052 Spring for ratchet 0.5X11.5 | Spring for ratchet 0.5X11.5 | 2 | — | Check availability | |
| 7 | 50334007000 RATCHET SUPPORT 125/200'98 | RATCHET SUPPORT 125/200'98 | 1 | — | Check availability | |
| 8 | 50334007054 STOP DISK 8,2X26X0,7 | STOP DISK 8,2X26X0,7 | 1 | — | Check availability | |
| 9 | 50334007053 BUSHING 6X8X12X4,5 | BUSHING 6X8X12X4,5 | 1 | — | Check availability | |
| 10 | 50334007050 SHIFTING RATCHET 125/200'98 | SHIFTING RATCHET 125/200'98 | 2 | — | Check availability | View Details |
| 11 | 50334007051 PRESSURE END PAD 4,1X5,6X8,4 | PRESSURE END PAD 4,1X5,6X8,4 | 2 | — | Check availability | |
| 12 | 50334012000 SHIFTING DRUM ALU 125/200' | SHIFTING DRUM ALU 125/200' | 1 | — | Check availability | |
| 13 | 50334013000 LOCATING DRUM 125/200'98 | LOCATING DRUM 125/200'98 | 1 | — | Check availability | |
| 14 | 50334014000 RETURN SPRING 3MM | RETURN SPRING 3MM | 1 | — | Check availability | |
| 16 | 50334016000 SPECIAL SCREW M8X21,5 WS=12 | SPECIAL SCREW M8X21,5 WS=12 | 1 | — | Check availability | |
| 17 | 50334017000 SHIFTING GATE 3MM 125/200'98 | SHIFTING GATE 3MM 125/200'98 | 1 | — | Check availability | |
| 18 | 50334018100 SHIFTING ROLLER 6X8X5,2 | SHIFTING ROLLER 6X8X5,2 | 3 | — | Check availability | |
| 19 | 50334019000 SHIFTING ROD DRIVE 11,8X67,5 | SHIFTING ROD DRIVE 11,8X67,5 | 1 | — | Check availability | |
| 20 | 50334020000 SHIFT. ROD DRIVE END 11,8X94,5 | SHIFT. ROD DRIVE END 11,8X94,5 | 1 | — | Check availability | |
| 23 | 50334023000 LOCATING LEVER SPRING 2,5MM'98 | LOCATING LEVER SPRING 2,5MM'98 | 1 | — | Check availability | |
| 24 | 50334024044 LOCATING LEVER CPL.125/200'98 | LOCATING LEVER CPL.125/200'98 | 1 | — | Check availability | View Details |
| 29 | 0625060006 BALL BEARING 6000 RS1 C3 | BALL BEARING 6000 RS1 C3 | 1 | — | Check availability | |
| 30 | 0625618050 BALL BEARING 61805 C3 | BALL BEARING 61805 C3 | 1 | — | Check availability | |
| 31 | 54634031044 SHIFT LEVER CPL. 2-STROKE | SHIFT LEVER CPL. 2-STROKE | 1 | — | Check availability | View Details |
| 32 | 0472260120 LOCK RING DIN0472-26X1,2 | LOCK RING DIN0472-26X1,2 | 1 | — | Check availability | |
| 33 | 0093251209 SPRING WASHER 12,2X25X0,9 | SPRING WASHER 12,2X25X0,9 | 1 | — | Check availability | |
| 34 | 58336016050 | 1 | — | Check availability | ||
| 36 | 49033031000 STOP DISK 14,3X20X1 | STOP DISK 14,3X20X1 | 0 | — | Check availability | |
| 37 | 0471140100 retaining ring DIN 471 14x1 | retaining ring DIN 471 14x1 | 1 | — | Check availability | |
| 39 | 0760142460 radial shaft seal 14x24x6 B | radial shaft seal 14x24x6 B | 1 | — | Check availability | |
| 40 | 0933060165 HH SCREW DIN0933-M 6X16 10.9 | HH SCREW DIN0933-M 6X16 10.9 | 1 | — | Check availability | View Details |
| 41 | 50233041000 Pair of washers M6 NORDLOCK | Pair of washers M6 NORDLOCK | 1 | — | Check availability | |
| 42 | 0015060203 HH COLLAR SCREW M 6X20 WS=8 | HH COLLAR SCREW M 6X20 WS=8 | 3 | — | Check availability | View Details |
| 43 | 0125080003 washer DIN 125 A -8.4 | washer DIN 125 A -8.4 | 1 | — | Check availability | |
| 44 | 0125050003 WASHER DIN0125-A 5,3 | WASHER DIN0125-A 5,3 | 1 | — | Check availability | |
| 45 | 0015050203 HH COLLAR SCREW M 5X20 WS=8 | HH COLLAR SCREW M 5X20 WS=8 | 1 | — | Check availability | View Details |
| 50 | 50232050001 STEEL WASHER 6,4X17X3 | STEEL WASHER 6,4X17X3 | 1 | — | Check availability | |
| 52 | 54634052300 SLEEVE FOR LOCKING LEVER | SLEEVE FOR LOCKING LEVER | 1 | — | Check availability |
