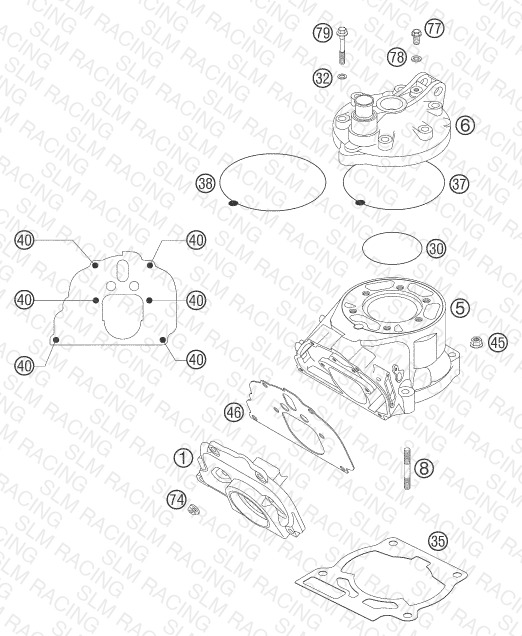

CYLINDER
Parts (22)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 52337001200 INTERMEDIATE FLANGE 200 2000 | INTERMEDIATE FLANGE 200 2000 | 1 | — | Check availability | View Details |
| 5 | 52330005300 CYLINDER 200 2003 | CYLINDER 200 2003 | 1 | — | Check availability | |
| 6 | 52330006100 CYLINDER HEAD 200 2003 | CYLINDER HEAD 200 2003 | 1 | — | Check availability | View Details |
| 8 | 0835080355 STUD DIN0835-M 8X35 10.9 | STUD DIN0835-M 8X35 10.9 | 4 | — | Check availability | |
| 30 | 0770062020 O-RING 62,00X2,00 VITON | O-RING 62,00X2,00 VITON | 1 | — | Check availability | |
| 30 | 0770720021 O-RING 72,00X2,00 VITON | O-RING 72,00X2,00 VITON | 1 | — | Check availability | |
| 32 | 50230032010 CU-SEAL RING 7,3 X 12 X 0,5 | CU-SEAL RING 7,3 X 12 X 0,5 | 6 | — | Check availability | View Details |
| 35 | 50330035007 CYL.BASE GASKET 0,07MM PAPER | CYL.BASE GASKET 0,07MM PAPER | 0 | — | Check availability | View Details |
| 35 | 50330035015 CYLINDER BASE GASKET 0,15MM | CYLINDER BASE GASKET 0,15MM | 0 | — | Check availability | View Details |
| 35 | 50330035020 CYLINDER BASE GASKET 0,20MM | CYLINDER BASE GASKET 0,20MM | 0 | — | Check availability | |
| 35 | 50330035025 CYLINDER BASE GASKET 0,25MM | CYLINDER BASE GASKET 0,25MM | 0 | — | Check availability | |
| 35 | 50330035040 CYLINDER BASE GASKET 0,40MM | CYLINDER BASE GASKET 0,40MM | 0 | — | Check availability | |
| 35 | 50330035050 CYLINDER BASE GASKET 0,50MM | CYLINDER BASE GASKET 0,50MM | 0 | — | Check availability | |
| 35 | 50330035075 CYLINDER BASE GASKET 0,75MM | CYLINDER BASE GASKET 0,75MM | 0 | — | Check availability | |
| 38 | 52330137000 CYL.HEAD SEAL RING 200 2003 | CYL.HEAD SEAL RING 200 2003 | 1 | — | Check availability | |
| 40 | 0015050203 HH COLLAR SCREW M 5X20 WS=8 | HH COLLAR SCREW M 5X20 WS=8 | 6 | — | Check availability | View Details |
| 45 | 50330045000 HH COLLAR NUT M 8 WS=12 | HH COLLAR NUT M 8 WS=12 | 4 | — | Check availability | |
| 46 | 52337046100 INTERMED.GASKET 1,1MM 200 2000 | INTERMED.GASKET 1,1MM 200 2000 | 1 | — | Check availability | |
| 74 | 51005074000 RETAINING PLATE | RETAINING PLATE | 2 | — | Check availability | |
| 77 | 0015060103 HH COLLAR SCREW M 6X10 WS=8 | HH COLLAR SCREW M 6X10 WS=8 | 1 | — | Check availability | View Details |
| 78 | 0603061001 CU-SEAL RING DIN7603-6X10X1 | CU-SEAL RING DIN7603-6X10X1 | 1 | — | Check availability | |
| 79 | 50030079000 CYL. HEAD BOLT M 7X40 WS=10 | CYL. HEAD BOLT M 7X40 WS=10 | 6 | — | Check availability |
