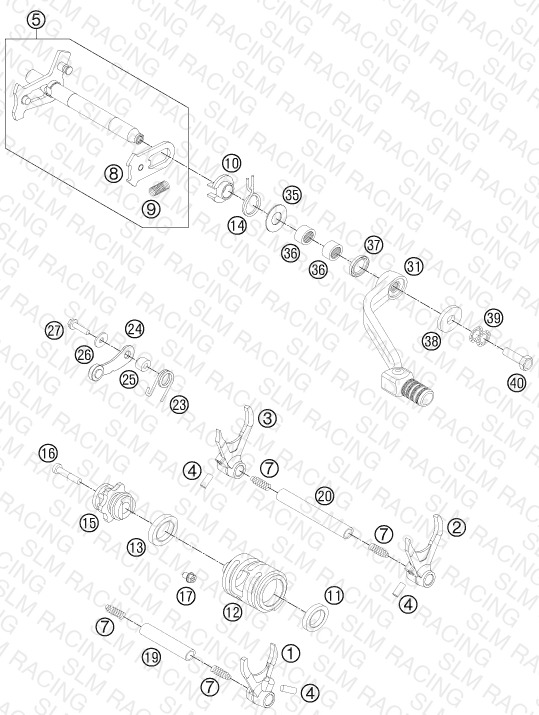

SHIFTING MECHANISM
Parts (30)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 77034001000 SHIFTING FORK 5TH/6TH GEAR 05 | SHIFTING FORK 5TH/6TH GEAR 05 | 1 | $87.11 | Available | 1 |
| 2 | 77034002000 SHIFTING FORK 2ND/3RD GEAR 05 | SHIFTING FORK 2ND/3RD GEAR 05 | 1 | $57.08 | Available | 1 |
| 3 | 77034003000 SHIFTING FORK 1ST/4TH GEAR 05 | SHIFTING FORK 1ST/4TH GEAR 05 | 1 | $88.21 | Available | 1 |
| 4 | 0402061480 NEEDLE ROLLER DIN5402 6X14,8 | NEEDLE ROLLER DIN5402 6X14,8 | 3 | $4.99 | Available | 3 |
| 5 | 77034005044 SHIFTING SHAFT CPL. 05 | SHIFTING SHAFT CPL. 05 | 1 | — | Obsolete | View Details |
| 7 | 58038023200 PRESSURE SPRING 0,9MM | PRESSURE SPRING 0,9MM | 3 | $4.99 | Available | 3 |
| 8 | 54634008044 SLIDING PLATE CPL. | SLIDING PLATE CPL. | 1 | $12.31 | Available | 1 |
| 9 | 56534013100 TENSIONING SPRING 0,8MM | TENSIONING SPRING 0,8MM | 1 | $1.99 | Available | 1 |
| 10 | 54634020000 SPRING GUIDE | SPRING GUIDE | 1 | $7.58 | Available | 1 |
| 11 | 0625069034 BALL BEARING 6903 C4 | BALL BEARING 6903 C4 | 1 | $23.97 | Available | 1 |
| 12 | 77034012000 SHIFT ROLLER 05 | SHIFT ROLLER 05 | 1 | $102.73 | Available | 1 |
| 13 | 0625618050 BALL BEARING 61805 C3 | BALL BEARING 61805 C3 | 1 | $51.69 | Available | 1 |
| 14 | 54634014100 RETURN SPRING 2,2MM '95 | RETURN SPRING 2,2MM '95 | 1 | $7.80 | Available | 1 |
| 15 | 77034015144 SHIFT LOCATING DRUM CPL. 05 | SHIFT LOCATING DRUM CPL. 05 | 1 | — | Obsolete | View Details |
| 16 | 0912060303 AH SCREW DIN0912-M 6X30 | AH SCREW DIN0912-M 6X30 | 4 | $2.99 | Available | 4 |
| 17 | 0025060086 HH collar screw M6x8 TX30 | HH collar screw M6x8 TX30 | 1 | $2.99 | Available | 1 |
| 19 | 54834019000 SHIFT. RAIL MAIN SHAFT 250/300 | SHIFT. RAIL MAIN SHAFT 250/300 | 1 | $15.06 | Available | 1 |
| 20 | 77034019000 SHIFTING MAIN L=93MM 05 | SHIFTING MAIN L=93MM 05 | 1 | $16.49 | Available | 1 |
| 23 | 77034023000 LOCKING LEVER SPRING | LOCKING LEVER SPRING | 1 | $2.99 | Available | 1 |
| 24 | 77034024044 LOCKING LEVER CPL. 08 | LOCKING LEVER CPL. 08 | 1 | $18.91 | Available | 1 |
| 25 | 54634052300 SLEEVE FOR LOCKING LEVER | SLEEVE FOR LOCKING LEVER | 1 | $3.99 | Available | 1 |
| 26 | 0349000050 WASHER DIN7349-5X15X2 | WASHER DIN7349-5X15X2 | 1 | $1.99 | Available | 1 |
| 27 | 0025050206 HH collar screw M5x20 TX30 | HH collar screw M5x20 TX30 | 1 | $2.99 | Available | 1 |
| 31 | 59034031000 SHIFT LEVER CPL.RACING 2000 | SHIFT LEVER CPL.RACING 2000 | 1 | $103.17 | Available | 1 |
| 35 | 54634050000 STOP DISK 14X30X1 | STOP DISK 14X30X1 | 1 | $2.99 | Available | 1 |
| 36 | 54632095000 needle sleeve HK 1412 14x20x12 | needle sleeve HK 1412 14x20x12 | 2 | $8.24 | Available | 2 |
| 37 | 0760142460 radial shaft seal 14x24x6 B | radial shaft seal 14x24x6 B | 1 | $10.88 | Available | 1 |
| 38 | 50232050001 STEEL WASHER 6,4X17X3 | STEEL WASHER 6,4X17X3 | 1 | $6.15 | Available | 1 |
| 39 | 50233041000 Pair of washers M6 NORDLOCK | Pair of washers M6 NORDLOCK | 2 | $4.99 | Available | 2 |
| 40 | 59009062016 SPECIAL SCREW M6X16 WS=8 10.9 | SPECIAL SCREW M6X16 WS=8 10.9 | 4 | $2.99 | Available | 4 |
