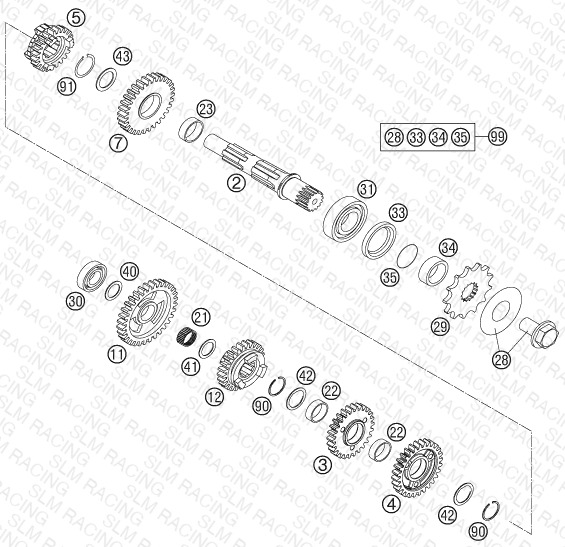

TRANSMISSION II - COUNTERSHAFT
Parts (26)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 2 | 77033010000 COUNTER SHAFT 05 | COUNTER SHAFT 05 | 1 | — | Obsolete | View Details |
| 3 | 77033114000 IDLER G. 4TH 6.28-T ''4B28'' | IDLER G. 4TH 6.28-T ''4B28'' | 1 | — | Obsolete | View Details |
| 4 | 77033113000 IDLER G. 3RD G.29-T ''3B29'' | IDLER G. 3RD G.29-T ''3B29'' | 1 | $162.13 | Out of Stock | Notify Me |
| 5 | 77033116100 SLIDING G. 6TH 6.22-T ''6B26'' | SLIDING G. 6TH 6.22-T ''6B26'' | 1 | $104.82 | Available | 1 |
| 7 | 77033112000 IDLER G. 2ND 6. 33-T ''2B33'' | IDLER G. 2ND 6. 33-T ''2B33'' | 1 | $91.18 | Out of Stock | Notify Me |
| 11 | 77033111000 IDLER G. 1ST G. 33-T ''1B33'' | IDLER G. 1ST G. 33-T ''1B33'' | 1 | $75.12 | Out of Stock | Notify Me |
| 12 | 77033115100 SLIDING G. 5TH G .23-T ''5B23' | SLIDING G. 5TH G .23-T ''5B23' | 1 | $82.16 | Available | 1 |
| 21 | 50033098000 NEEDLE BEARING K20X24X10 | NEEDLE BEARING K20X24X10 | 1 | $14.18 | Available | 1 |
| 22 | 0405222611 NEEDLE BEAR.K 22X26X10 DIVIDED | NEEDLE BEAR.K 22X26X10 DIVIDED | 3 | $13.74 | Available | 3 |
| 23 | 50333023000 IDLER GEAR BUSHING 25X28X9,7 D | IDLER GEAR BUSHING 25X28X9,7 D | 1 | $33.21 | Available | 1 |
| 28 | 59033034044 SCREW 10.9+SPRING WASHER | SCREW 10.9+SPRING WASHER | 1 | $9.23 | Available | 1 |
| 29 | 50033029013 FRONT SPROCKET 13-T | FRONT SPROCKET 13-T | 1 | $36.40 | Available | 1 |
| 29 | 50033029014 FRONT SPROCKET 14-T | FRONT SPROCKET 14-T | — | $36.40 | Available | 1 |
| 29 | 50033029015 FRONT SPROCKET 15-T | FRONT SPROCKET 15-T | — | $31.89 | Available | 1 |
| 30 | 0625060031 BALL BEARING 6003 TN9 C4 | BALL BEARING 6003 TN9 C4 | 1 | $27.60 | Available | 1 |
| 31 | 0625062054 BALL BEARING 6205 C3 NTN | BALL BEARING 6205 C3 NTN | 1 | $24.30 | Available | 1 |
| 33 | 0760324571 SHAFT SEAL RING 32X45X7 BSLNBR | SHAFT SEAL RING 32X45X7 BSLNBR | 1 | $6.15 | Available | 1 |
| 34 | 54633014100 SPACER BUSHING 12MM | SPACER BUSHING 12MM | 1 | $24.63 | Available | 1 |
| 35 | 0770020220 O-RING 25,12X1,78 NBR70 | O-RING 25,12X1,78 NBR70 | 1 | $3.99 | Available | 1 |
| 40 | 56033030000 STOP DISC 17,2X30X1 | STOP DISC 17,2X30X1 | 1 | $4.99 | Available | 1 |
| 41 | 59033080000 Shim 20x31.9x1 | Shim 20x31.9x1 | 4 | $2.41 | Available | 4 |
| 42 | 50333043000 STOP DISC 25,2X32X1 | STOP DISC 25,2X32X1 | 1 | $3.99 | Available | 1 |
| 43 | 0988253510 Shim ring DIN0988-25X35X1 | Shim ring DIN0988-25X35X1 | 1 | $2.99 | Available | 1 |
| 90 | 77033022000 AXIAL-CIRCLIP 25X1,65 | AXIAL-CIRCLIP 25X1,65 | 3 | $2.99 | Available | 3 |
| 91 | 0471250120 CIRCLIP DIN0471-25X1,2 | CIRCLIP DIN0471-25X1,2 | 2 | $2.99 | Available | 2 |
| 99 | 00050000941 COUNTER SHAFT REP.KIT 4 STROKE | COUNTER SHAFT REP.KIT 4 STROKE | — | $61.04 | Available | 1 |
