CLUTCH
Parts (31)

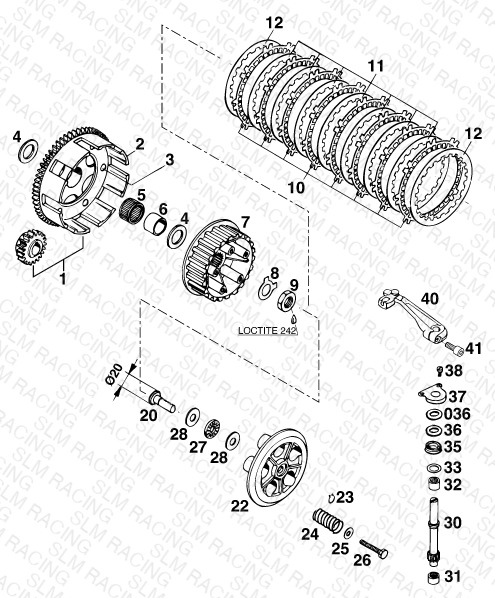

| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 50232001661 OUTER CLUTCH HUB 125 '88-2 | OUTER CLUTCH HUB 125 '88-2 | 1 | — | Obsolete | View Details |
| 2 | 50232001000 OUTER CLUTCH HUB LOOSE | OUTER CLUTCH HUB LOOSE | 1 | — | Obsolete | View Details |
| 3 | 0660050100 RIVET DIN660 5x10 steel | RIVET DIN660 5x10 steel | 6 | — | Obsolete | View Details |
| 4 | 50132010000 STOP DISK 20,2X32X1,5 | STOP DISK 20,2X32X1,5 | 2 | $4.99 | Available | 2 |
| 5 | 50132095000 NEEDLE BEARING K24X28X17 | NEEDLE BEARING K24X28X17 | 1 | — | Obsolete | View Details |
| 6 | 50132096000 * INNER RING 20X24X17 | * INNER RING 20X24X17 | 1 | — | Obsolete | View Details |
| 7 | 50132002200 INNER CLUTCH HUB 2MM | INNER CLUTCH HUB 2MM | 1 | — | Obsolete | View Details |
| 8 | 50132018100 LOCK WASHER | LOCK WASHER | 1 | — | Obsolete | View Details |
| 9 | 0936160155 HEXAGON NUT DIN936 M16x1,5 | HEXAGON NUT DIN936 M16x1,5 | 1 | — | Obsolete | View Details |
| 10 | 50232005300 SINTERED LINING DISC 2MM '96 | SINTERED LINING DISC 2MM '96 | 8 | — | Obsolete | View Details |
| 11 | 50132009100 STEEL DISC 1MM | STEEL DISC 1MM | 7 | — | Obsolete | View Details |
| 12 | 50132009200 STEEL DISC 1,4MM | STEEL DISC 1,4MM | 2 | — | Obsolete | View Details |
| 20 | 50332017000 PUSH BOLT | PUSH BOLT | 1 | — | Obsolete | View Details |
| 22 | 50132003200 PRESSURE CAP | PRESSURE CAP | 1 | — | Obsolete | View Details |
| 23 | 0471100010 CIRCLIP DIN0471-10X1 | CIRCLIP DIN0471-10X1 | 1 | $2.99 | Available | 1 |
| 24 | 50232002000 CLUTCH PRESSURE SPRING 2,6X38 | CLUTCH PRESSURE SPRING 2,6X38 | 6 | — | Obsolete | View Details |
| 25 | 50232050000 WASHER 6,2X18X2 | WASHER 6,2X18X2 | 2 | $6.15 | Available | 2 |
| 26 | 0933060203 HH SCREW DIN0933-M 6X20 | HH SCREW DIN0933-M 6X20 | 2 | $1.99 | Available | 2 |
| 27 | 56032030052 *NEEDLE BEARING LOOSE10X28,3X2 | *NEEDLE BEARING LOOSE10X28,3X2 | 1 | — | Obsolete | View Details |
| 28 | 56032030050 AXIAL WASHER 10,1X23,8X1 | AXIAL WASHER 10,1X23,8X1 | 2 | — | Obsolete | View Details |
| 30 | 50332015000 CLUTCH RELEASE SHAFT 125 '92 | CLUTCH RELEASE SHAFT 125 '92 | 1 | — | Obsolete | View Details |
| 31 | 50232095200 NEEDLE SLEEVE HK 0908 '92 | NEEDLE SLEEVE HK 0908 '92 | 1 | — | Obsolete | View Details |
| 32 | 54637096000 NEEDLE SLEEVE HK 1010 | NEEDLE SLEEVE HK 1010 | 2 | $7.03 | Available | 2 |
| 33 | 50232030050 STOP DISK 10,1X17X1 | STOP DISK 10,1X17X1 | 1 | — | Obsolete | View Details |
| 35 | 50332093000 GROOVE RING 10X20X5 PA 150 | GROOVE RING 10X20X5 PA 150 | 1 | — | Obsolete | View Details |
| 36 | 49033031000 STOP DISK 14,3X20X1 | STOP DISK 14,3X20X1 | 2 | $6.15 | Available | 2 |
| 36 | 49033031200 STOP DISK 14,3X20X2 | STOP DISK 14,3X20X2 | 1 | — | Obsolete | View Details |
| 37 | 50232013000 RETAINING PLATE | RETAINING PLATE | 1 | — | Obsolete | View Details |
| 38 | 0084040083 CYL.HEAD SCREW DIN0084-M 4X8 A | CYL.HEAD SCREW DIN0084-M 4X8 A | 6 | $1.99 | Available | 6 |
| 40 | 50232016200 CLUTCH RELEASE LEVER 125 '93 | CLUTCH RELEASE LEVER 125 '93 | 1 | — | Obsolete | View Details |
| 41 | 0912060163 AH SCREW DIN0912-M 6X16 | AH SCREW DIN0912-M 6X16 | 1 | $1.99 | Available | 1 |
