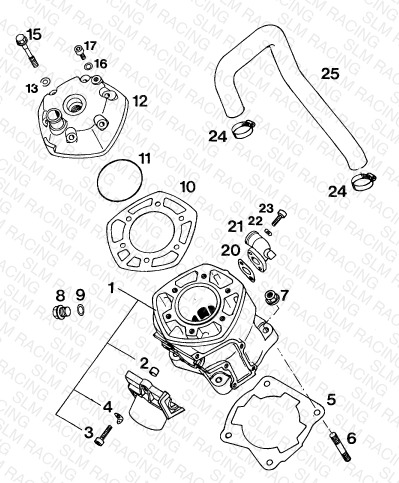

CYLINDER
Parts (27)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 50230005244 CYLINDER CPL.WITH FLANGE '94 | CYLINDER CPL.WITH FLANGE '94 | 1 | — | Check availability | View Details |
| 2 | 49030090000 DOWEL 9,8 X 7 X 10 | DOWEL 9,8 X 7 X 10 | 2 | — | Check availability | View Details |
| 3 | 0912060253 AH SCREW DIN0912-M 6X25 | AH SCREW DIN0912-M 6X25 | 6 | — | Check availability | |
| 4 | 51005074000 RETAINING PLATE | RETAINING PLATE | 2 | — | Check availability | |
| 5 | 50230030005 CYLINDER BASE GASKET 0,05MM | CYLINDER BASE GASKET 0,05MM | — | — | Check availability | View Details |
| 5 | 50230030010 CYLINDER BASE GASKET 0,10MM | CYLINDER BASE GASKET 0,10MM | — | — | Check availability | View Details |
| 5 | 50230030015 CYLINDER BASE GASKET 0,15MM | CYLINDER BASE GASKET 0,15MM | — | — | Check availability | View Details |
| 5 | 50230030030 CYLINDER BASE GASKET 0,30MM | CYLINDER BASE GASKET 0,30MM | — | — | Check availability | View Details |
| 5 | 50230030050 CYLINDER BASE GASKET 0,50MM | CYLINDER BASE GASKET 0,50MM | — | — | Check availability | View Details |
| 5 | 50230030075 CYLINDER BASE GASKET 0,75MM | CYLINDER BASE GASKET 0,75MM | — | — | Check availability | View Details |
| 6 | 50230043000 STUD M8X37 | STUD M8X37 | 4 | — | Check availability | View Details |
| 7 | 49030028000 COLLAR NUT M8 | COLLAR NUT M8 | 2 | — | Check availability | |
| 8 | 54630021000 HH PLUG M10X1 WS13 | HH PLUG M10X1 WS13 | 1 | — | Check availability | |
| 9 | 58038032010 CU-SEAL RING DIN7603-10X14X1 | CU-SEAL RING DIN7603-10X14X1 | 7 | — | Check availability | |
| 10 | 50230036500 CYLINDER HEAD GASKET | CYLINDER HEAD GASKET | 1 | — | Check availability | View Details |
| 11 | 50230095000 SILICON O-RING 60X2 | SILICON O-RING 60X2 | 1 | — | Check availability | View Details |
| 12 | 50230006200 CYLINDER HEAD '94 | CYLINDER HEAD '94 | 1 | — | Check availability | |
| 13 | 50230032010 CU-SEAL RING 7,3 X 12 X 0,5 | CU-SEAL RING 7,3 X 12 X 0,5 | 6 | — | Check availability | View Details |
| 15 | 50030079000 CYL. HEAD BOLT M 7X40 WS=10 | CYL. HEAD BOLT M 7X40 WS=10 | 6 | — | Check availability | |
| 16 | 58036065000 CU-SEAL RING 6 X 10 X 1 | CU-SEAL RING 6 X 10 X 1 | 6 | — | Check availability | |
| 17 | 0912060083 AH collar screw DIN 912 M6x8 | AH collar screw DIN 912 M6x8 | 1 | — | Check availability | |
| 20 | 54435037000 GASKET | GASKET | 1 | — | Check availability | View Details |
| 21 | 50235006000 CONNECTING TUBE 125/IV | CONNECTING TUBE 125/IV | 1 | — | Check availability | View Details |
| 22 | 0137060000 SPRING WASHER DIN0137-B 6 | SPRING WASHER DIN0137-B 6 | 6 | — | Check availability | |
| 23 | 0912060203 AH SCREW DIN0912-M 6X20 | AH SCREW DIN0912-M 6X20 | 1 | — | Check availability | |
| 24 | 10001020000 HOSE CLAMP GEMI 18-29 | HOSE CLAMP GEMI 18-29 | 6 | — | Check availability | View Details |
| 25 | 50235025700 PREFORMED HOSE 18X3,5-90 DG | PREFORMED HOSE 18X3,5-90 DG | 1 | — | Check availability | View Details |
