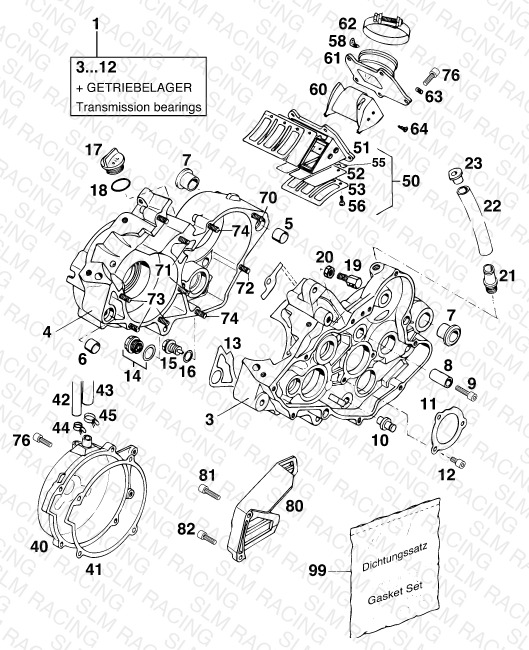

ENGINE CASE
Parts (46)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 50230000844 ENGINE CASE CPL. | ENGINE CASE CPL. | 1 | — | Obsolete | View Details |
| 5 | 56030027000 * DOWEL 17X15,5X12 | * DOWEL 17X15,5X12 | 1 | — | Obsolete | View Details |
| 6 | 51030026100 DOWEL 17 X 13 X 12 | DOWEL 17 X 13 X 12 | 1 | $7.58 | Available | 1 |
| 7 | 50130010000 CRANK CASE BUSH | CRANK CASE BUSH | 2 | — | Obsolete | View Details |
| 8 | 50133025000 BUSHING BOLT | BUSHING BOLT | 1 | — | Obsolete | View Details |
| 9 | 0912060253 AH SCREW DIN0912-M 6X25 | AH SCREW DIN0912-M 6X25 | 6 | $2.99 | Available | 6 |
| 10 | 50234021000 SPRINGBOLT | SPRINGBOLT | 1 | — | Obsolete | View Details |
| 11 | 50230017000 BUSHING RETAINING PLATE '91 | BUSHING RETAINING PLATE '91 | 1 | — | Obsolete | View Details |
| 12 | 0912060103 AH SCREW DIN0912-M 6X10 | AH SCREW DIN0912-M 6X10 | 1 | $1.99 | Available | 1 |
| 13 | 50230039000 CASE GASKET | CASE GASKET | 1 | — | Obsolete | View Details |
| 14 | 49030095000 LENS TYPE GN 540 | LENS TYPE GN 540 | 1 | $16.38 | Available | 1 |
| 15 | 58030021000 OILDRAIN PLUG W.MAG. M 12X1,5 | OILDRAIN PLUG W.MAG. M 12X1,5 | 1 | $13.30 | Available | 1 |
| 16 | 58038022000 CU-seal ring DIN7603-12X18X1.5 | CU-seal ring DIN7603-12X18X1.5 | 1 | $2.99 | Available | 1 |
| 17 | 58030020000 PLUG M 24X3 | PLUG M 24X3 | 1 | $6.15 | Available | 1 |
| 18 | 0770160030 O-RING 16,00X3,00 NBR 70 | O-RING 16,00X3,00 NBR 70 | 1 | $2.99 | Available | 1 |
| 19 | 56032019000 * CABLE BEARING WS13 | * CABLE BEARING WS13 | 1 | — | Obsolete | View Details |
| 20 | 0936080003 HEXAGON NUT DIN0936-M 8 | HEXAGON NUT DIN0936-M 8 | 1 | — | Obsolete | View Details |
| 21 | 56530022000 BLEEDER FLANGE D=10MM 495/IV | BLEEDER FLANGE D=10MM 495/IV | 1 | — | Obsolete | View Details |
| 22 | 54307018001 HOSE 12X16 PER METER | HOSE 12X16 PER METER | — | — | Obsolete | View Details |
| 23 | 44106018000 PLASTIC CAP | PLASTIC CAP | 1 | — | Obsolete | View Details |
| 40 | 50230002100 IGNITION CASE COVER ALU '89 | IGNITION CASE COVER ALU '89 | 1 | — | Obsolete | View Details |
| 41 | 50230040000 IGNITION COVER GASKET | IGNITION COVER GASKET | 1 | — | Obsolete | View Details |
| 42 | 58031005001 BREATHER TUBE GI 8x2 /METER | BREATHER TUBE GI 8x2 /METER | — | — | Obsolete | View Details |
| 43 | 57005020001 HOSE 10X14 PER METER | HOSE 10X14 PER METER | — | $18.69 | Available | 1 |
| 44 | 50231005000 HOSE CLAMP YDNAC 10119 11MM | HOSE CLAMP YDNAC 10119 11MM | 2 | $2.99 | Available | 2 |
| 45 | 58031005100 | 1 | — | Obsolete | View Details | |
| 50 | 50230051044 REED VALVE CPL | REED VALVE CPL | 1 | — | Obsolete | View Details |
| 51 | 54230051000 REED VALVE CASE | REED VALVE CASE | 1 | — | Obsolete | View Details |
| 52 | 50230052000 REED VALVE CARBON 125 | REED VALVE CARBON 125 | 2 | — | Obsolete | View Details |
| 53 | 54630053000 STOP PLATE TOP | STOP PLATE TOP | 2 | — | Obsolete | View Details |
| 55 | 54230056000 PAPER STRIP | PAPER STRIP | 2 | — | Obsolete | View Details |
| 56 | 0084040083 CYL.HEAD SCREW DIN0084-M 4X8 A | CYL.HEAD SCREW DIN0084-M 4X8 A | 6 | $1.99 | Available | 6 |
| 58 | 51005074000 RETAINING PLATE | RETAINING PLATE | 2 | $3.99 | Available | 2 |
| 60 | 50230054100 * VELOCITY INSERT 125 '88 | * VELOCITY INSERT 125 '88 | 1 | — | Obsolete | View Details |
| 61 | 50230050000 INTAKE FLANGE | INTAKE FLANGE | 1 | — | Obsolete | View Details |
| 62 | 54330061000 Hose clip GEMI 52mm | Hose clip GEMI 52mm | 1 | $8.79 | Available | 1 |
| 63 | 0137060000 SPRING WASHER DIN0137-B 6 | SPRING WASHER DIN0137-B 6 | 6 | — | Obsolete | View Details |
| 64 | 0983420132 | 4 | — | Obsolete | View Details | |
| 70 | 0912060653 SHCS DIN 912 M6x65 | SHCS DIN 912 M6x65 | 1 | $2.99 | Available | 1 |
| 71 | 0912060603 AH SCREW DIN0921-M 6X60 | AH SCREW DIN0921-M 6X60 | 1 | — | Obsolete | View Details |
| 72 | 0912060553 AH SCREW DIN0912-M 6X55 | AH SCREW DIN0912-M 6X55 | 2 | $3.99 | Available | 2 |
| 73 | 0912060503 AH SCREW DIN0912-M 6X50 | AH SCREW DIN0912-M 6X50 | 5 | — | Obsolete | View Details |
| 74 | 0912060303 AH SCREW DIN0912-M 6X30 | AH SCREW DIN0912-M 6X30 | 4 | $2.99 | Available | 4 |
| 76 | 0912060203 AH SCREW DIN0912-M 6X20 | AH SCREW DIN0912-M 6X20 | 1 | $2.99 | Available | 1 |
| 80 | 54530060000 CHAIN GUARD FRONT | CHAIN GUARD FRONT | 1 | — | Obsolete | View Details |
| 99 | 50230100000 GASKET SET 125 '87-'96 | GASKET SET 125 '87-'96 | 1 | — | Obsolete | View Details |
