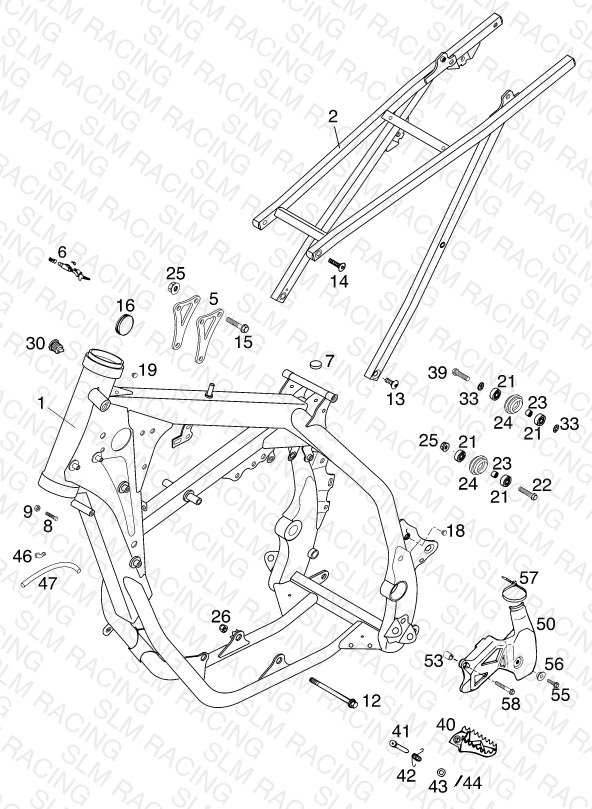

FRAME
Parts (36)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 50303001200 FRAME 125/200 MXC,EXC ''C0'' | FRAME 125/200 MXC,EXC ''C0'' | 1 | — | Obsolete | View Details |
| 2 | 50303002044 SUB FRAME CPL.ALU 125-380 98 | SUB FRAME CPL.ALU 125-380 98 | 1 | — | Obsolete | View Details |
| 5 | 50303013000 REINFORCING BRACKET 125 '98 | REINFORCING BRACKET 125 '98 | 2 | — | Obsolete | View Details |
| 6 | 71003007000 STEERING HEAD LOCK CPL. ZADI | STEERING HEAD LOCK CPL. ZADI | 1 | $37.72 | Available | 1 |
| 7 | 50307020000 RUBBER BUFFER FOR TANK '98 | RUBBER BUFFER FOR TANK '98 | 2 | $4.99 | Available | 2 |
| 8 | 59001037000 SPECIAL SCREW M8X26 WS=10 | SPECIAL SCREW M8X26 WS=10 | 2 | $3.99 | Available | 2 |
| 9 | 0934080003 Hexagon nut DIN934 M8 | Hexagon nut DIN934 M8 | 2 | $2.99 | Available | 2 |
| 12 | 54603013000 engine brac.scr. M10x105 WS13 | engine brac.scr. M10x105 WS13 | 2 | $14.29 | Available | 2 |
| 13 | 54610052000 SPROCKET SCREW-AH M8X20 WS=6 | SPROCKET SCREW-AH M8X20 WS=6 | 2 | $2.99 | Available | 2 |
| 14 | 54510052100 SPROCKET SCREW-AH M8X26 WS=6 | SPROCKET SCREW-AH M8X26 WS=6 | 6 | $3.99 | Available | 6 |
| 15 | 56530079000 HH COLLAR SCREW M 8X44 WS13 | HH COLLAR SCREW M 8X44 WS13 | 3 | $3.99 | Available | 3 |
| 16 | 54606004000 PLUG 37MM | PLUG 37MM | 2 | $2.99 | Available | 2 |
| 18 | 54403135000 PLASTIC CAP SFL10 | PLASTIC CAP SFL10 | 1 | $2.99 | Available | 1 |
| 19 | 36111021000 PLUG | PLUG | 1 | — | Obsolete | View Details |
| 21 | 0625006087 Grooved ball bearing 608 2RS C | Grooved ball bearing 608 2RS C | 2 | $25.18 | Available | 2 |
| 22 | 0015080353 HH COLLAR SCREW M 8X35 WS=10 | HH COLLAR SCREW M 8X35 WS=10 | 2 | $4.83 | Available | 2 |
| 23 | 74003021000 BUSHING 8.2 X 12 X 6 | BUSHING 8.2 X 12 X 6 | 1 | $3.99 | Available | 1 |
| 24 | 52303053000 CHAIN ROLL D=30MM 125-380 '99 | CHAIN ROLL D=30MM 125-380 '99 | 2 | $8.13 | Available | 2 |
| 25 | 54310086200 Self locking nut M8 10.9 | Self locking nut M8 10.9 | 3 | $3.99 | Available | 3 |
| 26 | 54310086100 SELF LOCKING NUT M10 CU WS=14 | SELF LOCKING NUT M10 CU WS=14 | 2 | $2.99 | Available | 2 |
| 30 | 42007049000 PLASTIC CAP | PLASTIC CAP | — | — | Obsolete | View Details |
| 33 | 36003014000 LOCK WASHER 8MM | LOCK WASHER 8MM | 2 | $2.99 | Available | 2 |
| 39 | 0015080303 HH COLLAR SCREW M 8X30 WS=10 | HH COLLAR SCREW M 8X30 WS=10 | 2 | $3.62 | Available | 2 |
| 40 | 59003040050 FOOT PED L/S EXC SILVER 00 | FOOT PED L/S EXC SILVER 00 | 1 | $51.58 | Available | 1 |
| 41 | 54603044000 BOLT FOR FOOTREST 9,8 X 50 | BOLT FOR FOOTREST 9,8 X 50 | 2 | $14.62 | Available | 2 |
| 42 | 54603041000 FOOTREST SPRING L/S & R/S | FOOTREST SPRING L/S & R/S | 2 | $6.15 | Available | 2 |
| 43 | 0125100003 washer DIN 125 A 10.5 | washer DIN 125 A 10.5 | 2 | $2.99 | Available | 2 |
| 44 | 0094032253 PIN DIN0094-3,2X25 STEEL | PIN DIN0094-3,2X25 STEEL | 2 | $1.99 | Available | 2 |
| 46 | 50303089000 ANGLE PIECE '97 | ANGLE PIECE '97 | 1 | $6.15 | Available | 1 |
| 47 | 55007016001 PVC-HOSE 7X10 PER METER | PVC-HOSE 7X10 PER METER | — | $7.14 | Available | 1 |
| 50 | 54607061000 SPROCKET COVER | SPROCKET COVER | 1 | — | Obsolete | View Details |
| 53 | 54613038150 BUSHING 6,5X8X11 | BUSHING 6,5X8X11 | 2 | $4.99 | Available | 2 |
| 55 | 0015060203 HH COLLAR SCREW M 6X20 WS=8 | HH COLLAR SCREW M 6X20 WS=8 | 6 | $3.99 | Available | 6 |
| 56 | 50308053000 BUSH FOR SPOILER 6X11X16X7,5 | BUSH FOR SPOILER 6X11X16X7,5 | 1 | $6.70 | Available | 1 |
| 57 | 44011076200 Cable tie 200/4.6mm black | Cable tie 200/4.6mm black | 1 | $1.99 | Available | 1 |
| 58 | 0015060403 HH COLLAR SCREW M 6X40 WS=8 | HH COLLAR SCREW M 6X40 WS=8 | 1 | $3.99 | Available | 1 |
