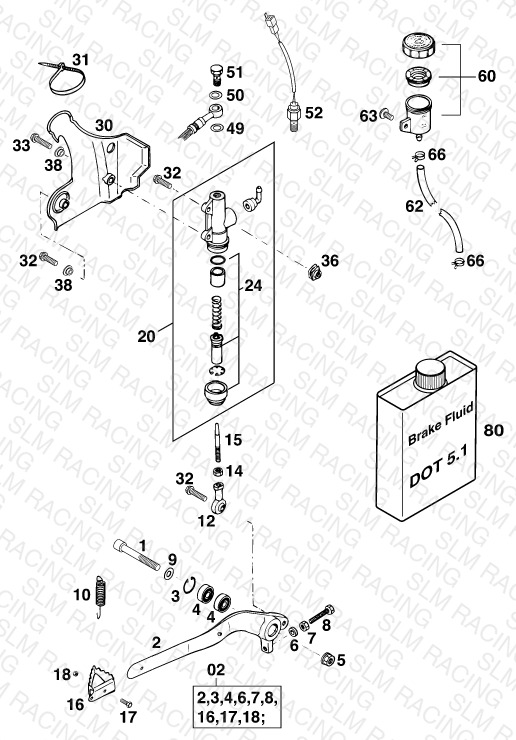

REAR BRAKE CONTROL
Parts (31)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 0912080603 AH SCREW DIN0912-M 8X60 | AH SCREW DIN0912-M 8X60 | 1 | — | Obsolete | View Details |
| 3 | 0472022100 CIRCLIP DIN0472-22X1 | CIRCLIP DIN0472-22X1 | 1 | $2.99 | Available | 1 |
| 4 | 0625006087 Grooved ball bearing 608 2RS C | Grooved ball bearing 608 2RS C | 2 | $25.18 | Available | 2 |
| 5 | 54310086200 Self locking nut M8 10.9 | Self locking nut M8 10.9 | 3 | $3.99 | Available | 3 |
| 6 | 12011016000 WASHER 6 X 12 X 3 | WASHER 6 X 12 X 3 | 1 | $1.99 | Available | 1 |
| 7 | 0934060003 Hex. nut DIN 934 M6 | Hex. nut DIN 934 M6 | 1 | $1.99 | Available | 1 |
| 8 | 0933060353 HH SCREW DIN0933-M 6X35 | HH SCREW DIN0933-M 6X35 | 4 | $1.99 | Available | 4 |
| 9 | 0125080003 washer DIN 125 A -8.4 | washer DIN 125 A -8.4 | 1 | $1.99 | Available | 1 |
| 10 | 54603062000 RETURN SPRING FOR BRAKELEVER | RETURN SPRING FOR BRAKELEVER | 1 | $7.69 | Available | 1 |
| 12 | 54603069000 SWIVEL HEAD M6 FOOT BRAKE LEV. | SWIVEL HEAD M6 FOOT BRAKE LEV. | 1 | $43.77 | Available | 1 |
| 15 | 54603068000 PRESSURE ROD ALU 250 '90 | PRESSURE ROD ALU 250 '90 | 1 | $7.47 | Available | 1 |
| 16 | 54603060150 STEP PLATE FOR BRAKE LEVER | STEP PLATE FOR BRAKE LEVER STEP PLATE SMALL | 1 | — | Obsolete | View Details |
| 17 | 0933050163 HH SCREW DIN0933-M 5X16 | HH SCREW DIN0933-M 5X16 | 2 | $1.99 | Available | 2 |
| 18 | 0985050003 Self locking nut DIN 985 M5 | Self locking nut DIN 985 M5 | 2 | $2.99 | Available | 2 |
| 20 | 50313060000 FOOTBRAKE CYLINDER D=12MM 2000 | FOOTBRAKE CYLINDER D=12MM 2000 | 1 | — | Obsolete | View Details |
| 24 | 50313061000 REP. KIT PISTON 12MM 2000 | REP. KIT PISTON 12MM 2000 | 1 | $40.91 | Available | 1 |
| 30 | 54613038100 BRAKECYL.PROTECT.125-380 2000 | BRAKECYL.PROTECT.125-380 2000 | 1 | — | Obsolete | View Details |
| 31 | 44011076200 Cable tie 200/4.6mm black | Cable tie 200/4.6mm black | 1 | $1.99 | Available | 1 |
| 32 | 0015060203 HH COLLAR SCREW M 6X20 WS=8 | HH COLLAR SCREW M 6X20 WS=8 | 6 | $3.99 | Available | 6 |
| 33 | 0015060253 HH COLLAR SCREW M 6X25 WS=8 | HH COLLAR SCREW M 6X25 WS=8 | 5 | $3.99 | Available | 5 |
| 36 | 50235033300 SNAP-NUT HOLDER M6 KP142 | SNAP-NUT HOLDER M6 KP142 | 2 | $4.99 | Available | 2 |
| 38 | 50308053000 BUSH FOR SPOILER 6X11X16X7,5 | BUSH FOR SPOILER 6X11X16X7,5 | 1 | $6.70 | Available | 1 |
| 49 | 42013026000 CU-SEAL RING DIN7603-10X16X1,5 | CU-SEAL RING DIN7603-10X16X1,5 | 2 | — | Obsolete | View Details |
| 50 | 42013226000 CU-SEAL RING DIN7603-10X16X1 | CU-SEAL RING DIN7603-10X16X1 | 1 | $2.99 | Available | 1 |
| 51 | 50213025000 HOLLOW SCREW M10X1X19 | HOLLOW SCREW M10X1X19 | 1 | $7.69 | Available | 1 |
| 52 | 50311051100 BRAKE LIGHT SWITCH REAR '98 | BRAKE LIGHT SWITCH REAR '98 | 1 | $43.44 | Available | 1 |
| 60 | 54513030044 BRAKE FLUID RESERVOIR '89 | BRAKE FLUID RESERVOIR '89 | 1 | $24.19 | Available | 1 |
| 62 | 58007016101 HOSE FOR RESERVOIR 6X1,5 | HOSE FOR RESERVOIR 6X1,5 | — | $19.24 | Available | 1 |
| 63 | 0014060103 HH COLLAR SCREW M 6X10 WS=8 | HH COLLAR SCREW M 6X10 WS=8 | 2 | $3.99 | Available | 2 |
| 66 | 58007017000 YDNAC-clamp 10101 (10.4MM) | YDNAC-clamp 10101 (10.4MM) | 2 | $3.99 | Available | 2 |
| 80 | 306054 BRAKE FLUID DOT 4.0 | BRAKE FLUID DOT 4.0 | 1 | — | Obsolete | View Details |
