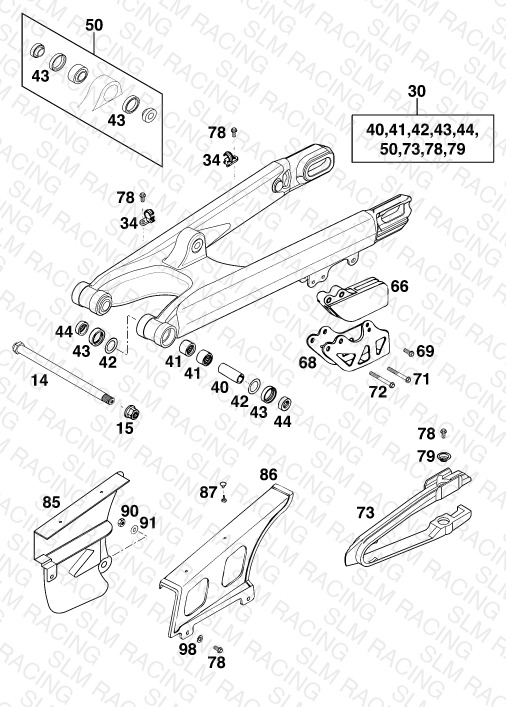

SWING ARM
Parts (21)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 14 | 50303014000 SWINGARM BOLT 14X252 WS=22 | SWINGARM BOLT 14X252 WS=22 | 1 | — | Obsolete | View Details |
| 15 | 54603015000 Self locking nut M14x1.5 WS19 | Self locking nut M14x1.5 WS19 | 1 | $6.48 | Available | 1 |
| 30 | 50304030244 SWINGARM CPL. PDS 2T 20 | SWINGARM CPL. PDS 2T 20 | 1 | — | Obsolete | View Details |
| 34 | 54611076100 RETAIN.CLAMP FOR BRAKE HOSE'96 | RETAIN.CLAMP FOR BRAKE HOSE'96 | 2 | $2.99 | Available | 2 |
| 40 | 54603081000 Bushing sleeve 15x20x48 | Bushing sleeve 15x20x48 | 2 | $29.14 | Available | 2 |
| 41 | 54603097000 Needle bushing HK 2016 / 20x26 | Needle bushing HK 2016 / 20x26 | 4 | $17.70 | Available | 4 |
| 42 | 54603036000 STOP DISK 22,2X31,7X1 | STOP DISK 22,2X31,7X1 | 2 | $3.62 | Available | 2 |
| 43 | 0760253270 radial shaft seal 25x32x7 | radial shaft seal 25x32x7 | 4 | $7.80 | Available | 4 |
| 44 | 54603090000 BUCKET F.SHAFTSEALRING 15X25X9 | BUCKET F.SHAFTSEALRING 15X25X9 | 4 | $14.62 | Available | 4 |
| 50 | 50304090044 PIVOT BEARING+BUSH. PDS '99 | PIVOT BEARING+BUSH. PDS '99 | 1 | $76.11 | Available | 1 |
| 66 | 54607066100 CHAIN GUIDE REAR '94 | CHAIN GUIDE REAR '94 | 1 | $33.65 | Available | 1 |
| 68 | 54607070100 RETAINING PLATE | RETAINING PLATE | 1 | — | Obsolete | View Details |
| 69 | 0015060163 HH COLLAR SCREW M 6X16 WS=8 | HH COLLAR SCREW M 6X16 WS=8 | 3 | $3.99 | Available | 3 |
| 71 | 0015060503 HH COLLAR SCREW M 6X50 WS=8 | HH COLLAR SCREW M 6X50 WS=8 | 6 | $3.99 | Available | 6 |
| 72 | 0015060553 HH COLLAR SCREW M 6X55 WS=8 | HH COLLAR SCREW M 6X55 WS=8 | 5 | — | Obsolete | View Details |
| 73 | 50304066000 CHAIN GUARD '97 | CHAIN GUARD '97 | 1 | $30.02 | Available | 1 |
| 78 | 0009050103 SPECIAL SCREW M 5,0X10 | SPECIAL SCREW M 5,0X10 | 2 | $2.99 | Available | 2 |
| 79 | 72210079000 BUCKET | BUCKET | 2 | $3.99 | Available | 2 |
| 85 | 50304060100 CHAIN GUARD SMALL EXC 2000 | CHAIN GUARD SMALL EXC 2000 | 1 | — | Obsolete | View Details |
| 90 | 0985060003 Self lock. nut DIN985-M6-A2 | Self lock. nut DIN985-M6-A2 | 1 | $2.99 | Available | 1 |
| 91 | 0021060003 Washer DIN9021-A 6.4 | Washer DIN9021-A 6.4 | 2 | $2.99 | Available | 2 |
