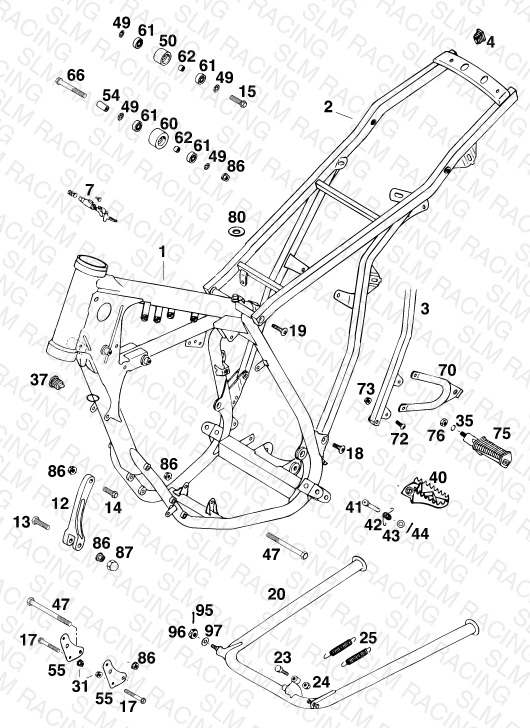

FRAME
Parts (43)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 50203001900 * FRAME 125 SX '94 | * FRAME 125 SX '94 | 1 | — | Obsolete | View Details |
| 1 | 5020340180019 * FRAME 125 EXC,EGS '93 | * FRAME 125 EXC,EGS '93 | 1 | — | Obsolete | View Details |
| 1 | 50203401900 FRAME 125 EXC/EGS '94 | FRAME 125 EXC/EGS '94 | 1 | — | Obsolete | View Details |
| 2 | 50203002800 SUB FRAME ALU SX | SUB FRAME ALU SX | 1 | — | Obsolete | View Details |
| 2 | 50203402900 SUB FRAME STEEL EXC/EGS '94 | SUB FRAME STEEL EXC/EGS '94 | 1 | — | Obsolete | View Details |
| 3 | 50203502900 SUB FRAME STEEL EXC/EGS | SUB FRAME STEEL EXC/EGS | — | — | Obsolete | View Details |
| 4 | 58303002090 PLUG 12 X 17 MM | PLUG 12 X 17 MM | 2 | — | Obsolete | View Details |
| 7 | 44003007000 STEERING HEAD LOCK | STEERING HEAD LOCK | 1 | — | Obsolete | View Details |
| 12 | 50203045700 ENGINE BRACE 125 '91 | ENGINE BRACE 125 '91 | 1 | — | Obsolete | View Details |
| 13 | 0931080303 HH SCREW DIN931 M8x30 | HH SCREW DIN931 M8x30 | 1 | — | Obsolete | View Details |
| 14 | 0933080253 HH SCREW DIN0933-M 8X25 | HH SCREW DIN0933-M 8X25 | 2 | $2.99 | Available | 2 |
| 15 | 0933080303 HH SCREW DIN0933-M 8X30 | HH SCREW DIN0933-M 8X30 | 2 | $2.99 | Available | 2 |
| 17 | 0912060453 AH SCREW DIN0912-M 6X45 | AH SCREW DIN0912-M 6X45 | 4 | $2.99 | Available | 4 |
| 18 | 54610052000 SPROCKET SCREW-AH M8X20 WS=6 | SPROCKET SCREW-AH M8X20 WS=6 | 2 | $2.99 | Available | 2 |
| 19 | 54510052000 SPROCKET SCREW-AH M 8X26 | SPROCKET SCREW-AH M 8X26 | 6 | — | Obsolete | View Details |
| 20 | 5020302210019 CENTRE STAND 125 '93 | CENTRE STAND 125 '93 | 1 | — | Obsolete | View Details |
| 24 | 0934080003 Hexagon nut DIN934 M8 | Hexagon nut DIN934 M8 | 2 | $2.99 | Available | 2 |
| 25 | 10003021000 STAND SPRING SHORT | STAND SPRING SHORT | 2 | $11.10 | Available | 2 |
| 31 | 56509064000 SELF LOCKING NUT M6 | SELF LOCKING NUT M6 | 1 | — | Obsolete | View Details |
| 40 | 5460304000019 FOOT REST L/S '93 | FOOT REST L/S '93 | 1 | — | Obsolete | View Details |
| 41 | 54603044000 BOLT FOR FOOTREST 9,8 X 50 | BOLT FOR FOOTREST 9,8 X 50 | 2 | $14.62 | Available | 2 |
| 42 | 54603041000 FOOTREST SPRING L/S & R/S | FOOTREST SPRING L/S & R/S | 2 | $6.15 | Available | 2 |
| 43 | 0125100003 washer DIN 125 A 10.5 | washer DIN 125 A 10.5 | 2 | $2.99 | Available | 2 |
| 44 | 0094032253 PIN DIN0094-3,2X25 STEEL | PIN DIN0094-3,2X25 STEEL | 2 | $1.99 | Available | 2 |
| 47 | 0931080903 HH SCREW DIN931 M8x90 | HH SCREW DIN931 M8x90 | 2 | — | Obsolete | View Details |
| 49 | 36003014000 LOCK WASHER 8MM | LOCK WASHER 8MM | 2 | $2.99 | Available | 2 |
| 50 | 50203053000 CHAIN ROLL D=30MM | CHAIN ROLL D=30MM | 1 | $7.91 | Available | 1 |
| 54 | 50203053101 BUSHING 8X12X26 CHAIN ROLL | BUSHING 8X12X26 CHAIN ROLL | 1 | — | Obsolete | View Details |
| 55 | 50203055000 * ENGINE SUPPORT STEEL '87 | * ENGINE SUPPORT STEEL '87 | 2 | — | Obsolete | View Details |
| 60 | 50203053100 CHAIN ROLL D=35MM | CHAIN ROLL D=35MM | 1 | — | Obsolete | View Details |
| 61 | 0625006087 Grooved ball bearing 608 2RS C | Grooved ball bearing 608 2RS C | 2 | $25.18 | Available | 2 |
| 62 | 74003021000 BUSHING 8.2 X 12 X 6 | BUSHING 8.2 X 12 X 6 | 1 | $3.99 | Available | 1 |
| 66 | 0912080703 * AH SCREW DIN912 M8x70 | * AH SCREW DIN912 M8x70 | 1 | — | Obsolete | View Details |
| 70 | 58303003000 FOOTREST BRACKET REAR L/S | FOOTREST BRACKET REAR L/S | — | — | Obsolete | View Details |
| 72 | 0107080203 AH OVAL H.SCREW DIN0170-M 8X20 | AH OVAL H.SCREW DIN0170-M 8X20 | 2 | $2.99 | Available | 2 |
| 73 | 54310086000 | 2 | — | Obsolete | View Details | |
| 75 | 49003250000 FOOTREST REAR L/S CPL. | FOOTREST REAR L/S CPL. | 1 | — | Obsolete | View Details |
| 76 | 0934100003 HEXAGON NUT DIN0934-M10 | HEXAGON NUT DIN0934-M10 | 2 | — | Obsolete | View Details |
| 80 | 51005067100 INSOLATE WASHER 12X28X3 | INSOLATE WASHER 12X28X3 | 1 | $2.99 | Available | 1 |
| 87 | 16001036013 * HEX NUT COVER | * HEX NUT COVER | 1 | — | Obsolete | View Details |
| 95 | 0094020163 PIN DIN0094-2,0X16 | PIN DIN0094-2,0X16 | 1 | — | Obsolete | View Details |
| 96 | 0937080003 | 1 | — | Obsolete | View Details | |
| 97 | 0125080003 washer DIN 125 A -8.4 | washer DIN 125 A -8.4 | 1 | $1.99 | Available | 1 |
