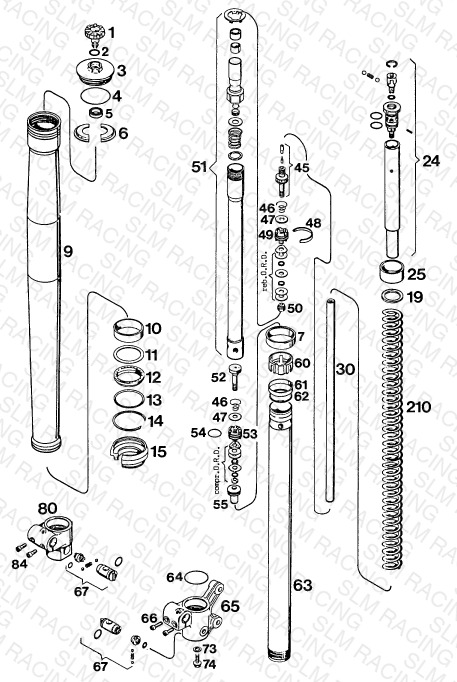

FRONT FORK DISASSEMBLED
Parts (46)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 54501038000 ADJUSTMENT KNOB REBOUND DAMP. | ADJUSTMENT KNOB REBOUND DAMP. | 2 | — | Obsolete | View Details |
| 2 | 54501039000 % O-RING 12X3 | % O-RING 12X3 | 2 | — | Obsolete | View Details |
| 3 | 54501036000 * SCREW CAP M 49X1,5 | * SCREW CAP M 49X1,5 | 2 | — | Obsolete | View Details |
| 4 | 0770430030 O-RING 43,00X3,00 | O-RING 43,00X3,00 | 2 | — | Obsolete | View Details |
| 5 | 54501051000 * RUBBER GASKET 14,1X22X4 | * RUBBER GASKET 14,1X22X4 | 2 | — | Obsolete | View Details |
| 6 | 54501050000 % KEY HALF | % KEY HALF | 4 | — | Obsolete | View Details |
| 7 | 54501052000 BUSHING 47X21 | BUSHING 47X21 | 2 | — | Obsolete | View Details |
| 9 | 50201404500 * OUTER TUBE 54/57X606 '93 | * OUTER TUBE 54/57X606 '93 | 2 | — | Obsolete | View Details |
| 10 | 54501026300 GUIDE BUSHING LOWER | GUIDE BUSHING LOWER | 2 | — | Obsolete | View Details |
| 11 | 56401027000 RING 42X49,2X1,5 | RING 42X49,2X1,5 | 2 | — | Obsolete | View Details |
| 12 | 56401005000 SEAL SHAFT RING 40X49,5X7 | SEAL SHAFT RING 40X49,5X7 | 2 | — | Obsolete | View Details |
| 13 | 56401127000 RING 49,5X45X1 | RING 49,5X45X1 | 2 | — | Obsolete | View Details |
| 14 | 56401029000 SEEGER LOCK RING SB50 | SEEGER LOCK RING SB50 | 2 | — | Obsolete | View Details |
| 15 | 56401025100 DUST BELLOWS D40 ' | DUST BELLOWS D40 ' | 2 | — | Obsolete | View Details |
| 19 | 54501019000 WASHER 24,5X34X2 | WASHER 24,5X34X2 | 2 | — | Obsolete | View Details |
| 24 | 54501057044 * HYDROSTOP CPL L=227,5MM | * HYDROSTOP CPL L=227,5MM | 2 | — | Obsolete | View Details |
| 25 | 56401022000 * PRELOAD BUSHING 25X34X5 | * PRELOAD BUSHING 25X34X5 | — | — | Obsolete | View Details |
| 25 | 56401022100 % PRELOAD BUSHING 25X34X10 | % PRELOAD BUSHING 25X34X10 | 2 | — | Obsolete | View Details |
| 25 | 56401022200 * PRELOAD BUSHING 25X34X2,5 | * PRELOAD BUSHING 25X34X2,5 | — | — | Obsolete | View Details |
| 30 | 54501010000 * SPINDLE 12X551 | * SPINDLE 12X551 | 2 | — | Obsolete | View Details |
| 45 | 54501067044 * TAPER REBOUND DAMPING CPL | * TAPER REBOUND DAMPING CPL | 2 | — | Obsolete | View Details |
| 46 | 54501068000 % SPRING | % SPRING | 4 | — | Obsolete | View Details |
| 48 | 54501070000 * PISTON RING 4X1X62 | * PISTON RING 4X1X62 | 2 | — | Obsolete | View Details |
| 49 | 54501071000 * PISTON REBOUND DAMPING | * PISTON REBOUND DAMPING | 2 | — | Obsolete | View Details |
| 50 | 54501072000 * HEX.NUT M6X0,5 | * HEX.NUT M6X0,5 | 2 | — | Obsolete | View Details |
| 51 | 50201473544 * DAMPING TUBE CPL. L=408MM '9 | * DAMPING TUBE CPL. L=408MM '9 | 2 | — | Obsolete | View Details |
| 52 | 54501074100 * SPECIAL SCREW M6X0,5 D2 | * SPECIAL SCREW M6X0,5 D2 | 2 | — | Obsolete | View Details |
| 53 | 54501075000 * PISTON COMPRESSION DAMPING | * PISTON COMPRESSION DAMPING | 2 | — | Obsolete | View Details |
| 54 | 0770020160 O-RING 15,60X1,78 | O-RING 15,60X1,78 | 2 | — | Obsolete | View Details |
| 55 | 54501076000 % TAPER M22,3X1 COMPRESSION DA | % TAPER M22,3X1 COMPRESSION DA | 2 | — | Obsolete | View Details |
| 60 | 54501077000 BUSHING | BUSHING | 2 | — | Obsolete | View Details |
| 61 | 54501045300 BEARING RING 42,8X8 | BEARING RING 42,8X8 | 2 | — | Obsolete | View Details |
| 62 | 54501046000 % RING 39X42X1 | % RING 39X42X1 | 2 | — | Obsolete | View Details |
| 63 | 54501003300 % INNER TUBE L=625MM "0618Q712 | % INNER TUBE L=625MM "0618Q712 | 2 | — | Obsolete | View Details |
| 64 | 0770380020 O-RING 38,00X2,00 NBR 70 SH | O-RING 38,00X2,00 NBR 70 SH | 3 | $3.99 | Available | 3 |
| 65 | 54501206100 % FORK LEG AX.PASSAG. D17 BREM | % FORK LEG AX.PASSAG. D17 BREM | 1 | — | Obsolete | View Details |
| 66 | 0912070253 AH SCREW DIN912 M7x25 | AH SCREW DIN912 M7x25 | 2 | — | Obsolete | View Details |
| 67 | 54501078144 % ADJUSTMENT SCREW COMP.DAMPIN | % ADJUSTMENT SCREW COMP.DAMPIN | 2 | — | Obsolete | View Details |
| 73 | 54501081000 SEAL RING 8X12X1,5 | SEAL RING 8X12X1,5 | 2 | — | Obsolete | View Details |
| 74 | 54501082000 COLLAR SCREW M8X20 | COLLAR SCREW M8X20 | 2 | — | Obsolete | View Details |
| 80 | 54501106100 % FORK LEG AXLE PASSAGE R/S D2 | % FORK LEG AXLE PASSAGE R/S D2 | 1 | — | Obsolete | View Details |
| 210 | 54501021380 * SPRING 530 MM 3,8 KG | * SPRING 530 MM 3,8 KG | — | — | Obsolete | View Details |
| 210 | 54501021405 * SPRING 530 MM / 4,0 KG | * SPRING 530 MM / 4,0 KG | — | — | Obsolete | View Details |
| 210 | 54501021420 * SPRING 543 MM / 4,2 KG | * SPRING 543 MM / 4,2 KG | — | — | Obsolete | View Details |
| 210 | 54501021440 SPRING 530 MM / 4,4 KG | SPRING 530 MM / 4,4 KG | 2 | — | Obsolete | View Details |
| 210 | 54501021460 * SPRING 530 MM / 4,6 KG | * SPRING 530 MM / 4,6 KG | — | — | Obsolete | View Details |
