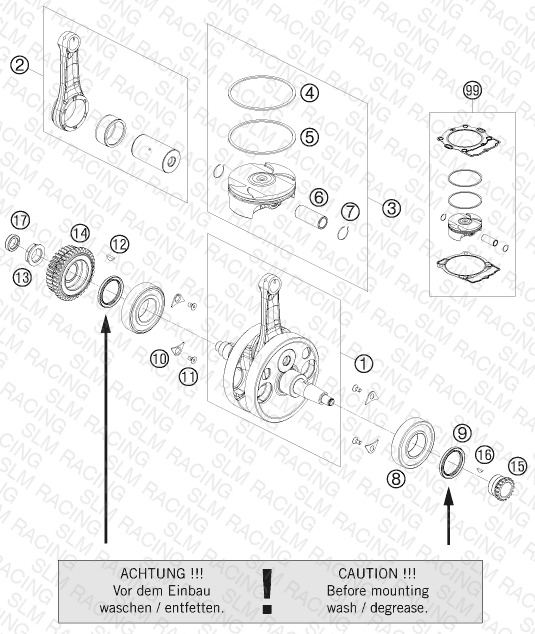

CRANKSHAFT, PISTON
Parts (18)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 78630018100 CRANKSHAFT CPL. 08 | CRANKSHAFT CPL. 08 | 1 | — | Check availability | View Details |
| 2 | 78630015044 CONNECT. ROD REPAIR 530 08 | CONNECT. ROD REPAIR 530 08 | 1 | — | Check availability | View Details |
| 3 | 78630007000 I PISTON CPL. D=95MM | PISTON CPL. D=95MM | 1 | — | Check availability | View Details |
| 4 | 78030030000 COMPRESSION RING 08 | COMPRESSION RING 08 | 1 | — | Check availability | View Details |
| 5 | 78030032000 OIL SCRAPER RING 08 | OIL SCRAPER RING 08 | 1 | — | Check availability | View Details |
| 6 | 78030033000 PISTON PIN 08 | PISTON PIN 08 | 1 | — | Check availability | |
| 7 | 77330074000 CIRCLIP | CIRCLIP | 2 | — | Check availability | |
| 15 | 78036014000 TIMING GEAR | TIMING GEAR | 1 | — | Check availability | |
| 16 | 0888030037 WOODRUFF KEY DIN6888-3X3,7 | WOODRUFF KEY DIN6888-3X3,7 | 1 | — | Check availability | |
| 8 | 0625062071 BALL BEARING 6207 TM-SX07E 39 | BALL BEARING 6207 TM-SX07E 39 | 2 | — | Check availability | |
| 9 | 07603547451 SHAFT SEAL RING 35X47X4,5 | SHAFT SEAL RING 35X47X4,5 | 2 | — | Check availability | |
| 10 | 75030085000 RETAINING PLATE F. CS BEARING | RETAINING PLATE F. CS BEARING | 4 | — | Check availability | View Details |
| 11 | 0019050103 INT TORX FLAT HEAD M 5X10 8.8 | INT TORX FLAT HEAD M 5X10 8.8 | 4 | — | Check availability | View Details |
| 12 | 0888040050 woodruff key DIN 6888 4x5x13 | woodruff key DIN 6888 4x5x13 | 1 | — | Check availability | |
| 13 | 78030029000 NUT PRIMARY WHEEL 08 | NUT PRIMARY WHEEL 08 | 1 | — | Check availability | View Details |
| 14 | 78032032100 PRIM.WHEEL W.FREEWHEEL 08 | PRIM.WHEEL W.FREEWHEEL 08 | 1 | — | Check availability | View Details |
| 3 | 78630007000 II PISTON CPL. D=95MM | PISTON CPL. D=95MM | 1 | — | Check availability | View Details |
| 17 | 0760142460 radial shaft seal 14x24x6 B | radial shaft seal 14x24x6 B | 1 | — | Check availability |
