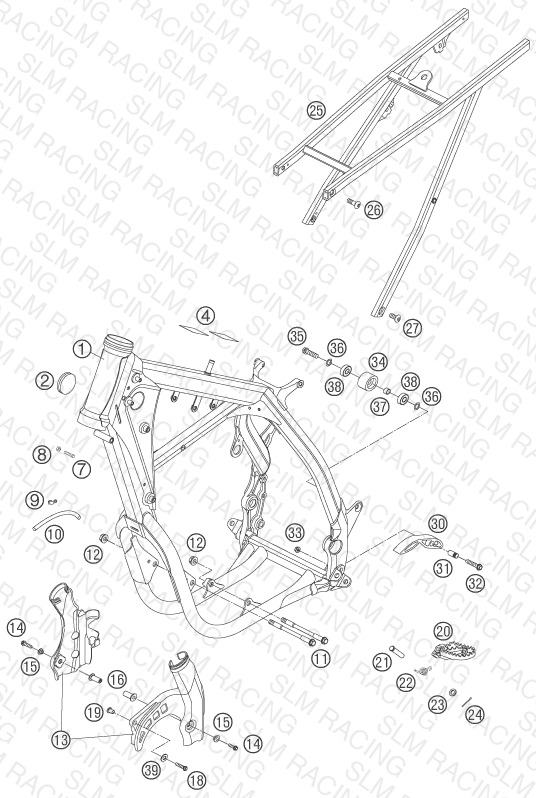

FRAME
Parts (34)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 5940310120030 FRAME EXC RAC.USA ''DB06'' | FRAME EXC RAC.USA ''DB06'' | 1 | — | Check availability | View Details |
| 2 | 54606004000 PLUG 37MM | PLUG 37MM | 2 | — | Check availability | |
| 4 | 50307012000 ADH. FOIL TRANSP. 80X80 MM 04 | ADH. FOIL TRANSP. 80X80 MM 04 | 2 | — | Check availability | |
| 7 | 59001037000 SPECIAL SCREW M8X26 WS=10 | SPECIAL SCREW M8X26 WS=10 | 2 | — | Check availability | |
| 8 | 0934080003 Hexagon nut DIN934 M8 | Hexagon nut DIN934 M8 | 2 | — | Check availability | |
| 9 | 50303089000 ANGLE PIECE '97 | ANGLE PIECE '97 | 2 | — | Check availability | |
| 10 | 55007016001 PVC-HOSE 7X10 PER METER | PVC-HOSE 7X10 PER METER | 1 | — | Check availability | |
| 11 | 59003013000 Enginebrac. screw M10X123 WS=1 | Enginebrac. screw M10X123 WS=1 | 2 | — | Check availability | |
| 12 | 54310086100 SELF LOCKING NUT M10 CU WS=14 | SELF LOCKING NUT M10 CU WS=14 | 2 | — | Check availability | |
| 13 | 54803094100 FRAME PROTECTION SET 05 | FRAME PROTECTION SET 05 | 1 | — | Check availability | |
| 14 | 0014050253 HH COLLAR SCREW M 5X25 WS=6 | HH COLLAR SCREW M 5X25 WS=6 | 2 | — | Check availability | |
| 15 | 54803092060 Bush f. frame protection 03 | Bush f. frame protection 03 | 2 | — | Check availability | |
| 16 | 54803092050 BLIND PLUG-IN NUT M5 WN 22A 03 | BLIND PLUG-IN NUT M5 WN 22A 03 | 2 | — | Check availability | |
| 18 | 0015060353 HH COLLAR SCREW M 6X35 WS=8 | HH COLLAR SCREW M 6X35 WS=8 | 1 | — | Check availability | View Details |
| 19 | 59030060050 BUSHING F. SPROCKET COVER RAC. | BUSHING F. SPROCKET COVER RAC. | 1 | — | Check availability | |
| 20 | 59003040250 FOOT PEG L/S SILVER 02 | FOOT PEG L/S SILVER 02 | 1 | — | Check availability | View Details |
| 20 | 59003041250 FOOT PEG R/S SILVER 02 | FOOT PEG R/S SILVER 02 | 1 | — | Check availability | View Details |
| 21 | 54803044000 PIN FOR FOOT PED 51.5X9.8 MM | PIN FOR FOOT PED 51.5X9.8 MM | 2 | — | Check availability | |
| 22 | 54603041000 FOOTREST SPRING L/S & R/S | FOOTREST SPRING L/S & R/S | 2 | — | Check availability | |
| 23 | 0125100003 washer DIN 125 A 10.5 | washer DIN 125 A 10.5 | 2 | — | Check availability | |
| 24 | 0094032253 PIN DIN0094-3,2X25 STEEL | PIN DIN0094-3,2X25 STEEL | 2 | — | Check availability | View Details |
| 25 | 59403002344 SUB FRAME CPL. EXC+MXC ''M5'' | SUB FRAME CPL. EXC+MXC ''M5'' | 1 | — | Check availability | View Details |
| 26 | 54510052100 SPROCKET SCREW-AH M8X26 WS=6 | SPROCKET SCREW-AH M8X26 WS=6 | 2 | — | Check availability | View Details |
| 27 | 54610052000 SPROCKET SCREW-AH M8X20 WS=6 | SPROCKET SCREW-AH M8X20 WS=6 | 2 | — | Check availability | View Details |
| 30 | 51103053000 CHAIN SLIDING PIECE BELOW '97 | CHAIN SLIDING PIECE BELOW '97 | 1 | — | Check availability | |
| 31 | 51103053051 BUSHING 8,2X10X20 | BUSHING 8,2X10X20 | 1 | — | Check availability | |
| 32 | 0015080353 HH COLLAR SCREW M 8X35 WS=10 | HH COLLAR SCREW M 8X35 WS=10 | 1 | — | Check availability | View Details |
| 33 | 54310086200 Self locking nut M8 10.9 | Self locking nut M8 10.9 | 1 | — | Check availability | |
| 34 | 50203053000 CHAIN ROLL D=30MM | CHAIN ROLL D=30MM | 1 | — | Check availability | |
| 35 | 0015080303 HH COLLAR SCREW M 8X30 WS=10 | HH COLLAR SCREW M 8X30 WS=10 | 1 | — | Check availability | View Details |
| 36 | 36003014000 LOCK WASHER 8MM | LOCK WASHER 8MM | 2 | — | Check availability | |
| 37 | 74003021000 BUSHING 8.2 X 12 X 6 | BUSHING 8.2 X 12 X 6 | 1 | — | Check availability | |
| 38 | 0625006087 Grooved ball bearing 608 2RS C | Grooved ball bearing 608 2RS C | 2 | — | Check availability | |
| 39 | 0125060003 WASHER DIN0125-A 6,4 | WASHER DIN0125-A 6,4 | 1 | — | Check availability |
