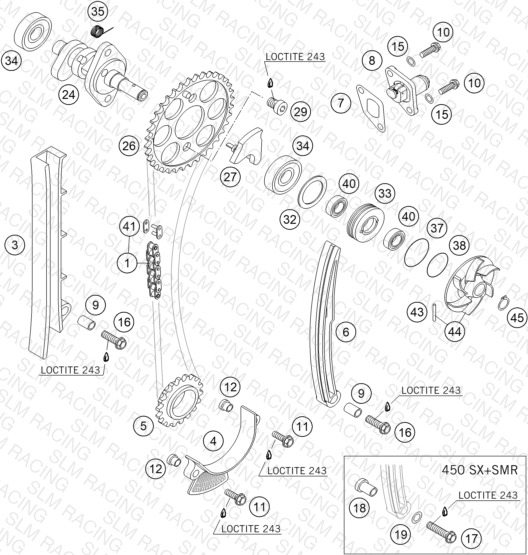

TIMING DRIVE
Parts (31)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 59036013000 TIMING CHAIN 96 ROLLS | TIMING CHAIN 96 ROLLS | 1 | $121.43 | Available | 1 |
| 3 | 59036001000 TIMING CHAIN GUIDE RACING | TIMING CHAIN GUIDE RACING | 1 | $15.72 | Available | 1 |
| 4 | 59036018000 SECURING GUIDE RACING | SECURING GUIDE RACING | 1 | $6.15 | Available | 1 |
| 5 | 59036014000 TIMING GEAR 18-T | TIMING GEAR 18-T | 1 | $76.22 | Available | 1 |
| 6 | 59036002000 TIMING CHAIN TENSIONER | TIMING CHAIN TENSIONER | 1 | $16.16 | Available | 1 |
| 7 | 59036003050 GASKET TIMING CHAIN TENSIONER | GASKET TIMING CHAIN TENSIONER | 1 | $4.99 | Available | 1 |
| 8 | 59036003000 TIMINGCHAIN TENSIONER CPL.RAC. | TIMINGCHAIN TENSIONER CPL.RAC. | 1 | $68.08 | Available | 1 |
| 9 | 59036001050 SPACER BUSHING 6,1X8,2X13,1 | SPACER BUSHING 6,1X8,2X13,1 | 2 | $4.99 | Available | 2 |
| 10 | 0015060203 HH COLLAR SCREW M 6X20 WS=8 | HH COLLAR SCREW M 6X20 WS=8 | 6 | $3.99 | Available | 6 |
| 11 | 0015050163 HH COLLAR SCREW M 5X16 WS=8 | HH COLLAR SCREW M 5X16 WS=8 | 3 | $2.99 | Available | 3 |
| 12 | 59036018050 SUPPORTING SLEEVE 5,2X7X10X7,7 | SUPPORTING SLEEVE 5,2X7X10X7,7 | 2 | $3.99 | Available | 2 |
| 15 | 0603061001 CU-SEAL RING DIN7603-6X10X1 | CU-SEAL RING DIN7603-6X10X1 | 1 | $2.99 | Available | 1 |
| 16 | 0015060253 HH COLLAR SCREW M 6X25 WS=8 | HH COLLAR SCREW M 6X25 WS=8 | 5 | $3.99 | Available | 5 |
| 17 | 0015060303 HH COLLAR SCREW M 6X30 SW=8 | HH COLLAR SCREW M 6X30 SW=8 | 1 | $3.99 | Available | 1 |
| 18 | 59436001050 SPACER BUSHING | SPACER BUSHING | 1 | — | Obsolete | View Details |
| 19 | 0125060003 WASHER DIN0125-A 6,4 | WASHER DIN0125-A 6,4 | 1 | $1.99 | Available | 1 |
| 24 | 59036010000 CAMSHAFT 590/5521 2000 | CAMSHAFT 590/5521 2000 | 1 | $314.04 | Available | 1 |
| 26 | 59036011100 CAMSHAFT GEAR 2003 | CAMSHAFT GEAR 2003 | 1 | — | Obsolete | View Details |
| 27 | 59036016000 AUTO DECOMPRESSION SHAFT | AUTO DECOMPRESSION SHAFT | 1 | — | Obsolete | View Details |
| 29 | 0984080103 AH SCREW DIN7984-M 8X10 | AH SCREW DIN7984-M 8X10 | 2 | $2.99 | Available | 2 |
| 32 | 59036082000 WASHER 26,7X34X1,3 | WASHER 26,7X34X1,3 | 1 | $6.15 | Available | 1 |
| 33 | 59036081100 GASKET SUPPORT | GASKET SUPPORT | 1 | $21.44 | Available | 1 |
| 34 | 0625062014 BALL BEARING 6201 | BALL BEARING 6201 | 2 | $18.14 | Available | 2 |
| 35 | 59036017000 SPRING FOR AUTODECOMPRESSION | SPRING FOR AUTODECOMPRESSION | 1 | $4.99 | Available | 1 |
| 37 | 0770291016 O-RING 29,10X1,60 NBR 70 | O-RING 29,10X1,60 NBR 70 | 1 | $2.99 | Available | 1 |
| 38 | 0770020220 O-RING 25,12X1,78 NBR70 | O-RING 25,12X1,78 NBR70 | 1 | $3.99 | Available | 1 |
| 40 | 0760101843 SHAFT SEAL RING 10X18X4 BSL | SHAFT SEAL RING 10X18X4 BSL | 2 | $11.87 | Available | 2 |
| 41 | 59036013050 RIVET LINK FOR TIMING CHAIN | RIVET LINK FOR TIMING CHAIN | 1 | $9.45 | Available | 1 |
| 43 | 0402031780 Needle roll.DIN5402 NRB 3X17.8 | Needle roll.DIN5402 NRB 3X17.8 | 1 | $1.99 | Available | 1 |
| 44 | 59035055144 WATER PUMP WHEEL CPL. RAC.2001 | WATER PUMP WHEEL CPL. RAC.2001 | 1 | $7.03 | Available | 1 |
| 45 | 0471100010 CIRCLIP DIN0471-10X1 | CIRCLIP DIN0471-10X1 | 1 | $2.99 | Available | 1 |
