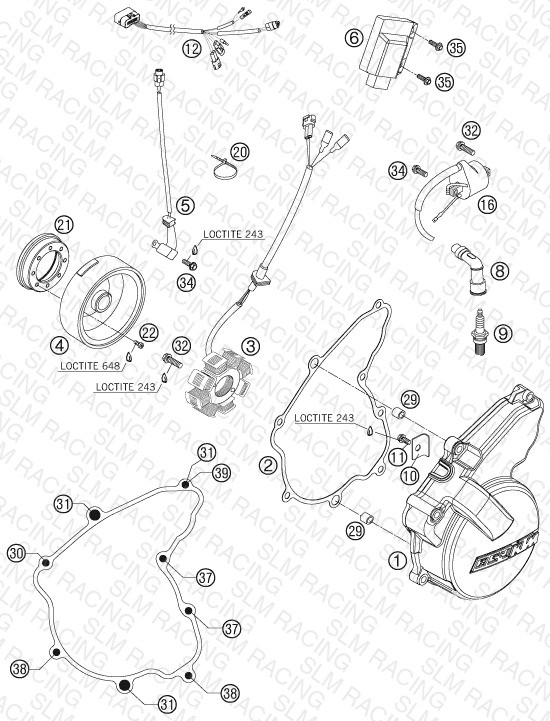

IGNITION SYSTEM
Parts (28)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 40 | 0025060206 HH collar screw M6x20 TX30 | HH collar screw M6x20 TX30 | 1 | — | Check availability | |
| 12 | 78039032000 WIRING HARNESS F. CDI-BOX 08 | WIRING HARNESS F. CDI-BOX 08 | 0 | — | Check availability | View Details |
| 6 | 77039131300 CDI UNIT 250 EXC-F 08 | CDI UNIT 250 EXC-F 08 ONLY FOR EXC-F EU 08 | 1 | — | Check availability | View Details |
| 2 | 77030140000 IGNITION COVER GASKET EXC-F | IGNITION COVER GASKET EXC-F | 1 | — | Check availability | |
| 1 | 7703010210025 IGNITION COVER | IGNITION COVER | 1 | — | Check availability | View Details |
| 3 | 77039104000 STATOR 2007 | STATOR 2007 | 1 | — | Check availability | View Details |
| 4 | 77039105100 FLYWHEEL | FLYWHEEL | 1 | — | Check availability | View Details |
| 5 | 77039134000 PULSER COIL 08 | PULSER COIL 08 | 1 | — | Check availability | View Details |
| 6 | 77039131100 CDI UNIT 250 EXC-F 07 | CDI UNIT 250 EXC-F 07 | 1 | — | Check availability | View Details |
| 8 | 59039090100 SPARK PLUG CONNECT. VD05EG03 | SPARK PLUG CONNECT. VD05EG03 | 1 | — | Check availability | View Details |
| 9 | 77039093000 SPARK PLUG NGK CR9EKB ´05 | SPARK PLUG NGK CR9EKB ´05 | 1 | — | Check availability | |
| 10 | 77030002050 WIRE RETAINING BRACKET 06 | WIRE RETAINING BRACKET 06 | 1 | — | Check availability | |
| 11 | 0015060083 HH COLLAR SCREW M 6X8 WS=8 | HH COLLAR SCREW M 6X8 WS=8 | 1 | — | Check availability | View Details |
| 12 | 59439032100 WIRING HARNESS FOR CDI EXC 04 | WIRING HARNESS FOR CDI EXC 04 | 0 | — | Check availability | View Details |
| 16 | 59039006000 IGNITIONCOIL ''IG5128'' | IGNITIONCOIL ''IG5128'' | 1 | — | Check availability | |
| 20 | 44011076100 CABLE TIE 100/2,5MM BLACK | CABLE TIE 100/2,5MM BLACK | 0 | — | Check availability | View Details |
| 21 | 77040025000 FREEWHEEL HUB | FREEWHEEL HUB | 1 | — | Check availability | |
| 22 | 00120500810 AH SCREW DIN6912-M5X8 10.9 | AH SCREW DIN6912-M5X8 10.9 | 8 | — | Check availability | |
| 29 | 49030090000 DOWEL 9,8 X 7 X 10 | DOWEL 9,8 X 7 X 10 | 2 | — | Check availability | View Details |
| 30 | 0015060503 HH COLLAR SCREW M 6X50 WS=8 | HH COLLAR SCREW M 6X50 WS=8 | 1 | — | Check availability | View Details |
| 31 | 0015060303 HH COLLAR SCREW M 6X30 SW=8 | HH COLLAR SCREW M 6X30 SW=8 | 3 | — | Check availability | View Details |
| 32 | 0015060203 HH COLLAR SCREW M 6X20 WS=8 | HH COLLAR SCREW M 6X20 WS=8 | 2 | — | Check availability | View Details |
| 34 | 0015050163 HH COLLAR SCREW M 5X16 WS=8 | HH COLLAR SCREW M 5X16 WS=8 | 2 | — | Check availability | View Details |
| 35 | 0024060106 HH COLLAR SCREW M6X10 TX30 | HH COLLAR SCREW M6X10 TX30 | 2 | — | Check availability | |
| 36 | 0025060206 HH collar screw M6x20 TX30 | HH collar screw M6x20 TX30 | 1 | — | Check availability | |
| 37 | 0015060253 HH COLLAR SCREW M 6X25 WS=8 | HH COLLAR SCREW M 6X25 WS=8 | 2 | — | Check availability | View Details |
| 38 | 0015060953 HH COLLAR SCREW M 6X95 WS=8 | HH COLLAR SCREW M 6X95 WS=8 | 2 | — | Check availability | View Details |
| 39 | 0603061001 CU-SEAL RING DIN7603-6X10X1 | CU-SEAL RING DIN7603-6X10X1 | 1 | — | Check availability |
