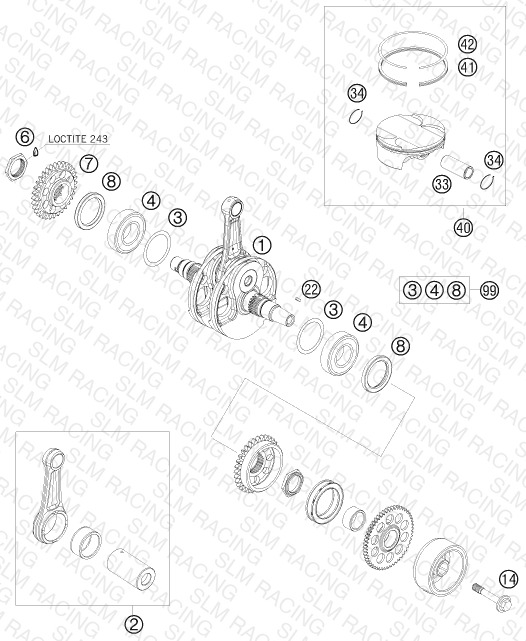

CRANKSHAFT, PISTON
Parts (18)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 77630018200 CRANKSHAFT CPL. 08 | CRANKSHAFT CPL. 08 | 1 | — | Obsolete | View Details |
| 2 | 77630015144 CONNECTING ROD REPAIR SET | CONNECTING ROD REPAIR SET | 1 | — | Obsolete | View Details |
| 3 | 0988304201 THRUST WASHER 30X42X0,1 | THRUST WASHER 30X42X0,1 | — | $1.99 | Available | 1 |
| 3 | 0988304202 THRUST WASHER 30X42X0,2 | THRUST WASHER 30X42X0,2 | — | $1.99 | Available | 1 |
| 3 | 0988304203 THRUST WASHER 30X42X0,3 | THRUST WASHER 30X42X0,3 | — | $1.99 | Available | 1 |
| 4 | 77330082000 CYL. ROLLER BEARING NJ206 ECP | CYL. ROLLER BEARING NJ206 ECP | 2 | $94.70 | Available | 2 |
| 6 | 77330029000 COLLAR NUT M27X1 | COLLAR NUT M27X1 | 1 | $12.75 | Available | 1 |
| 7 | 77332023177 PRIMARY GEAR CPL. 07 | PRIMARY GEAR CPL. 07 | 1 | — | Obsolete | View Details |
| 8 | 0760405560 SHAFT SEAL RING A40x55x6 VITON | SHAFT SEAL RING A40x55x6 VITON | 2 | $13.96 | Available | 2 |
| 14 | 77339010100 FLYWHEEL SCREW | FLYWHEEL SCREW | 1 | $6.59 | Available | 1 |
| 22 | 0888030037 WOODRUFF KEY DIN6888-3X3,7 | WOODRUFF KEY DIN6888-3X3,7 | 1 | $2.99 | Available | 1 |
| 33 | 77630033000 PISTON PIN | PISTON PIN | 1 | — | Obsolete | View Details |
| 34 | 77630074000 CIRCLIP | CIRCLIP | 1 | $12.42 | Available | 1 |
| 40 | 77630007000 I PISTON D=100 07 | PISTON D=100 07 | 1 | — | Obsolete | View Details |
| 40 | 77630007000 II PISTON D=100 07 | PISTON D=100 07 | 1 | — | Obsolete | View Details |
| 41 | 77630032000 OIL SCRAPER RING | OIL SCRAPER RING | 1 | $54.77 | Obsolete | View Details |
| 42 | 77630030000 RECTANGULAR RING D=100 07 | RECTANGULAR RING D=100 07 | 1 | $48.28 | Available | 1 |
| 99 | 00050002304 CRANKSHAFT REP. KIT 450 SX-F | CRANKSHAFT REP. KIT 450 SX-F | — | — | Obsolete | View Details |
