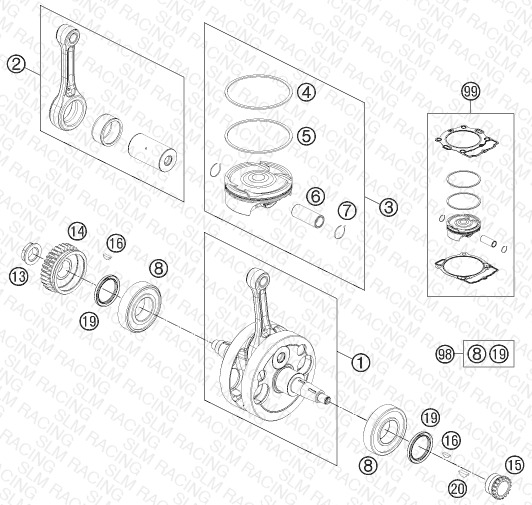

CRANKSHAFT, PISTON
Parts (18)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 78730018000 CRANKSHAFT CPL. | CRANKSHAFT CPL. | 1 | — | Check availability | View Details |
| 2 | 78730015044 CON. ROD. REP. KIT | CON. ROD. REP. KIT | 1 | — | Check availability | View Details |
| 3 | 78730007000 I PISTON I D=95MM | PISTON I D=95MM | 1 | — | Check availability | View Details |
| 3 | 78730007000 II PISTON II D=95MM | PISTON II D=95MM | 1 | — | Check availability | View Details |
| 4 | 78130030000 COMPRESSION RING | COMPRESSION RING | 1 | — | Check availability | |
| 5 | 78130032000 OIL SCRAPER RING | OIL SCRAPER RING | 1 | — | Check availability | View Details |
| 6 | 78130033000 PISTON PIN | PISTON PIN | 1 | — | Check availability | |
| 7 | 77330074000 CIRCLIP | CIRCLIP | 2 | — | Check availability | |
| 8 | 0625062071 BALL BEARING 6207 TM-SX07E 39 | BALL BEARING 6207 TM-SX07E 39 | 2 | — | Check availability | |
| 13 | 78030029200 NUT PRIMARY WHEEL M20X1,5 | NUT PRIMARY WHEEL M20X1,5 | 1 | — | Check availability | View Details |
| 14 | 78132000032 PRIMARY GEAR | PRIMARY GEAR | 1 | — | Check availability | View Details |
| 15 | 78036014200 TIMING GEAR 18T. | TIMING GEAR 18T. | 1 | — | Check availability | View Details |
| 16 | 0888030037 WOODRUFF KEY DIN6888-3X3,7 | WOODRUFF KEY DIN6888-3X3,7 | 2 | — | Check availability | |
| 19 | 0760354774 SHAFT SEAL RING 35X47X7 VITON | SHAFT SEAL RING 35X47X7 VITON | 2 | — | Check availability | |
| 20 | 0888030050 WOODRUFF KEY DIN6888-3X5X13 | WOODRUFF KEY DIN6888-3X5X13 | 1 | — | Check availability | |
| 98 | 00050002308 CRANKSHAFT REP. KIT 450/500 | CRANKSHAFT REP. KIT 450/500 | 0 | — | Check availability | View Details |
| 99 | 00050000211 PISTON KIT GR. I 500 EXC 12-14 | PISTON KIT GR. I 500 EXC 12-14 | 0 | — | Check availability | View Details |
| 99 | 00050000212 PISTON KIT GR. II 500 EXC12-14 | PISTON KIT GR. II 500 EXC12-14 | 0 | — | Check availability | View Details |
