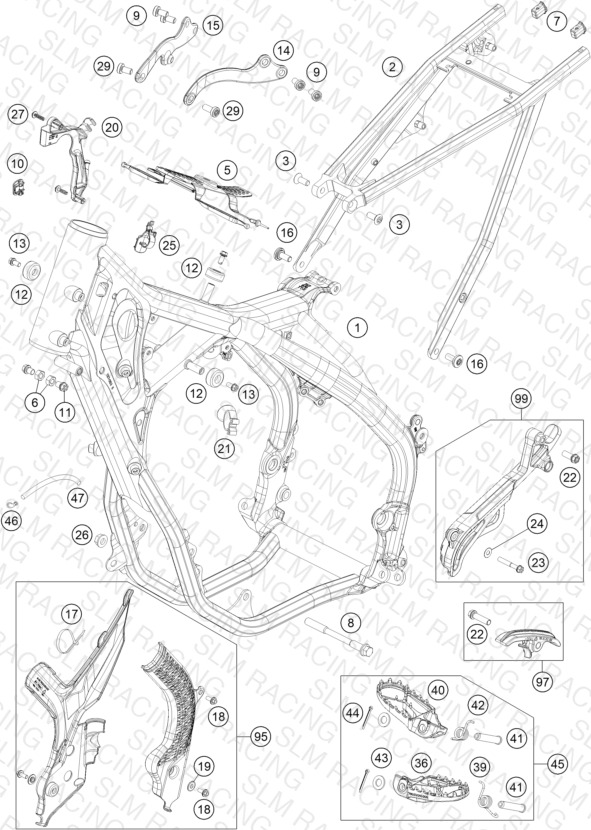

FRAME
Parts (41)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 5570310100033 Frame 557T2 | Frame 557T2 | 1 | — | Check availability | |
| 2 | 79103002100 Subframe | Subframe | 1 | — | Check availability | |
| 3 | 0019080206S FLAT HEAD SCREW M. ISA45 M8X20 | FLAT HEAD SCREW M. ISA45 M8X20 | 2 | — | Check availability | |
| 5 | 79607012000 TANK REST RUBBER | TANK REST RUBBER | 1 | — | Check availability | |
| 6 | 0934080003 Hexagon nut DIN934 M8 | Hexagon nut DIN934 M8 | 2 | — | Check availability | |
| 7 | 79103002010 Rear frame bit | Rear frame bit | 2 | — | Check availability | |
| 8 | 77203014000 engine brac.scr. M10x115 | engine brac.scr. M10x115 | 2 | — | Check availability | |
| 9 | 0035080156S AH-COLLAR SCREW M8X15 TORX45 | AH-COLLAR SCREW M8X15 TORX45 | 4 | — | Check availability | |
| 10 | 79111013010 Cover control head sheet | Cover control head sheet | 1 | — | Check availability | |
| 11 | 59001037000 SPECIAL SCREW M8X26 WS=10 | SPECIAL SCREW M8X26 WS=10 | 2 | — | Check availability | |
| 12 | 50307014000 TANK ROLLER 12X26X12 '98 | TANK ROLLER 12X26X12 '98 | 3 | — | Check availability | |
| 13 | 0026060136 COLLAR SCREW M6X13 ISA30 | COLLAR SCREW M6X13 ISA30 | 3 | — | Check availability | View Details |
| 14 | 5570301300001S Engine brace, left 250/300 TPI | Engine brace, left 250/300 TPI | 1 | — | Check availability | |
| 15 | 5570301400001S Engine brace, right 250/300 TP | Engine brace, right 250/300 TP | 1 | — | Check availability | |
| 16 | 79003003000 Special screw M8X18 TORX45 SL | Special screw M8X18 TORX45 SL | 2 | — | Check availability | |
| 17 | 44011076305 CABLE TIE 300/4,8MM BLACK | CABLE TIE 300/4,8MM BLACK | 0 | — | Check availability | |
| 17 | 44011176140 cable tie 140/ 3,5 mm Schwarz | cable tie 140/ 3,5 mm Schwarz | 0 | — | Check availability | |
| 18 | 0025050106 HH collar screw M5x10 TX30 | HH collar screw M5x10 TX30 | 3 | — | Check availability | |
| 19 | 54803092060 Bush f. frame protection 03 | Bush f. frame protection 03 | 2 | — | Check availability | |
| 20 | 79711013000 Cable holder throttle cable gu | Cable holder throttle cable gu | 1 | — | Check availability | |
| 21 | 79711013010 Cable bracket d8 | Cable bracket d8 | 1 | — | Check availability | |
| 22 | 0025080306 HH collar screw M8x30 | HH collar screw M8x30 | 2 | — | Check availability | |
| 23 | 0025060406 HH collar screw M6x40 TX30 | HH collar screw M6x40 TX30 | 1 | — | Check availability | |
| 24 | 0125060003 WASHER DIN0125-A 6,4 | WASHER DIN0125-A 6,4 | 1 | — | Check availability | |
| 25 | 79107013010 wire holder / fuel ventilation | wire holder / fuel ventilation | 1 | — | Check availability | |
| 26 | 54310086100 SELF LOCKING NUT M10 CU WS=14 | SELF LOCKING NUT M10 CU WS=14 | 2 | — | Check availability | |
| 27 | 0081050181 SCREW FOR PLASTIC K50X18 T20 | SCREW FOR PLASTIC K50X18 T20 | 2 | — | Check availability | |
| 29 | 0035080206S SHCS M8x20 TX45 | SHCS M8x20 TX45 | 2 | — | Check availability | |
| 36 | 79603040000 FOOTREST L/S EXC 2017 | FOOTREST L/S EXC 2017 | 1 | — | Check availability | |
| 39 | 79003045000 FOOTREST SPRING L/S 2016 | FOOTREST SPRING L/S 2016 | 1 | — | Check availability | |
| 40 | 79603041000 FOOTREST R/S EXC 2017 | FOOTREST R/S EXC 2017 | 1 | — | Check availability | |
| 41 | 54803044000 PIN FOR FOOT PED 51.5X9.8 MM | PIN FOR FOOT PED 51.5X9.8 MM | 2 | — | Check availability | |
| 42 | 79003044000 FOOTREST SPRING R/S 2016 | FOOTREST SPRING R/S 2016 | 1 | — | Check availability | |
| 43 | 0125100003 washer DIN 125 A 10.5 | washer DIN 125 A 10.5 | 2 | — | Check availability | |
| 44 | 0094032253 PIN DIN0094-3,2X25 STEEL | PIN DIN0094-3,2X25 STEEL | 2 | — | Check availability | View Details |
| 45 | 79603040033 FOOTREST-SET | FOOTREST-SET | 1 | — | Check availability | |
| 46 | 50303089000 ANGLE PIECE '97 | ANGLE PIECE '97 | 1 | — | Check availability | |
| 47 | 50430087000 preformed hose 6x10 ECO | preformed hose 6x10 ECO | 1 | — | Check availability | |
| 95 | 7910309410030 Frame protection set | Frame protection set | 1 | — | Check availability | |
| 97 | 79003053010 CHAIN SLIDING KIT BELOW CPL.16 | CHAIN SLIDING KIT BELOW CPL.16 | 1 | — | Check availability | |
| 99 | 55403096010 SPROCKET COVER KIT | SPROCKET COVER KIT | 1 | — | Check availability |
