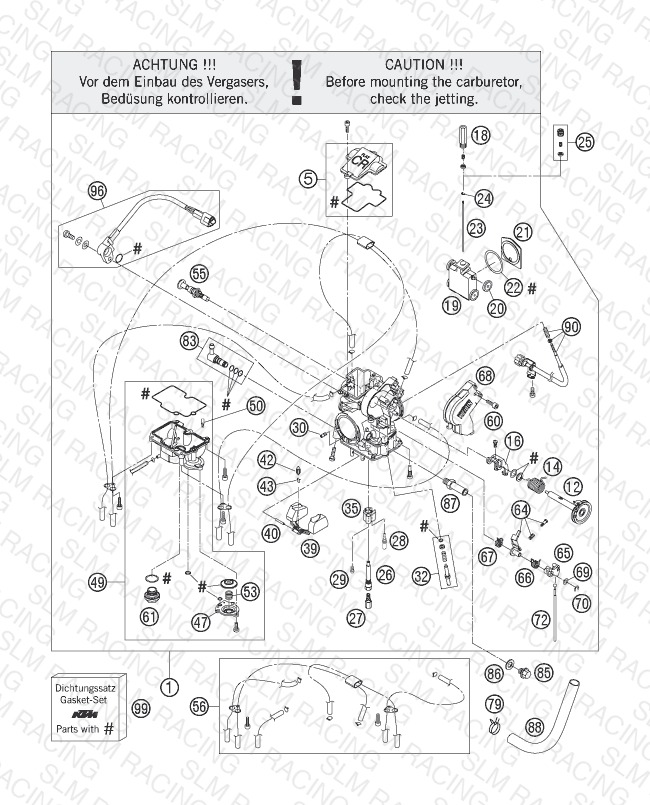

CARBURETOR
Parts (63)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 16 | 57331035051 LINK ARM THROTTLE VALVE CPL. | LINK ARM THROTTLE VALVE CPL. | 1 | — | Check availability | |
| 19 | 57331035000 THROTTLE VALVE CPL. | THROTTLE VALVE CPL. | 1 | — | Check availability | |
| 20 | 59031035050 BUSHING THROTTLE VALVE | BUSHING THROTTLE VALVE | 1 | — | Check availability | |
| 12 | 57331046100 THROTTLE SHAFT CPL. 06 | THROTTLE SHAFT CPL. 06 | 1 | — | Check availability | View Details |
| 14 | 57331046050 COIL SPRING THROTTLE SHAFT | COIL SPRING THROTTLE SHAFT | 1 | — | Check availability | |
| 1 | 77031001100 CARB FCR-MX 3900G,TPS 06 | CARB FCR-MX 3900G,TPS 06 | 1 | — | Check availability | View Details |
| 5 | 57331027044 CARBURETOR COVER WITH GASKET | CARBURETOR COVER WITH GASKET | 1 | — | Check availability | |
| 21 | 57331035153 GASKET PLATE THROTTLE VALVE 04 | GASKET PLATE THROTTLE VALVE 04 | 1 | — | Check availability | |
| 22 | 59031035052 GASKET WASHER THROTTLE VALVE | GASKET WASHER THROTTLE VALVE | 1 | — | Check availability | |
| 23 | 59031034200 JET NEEDLE KEIHIN OBETN | JET NEEDLE KEIHIN OBETN | 0 | — | Check availability | |
| 23 | 59031034100 JET NEEDLE KEIHIN OBETP | JET NEEDLE KEIHIN OBETP | 0 | — | Check availability | |
| 23 | 59031034300 JET NEEDLE KEIHIN OBETQ | JET NEEDLE KEIHIN OBETQ | 0 | — | Check availability | |
| 24 | 59031029000 BAR CLIP | BAR CLIP | 1 | — | Check availability | |
| 25 | 57331032000 NEEDLE SET SCREW CPL. | NEEDLE SET SCREW CPL. | 1 | — | Check availability | |
| 26 | 59031121000 NEEDLE JET FCR-MX | NEEDLE JET FCR-MX | 1 | — | Check availability | |
| 27 | 54531623168 MAIN JET 168 KEIHIN | MAIN JET 168 KEIHIN | 1 | — | Check availability | |
| 27 | 54531623170 MAIN JET 170 KEIHIN | MAIN JET 170 KEIHIN | 0 | — | Check availability | |
| 27 | 54531623172 MAIN JET 172 KEIHIN | MAIN JET 172 KEIHIN | 0 | — | Check availability | |
| 27 | 54531623175 MAIN JET 175 KEIHIN | MAIN JET 175 KEIHIN | 0 | — | Check availability | |
| 27 | 54531623178 MAIN JET 178 KEIHIN | MAIN JET 178 KEIHIN | 0 | — | Check availability | |
| 28 | 54531607038 IDLE JET 38 KEIHIN | IDLE JET 38 KEIHIN | 0 | — | Check availability | |
| 28 | 54531607040 IDLE JET 40 KEIHIN | IDLE JET 40 KEIHIN | 1 | — | Check availability | |
| 28 | 54531607042 IDLE JET 42 KEIHIN | IDLE JET 42 KEIHIN | 0 | — | Check availability | |
| 29 | 59031051085 STARTER JET 85 | STARTER JET 85 | 1 | — | Check availability | |
| 30 | 57331107100 IDLE AIR JET 100 KEIHIN | IDLE AIR JET 100 KEIHIN | 1 | — | Check availability | |
| 32 | 59031017100 ADJUST SCREW CPL. FCR-MX | ADJUST SCREW CPL. FCR-MX | 1 | — | Check availability | |
| 35 | 57331085000 BUFFER PLATE | BUFFER PLATE | 1 | — | Check availability | |
| 39 | 57331009000 FLOAT CPL. | FLOAT CPL. | 1 | — | Check availability | |
| 40 | 57331008000 ARM PIN FLOAT | ARM PIN FLOAT | 1 | — | Check availability | |
| 42 | 54631220000 FLOAT NEEDLE | FLOAT NEEDLE | 1 | — | Check availability | |
| 43 | 54531621000 CLAMP | CLAMP | 1 | — | Check availability | |
| 47 | 57331060000 COVER ACCELERATOR PUMP | COVER ACCELERATOR PUMP | 1 | — | Check availability | |
| 49 | 77031011000 FLOAT CHAMBER CPL. | FLOAT CHAMBER CPL. | 1 | — | Check availability | View Details |
| 50 | 54631085050 JET POWER JET 50 KEIHIN | JET POWER JET 50 KEIHIN | 0 | — | Check availability | |
| 50 | 54631085060 JET POWER JET 60 KEIHIN | JET POWER JET 60 KEIHIN | 0 | — | Check availability | |
| 50 | 54631085070 JET POWER JET 70 KEIHIN | JET POWER JET 70 KEIHIN | 1 | — | Check availability | |
| 53 | 59031059000 COIL SPRING | COIL SPRING | 1 | — | Check availability | |
| 55 | 57331048000 STARTER VALVE CPL. | STARTER VALVE CPL. | 1 | — | Check availability | |
| 56 | 57331098000 BREATH.HOSE FCR-MX KEIHIN CPL. | BREATH.HOSE FCR-MX KEIHIN CPL. | 1 | — | Check availability | |
| 60 | 57331038100 SCREW F. COVER KEIHIN | SCREW F. COVER KEIHIN | 1 | — | Check availability | View Details |
| 61 | 54531699000 PLUG M 18X1 | PLUG M 18X1 | 1 | — | Check availability | |
| 64 | 57331062000 INTERMEDIATE LEVER CPL. | INTERMEDIATE LEVER CPL. | 1 | — | Check availability | |
| 65 | 57331056000 LINK LEVER | LINK LEVER | 1 | — | Check availability | |
| 66 | 57331059000 SPRING LINK LEVER | SPRING LINK LEVER | 1 | — | Check availability | |
| 67 | 57331159000 SPRING INTERMEDIATE LEVER | SPRING INTERMEDIATE LEVER | 1 | — | Check availability | |
| 68 | 57331038200 CARBURETOR COVER 06 | CARBURETOR COVER 06 | 1 | — | Check availability | |
| 69 | 57331087000 WASHER LINK LEVER | WASHER LINK LEVER | 1 | — | Check availability | |
| 70 | 57331084000 E-CLIP | E-CLIP | 1 | — | Check availability | |
| 72 | 57331061000 ROD ACCELERATOR PUMP | ROD ACCELERATOR PUMP | 1 | — | Check availability | |
| 83 | 59031013044 HOSE CONNECTOR CPL. | HOSE CONNECTOR CPL. | 1 | — | Check availability | |
| 90 | 57331025000 STOP SCREW CPL. FCR-MX | STOP SCREW CPL. FCR-MX | 1 | — | Check availability | |
| 96 | 59031077200 TPS-SENSOR FCRMX 190MM 2006 | TPS-SENSOR FCRMX 190MM 2006 | 1 | — | Check availability | |
| 99 | 57331099000 GASKET SET FCR-MX KEIHIN | GASKET SET FCR-MX KEIHIN | 1 | — | Check availability | |
| 27 | 54531623160 MAIN JET 160 KEIHIN | MAIN JET 160 KEIHIN | 0 | — | Check availability | |
| 27 | 54531623162 MAIN JET 162 KEIHIN | MAIN JET 162 KEIHIN | 0 | — | Check availability | |
| 27 | 54531623165 MAIN JET 165 KEIHIN | MAIN JET 165 KEIHIN | 0 | — | Check availability | |
| 23 | 57331034500 JET NEEDLE KEIHIN OBEKT | JET NEEDLE KEIHIN OBEKT | 1 | — | Check availability | View Details |
| 18 | 59031029010 SLIDE STOP 03 | SLIDE STOP 03 | 1 | — | Check availability | View Details |
| 79 | 58431082100 YDNAC-clamp 10173 (16MM) | YDNAC-clamp 10173 (16MM) | 1 | — | Check availability | |
| 85 | 0910100003 PLUG DIN0910-M 10X1 | PLUG DIN0910-M 10X1 | 1 | — | Check availability | |
| 86 | 0603100141 sealing ring DIN 7603 10x14x1 | sealing ring DIN 7603 10x14x1 | 1 | — | Check availability | |
| 87 | 59031040300 HOSE CONNECTOR KEIHIN | HOSE CONNECTOR KEIHIN | 1 | — | Check availability | |
| 88 | 77031050000 ENGINE BREATHER TUBE | ENGINE BREATHER TUBE | 1 | — | Check availability |
