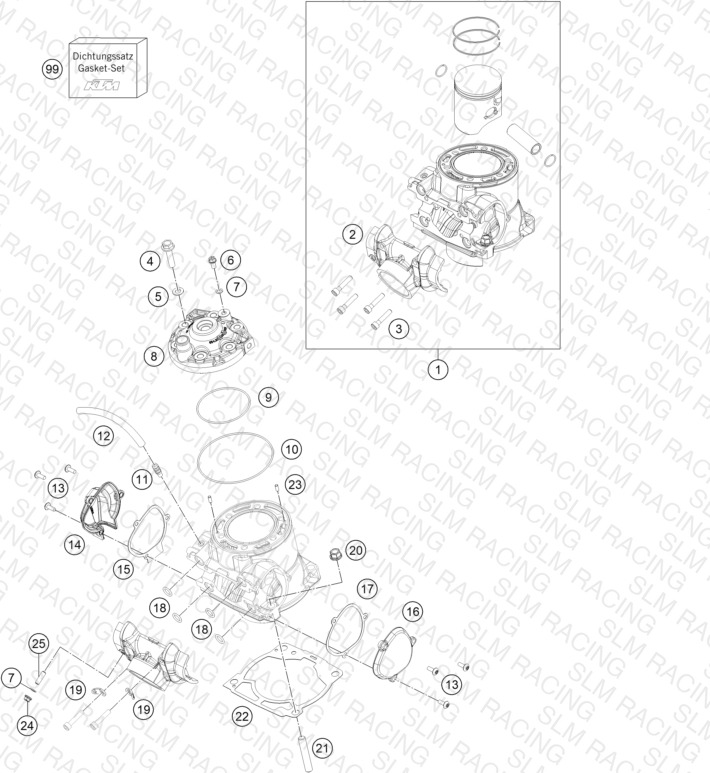

CYLINDER, CYLINDER HEAD
Parts (31)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 55730038000 Zylinder + Kolben kpl. 19 | Zylinder + Kolben kpl. 19 | 1 | $1411.62 | Available | 1 |
| 2 | 55537001000 Intermediate flange | Intermediate flange | 1 | $142.99 | Available | 1 |
| 3 | 0912060353 AH SCREW DIN0912-M 6X35 | AH SCREW DIN0912-M 6X35 | 4 | $2.99 | Available | 4 |
| 4 | 54830079000 COLLAR SCREW M 8X35 WS=13 | COLLAR SCREW M 8X35 WS=13 | 6 | $4.99 | Available | 6 |
| 5 | 56530080000 CU-SEAL RING 8 X 16 X 1 | CU-SEAL RING 8 X 16 X 1 | 6 | $2.99 | Available | 6 |
| 6 | 0025060126 HH collar screw M6x12 TX30 | HH collar screw M6x12 TX30 | 3 | $3.99 | Available | 3 |
| 7 | 0603061001 CU-SEAL RING DIN7603-6X10X1 | CU-SEAL RING DIN7603-6X10X1 | 1 | $2.99 | Available | 1 |
| 8 | 55630206100 Cylinder head KTM 300 XC | Cylinder head KTM 300 XC | 1 | $195.24 | Out of Stock | Notify Me |
| 9 | 0770078020 O-RING 78,00X2,00 VIT. BLACK | O-RING 78,00X2,00 VIT. BLACK | 1 | $6.15 | Available | 1 |
| 10 | 0770105020 O-ring 105x2 | O-ring 105x2 | 1 | $6.26 | Available | 1 |
| 11 | 58336020090 VACUUM CONNECTION M 6X1 | VACUUM CONNECTION M 6X1 | 1 | $7.80 | Available | 1 |
| 12 | 50335030001 PVC-HOSE 6X9 | PVC-HOSE 6X9 | — | $7.91 | Available | 1 |
| 13 | 58605083014 Oval head screw M5x14 TX25 | Oval head screw M5x14 TX25 | 6 | $3.99 | Available | 6 |
| 14 | 5483700710015 Exhaust control cover rh | Exhaust control cover rh | 1 | $45.20 | Available | 1 |
| 15 | 54837008000 GASKET FOR CONTROL COVER R/S | GASKET FOR CONTROL COVER R/S | 1 | $8.13 | Available | 1 |
| 16 | 5483700500015 CONTROL COVER L/S 09 | CONTROL COVER L/S 09 | 1 | $28.92 | Available | 1 |
| 17 | 54837006000 GASKET FOR CONTROL COVER L/S | GASKET FOR CONTROL COVER L/S | 1 | $8.13 | Available | 1 |
| 18 | 0770116241 O-RING 11,3 X2,4 SILICON | O-RING 11,3 X2,4 SILICON | 4 | $3.99 | Available | 4 |
| 19 | 51005074000 RETAINING PLATE | RETAINING PLATE | 2 | $3.99 | Available | 2 |
| 20 | 55530044000 Collar nut M10-SW13 ZnNi | Collar nut M10-SW13 ZnNi | 4 | $1.99 | Available | 4 |
| 21 | 0835100353 Stud M10x35 | Stud M10x35 | 4 | $2.99 | Backorder — Restocking | 4 |
| 22 | 55430030020 CYLINDER BASE GASKET | CYLINDER BASE GASKET | — | $11.21 | Available | 1 |
| 22 | 55430030025 CYLINDER BASE GASKET | CYLINDER BASE GASKET | — | $10.55 | Available | 1 |
| 22 | 55430030030 Cylinder base gasket | Cylinder base gasket | 1 | $6.15 | Available | 1 |
| 22 | 55430030040 CYLINDER BASE GASKET | CYLINDER BASE GASKET | — | $10.55 | Available | 1 |
| 22 | 55430030050 CYLINDER BASE GASKET | CYLINDER BASE GASKET | — | $10.33 | Available | 1 |
| 22 | 55430030075 CYLINDER FOOT GASKET | CYLINDER FOOT GASKET | — | $11.65 | Available | 1 |
| 23 | 0402040980 Needle roll.DIN5402 NRB 4X9.8 | Needle roll.DIN5402 NRB 4X9.8 | 2 | $3.99 | Available | 2 |
| 24 | 77336088106 COLLAR NUT M6X1 SW8 | COLLAR NUT M6X1 SW8 | 1 | $14.84 | Available | 1 |
| 25 | 0913060203 THREAD PIN DIN0913-M 6X20 | THREAD PIN DIN0913-M 6X20 | 1 | $1.99 | Available | 1 |
| 99 | 55430097000 Gasket set piston 250/300 | Gasket set piston 250/300 | — | $114.50 | Available | 1 |
