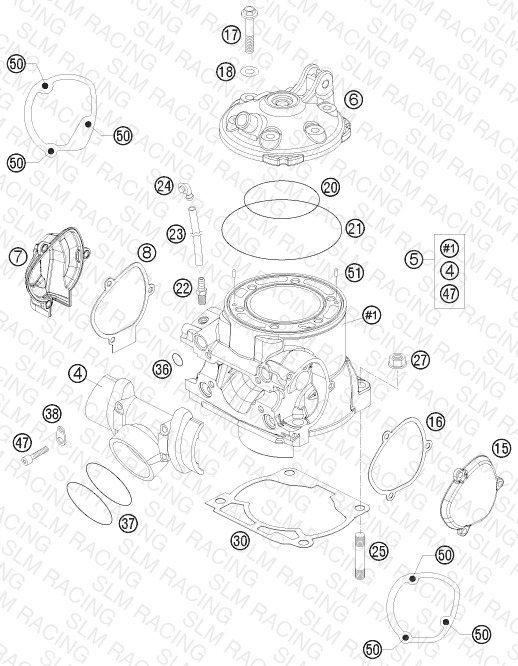

CYLINDER, CYLINDER HEAD
Parts (26)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 4 | 54837001200 INTERMEDIATE FLANGE 250/300 07 | INTERMEDIATE FLANGE 250/300 07 | 1 | — | Check availability | |
| 6 | 54830306100 CYLINDER HEAD 300 ''3003'' | CYLINDER HEAD 300 ''3003'' | 1 | — | Check availability | View Details |
| 7 | 5483700700015 CONTROL COVER R/S 09 | CONTROL COVER R/S 09 | 1 | — | Check availability | View Details |
| 8 | 54837008000 GASKET FOR CONTROL COVER R/S | GASKET FOR CONTROL COVER R/S | 1 | — | Check availability | View Details |
| 15 | 5483700500015 CONTROL COVER L/S 09 | CONTROL COVER L/S 09 | 1 | — | Check availability | |
| 16 | 54837006000 GASKET FOR CONTROL COVER L/S | GASKET FOR CONTROL COVER L/S | 1 | — | Check availability | View Details |
| 17 | 54830079000 COLLAR SCREW M 8X35 WS=13 | COLLAR SCREW M 8X35 WS=13 | 6 | — | Check availability | |
| 18 | 56530080000 CU-SEAL RING 8 X 16 X 1 | CU-SEAL RING 8 X 16 X 1 | 6 | — | Check availability | |
| 20 | 0770078020 O-RING 78,00X2,00 VIT. BLACK | O-RING 78,00X2,00 VIT. BLACK | 1 | — | Check availability | |
| 21 | 0770105020 O-ring 105x2 | O-ring 105x2 | 1 | — | Check availability | |
| 22 | 58336020090 VACUUM CONNECTION M 6X1 | VACUUM CONNECTION M 6X1 | 1 | — | Check availability | |
| 23 | 31007107001 PVC-HOSE 6X9 MM PER METER | PVC-HOSE 6X9 MM PER METER | 0 | — | Check availability | View Details |
| 24 | 50303089000 ANGLE PIECE '97 | ANGLE PIECE '97 | 1 | — | Check availability | |
| 25 | 0835100351 STUD DIN0835-M10X35 | STUD DIN0835-M10X35 | 4 | — | Check availability | |
| 27 | 54630044000 COLLAR NUT M10 WS=13 | COLLAR NUT M10 WS=13 | 4 | — | Check availability | View Details |
| 30 | 54830030002 GASKET CYLINDER BASE 0,2MM 03 | GASKET CYLINDER BASE 0,2MM 03 | 0 | — | Check availability | |
| 30 | 54830030004 GASKET CYLINDER BASE 0,4MM 03 | GASKET CYLINDER BASE 0,4MM 03 | 0 | — | Check availability | |
| 30 | 54830030005 GASKET CYLINDER BASE 0,5MM 03 | GASKET CYLINDER BASE 0,5MM 03 | 0 | — | Check availability | |
| 30 | 54830030075 GASKET CYLINDER BASE 0,75MM 03 | GASKET CYLINDER BASE 0,75MM 03 | 0 | — | Check availability | |
| 36 | 0770116241 O-RING 11,3 X2,4 SILICON | O-RING 11,3 X2,4 SILICON | 4 | — | Check availability | |
| 37 | 0770440030 O-RING 44,00X3,00 VITON | O-RING 44,00X3,00 VITON | 2 | — | Check availability | |
| 38 | 51005074000 RETAINING PLATE | RETAINING PLATE | 2 | — | Check availability | |
| 47 | 0912060303 AH SCREW DIN0912-M 6X30 | AH SCREW DIN0912-M 6X30 | 4 | — | Check availability | |
| 5 | 54830305144 CYLINDER 300 W. FLANGE 08 | CYLINDER 300 W. FLANGE 08 | 1 | — | Check availability | View Details |
| 50 | 58605083014 Oval head screw M5x14 TX25 | Oval head screw M5x14 TX25 | 6 | — | Check availability | |
| 51 | 0402040980 Needle roll.DIN5402 NRB 4X9.8 | Needle roll.DIN5402 NRB 4X9.8 | 2 | — | Check availability |
