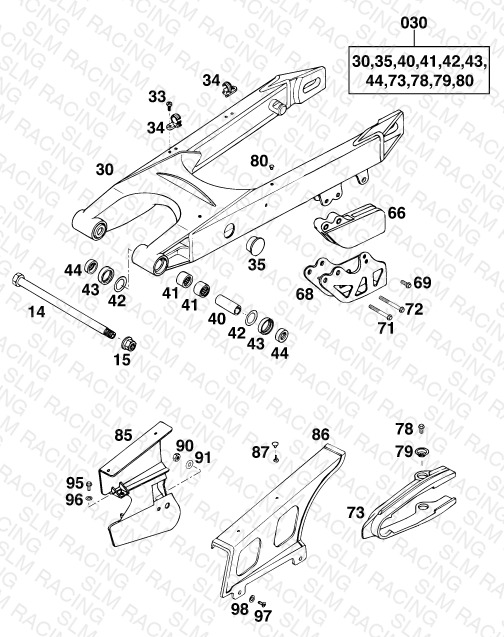

SWING ARM
Parts (29)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 14 | 54603014000 | 1 | — | Obsolete | View Details | |
| 15 | 54603015000 Self locking nut M14x1.5 WS19 | Self locking nut M14x1.5 WS19 | 1 | $6.48 | Available | 1 |
| 30 | 54603030100 | 1 | — | Obsolete | View Details | |
| 30 | 54603030144 SWINGARM CPL.'94 | SWINGARM CPL.'94 | 1 | — | Obsolete | View Details |
| 33 | 0010050103 SPECIAL SCREW M 5,0X10 | SPECIAL SCREW M 5,0X10 | 2 | $2.99 | Available | 2 |
| 34 | 54611076100 RETAIN.CLAMP FOR BRAKE HOSE'96 | RETAIN.CLAMP FOR BRAKE HOSE'96 | 2 | $2.99 | Available | 2 |
| 35 | 54603135000 PLUG MOSS FOR SWINGARM | PLUG MOSS FOR SWINGARM | 2 | — | Obsolete | View Details |
| 40 | 54603081000 Bushing sleeve 15x20x48 | Bushing sleeve 15x20x48 | 2 | $29.14 | Available | 2 |
| 41 | 54603097000 Needle bushing HK 2016 / 20x26 | Needle bushing HK 2016 / 20x26 | 4 | $17.70 | Available | 4 |
| 42 | 54603036000 STOP DISK 22,2X31,7X1 | STOP DISK 22,2X31,7X1 | 2 | $3.62 | Available | 2 |
| 43 | 0760253270 radial shaft seal 25x32x7 | radial shaft seal 25x32x7 | 4 | $7.80 | Available | 4 |
| 44 | 54603090000 BUCKET F.SHAFTSEALRING 15X25X9 | BUCKET F.SHAFTSEALRING 15X25X9 | 4 | $14.62 | Available | 4 |
| 66 | 54607066100 CHAIN GUIDE REAR '94 | CHAIN GUIDE REAR '94 | 1 | $33.65 | Available | 1 |
| 68 | 54607070100 RETAINING PLATE | RETAINING PLATE | 1 | — | Obsolete | View Details |
| 69 | 0015060163 HH COLLAR SCREW M 6X16 WS=8 | HH COLLAR SCREW M 6X16 WS=8 | 3 | $3.99 | Available | 3 |
| 71 | 0015060503 HH COLLAR SCREW M 6X50 WS=8 | HH COLLAR SCREW M 6X50 WS=8 | 6 | $3.99 | Available | 6 |
| 72 | 0015060553 HH COLLAR SCREW M 6X55 WS=8 | HH COLLAR SCREW M 6X55 WS=8 | 5 | — | Obsolete | View Details |
| 73 | 54607073000 CHAIN SLIDING GUARD 250 '90 | CHAIN SLIDING GUARD 250 '90 | 1 | — | Obsolete | View Details |
| 78 | 0015060123 HH COLLAR SCREW M 6X12 WS=8 | HH COLLAR SCREW M 6X12 WS=8 | 3 | $3.99 | Available | 3 |
| 79 | 72210079000 BUCKET | BUCKET | 2 | $3.99 | Available | 2 |
| 80 | 54603235000 DUMMY PLUG 4 MM | DUMMY PLUG 4 MM | — | — | Obsolete | View Details |
| 85 | 54607260100 CHAIN GUARD SMALL EGS '94 | CHAIN GUARD SMALL EGS '94 | 1 | — | Obsolete | View Details |
| 86 | 54607460000 CHAIN GUARD LARGE EGS | CHAIN GUARD LARGE EGS | 1 | — | Obsolete | View Details |
| 87 | 20012062055 HOLLOW RIVET TWO PARTS | HOLLOW RIVET TWO PARTS | 2 | $3.99 | Available | 2 |
| 90 | 0985060003 Self lock. nut DIN985-M6-A2 | Self lock. nut DIN985-M6-A2 | 1 | $2.99 | Available | 1 |
| 91 | 0021060003 Washer DIN9021-A 6.4 | Washer DIN9021-A 6.4 | 2 | $2.99 | Available | 2 |
| 95 | 0015050123 HH COLLAR SCREW M 5X12 WS=8 | HH COLLAR SCREW M 5X12 WS=8 | 1 | $3.99 | Available | 1 |
| 96 | 0125050003 WASHER DIN0125-A 5,3 | WASHER DIN0125-A 5,3 | 2 | $1.99 | Available | 2 |
| 98 | 0021050003 washer DIN 9021 A - 5.3 | washer DIN 9021 A - 5.3 | 2 | $1.99 | Available | 2 |
