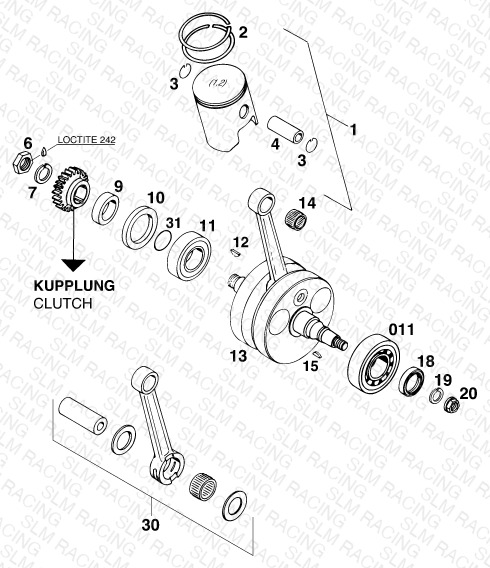

CRANKSHAFT, PISTON
Parts (27)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 54630007600 PISTON CPL. 67,5MM 250 EGS SGP | PISTON CPL. 67,5MM 250 EGS SGP | 1 | — | Obsolete | View Details |
| 1 | 54630307400 SERVICE TOOL H91 | SERVICE TOOL H91 | 1 | — | Obsolete | View Details |
| 1 | 54730007000 KOLBEN 360 CC 78,O MM * | KOLBEN 360 CC 78,O MM * | 1 | — | Obsolete | View Details |
| 2 | 54630032000 SQUARE RING 67,5X1 250 CC | SQUARE RING 67,5X1 250 CC | 2 | — | Obsolete | View Details |
| 2 | 54630332000 SQUARE RING 72,0X1,25 300 CC | SQUARE RING 72,0X1,25 300 CC | 2 | — | Obsolete | View Details |
| 2 | 54730032000 SQUARE R. 78,0X1,25 360/380 CC | SQUARE R. 78,0X1,25 360/380 CC | 2 | — | Obsolete | View Details |
| 3 | 54330074000 WIRE LOCK RING SKA 18 | WIRE LOCK RING SKA 18 | 2 | $11.43 | Available | 2 |
| 4 | 54630033000 PISTON PIN 18 X 44 | PISTON PIN 18 X 44 | 1 | — | Obsolete | View Details |
| 4 | 54730033000 PISTON PIN 18 X 48 | PISTON PIN 18 X 48 | 1 | — | Obsolete | View Details |
| 6 | 54630029000 HEX.NUT L/SH M18X1,5 | HEX.NUT L/SH M18X1,5 | 1 | $12.53 | Available | 1 |
| 7 | 58132072000 LOCK WASHER VSK 18 | LOCK WASHER VSK 18 | 1 | $2.99 | Available | 1 |
| 9 | 54630016400 SPACER SLEEVE 28X38X11,5 | SPACER SLEEVE 28X38X11,5 | 1 | — | Obsolete | View Details |
| 10 | 0760385273 SHAFT SEAL RING 38X52X7BTSL | SHAFT SEAL RING 38X52X7BTSL | 1 | $25.95 | Available | 1 |
| 11 | 0625622064 BALL BEARING 62206.803107 | BALL BEARING 62206.803107 | 1 | — | Obsolete | View Details |
| 11 | 56530123100 CYLIND.ROLL.BEARING | CYLIND.ROLL.BEARING | 1 | $125.94 | Backorder — Restocking | 1 |
| 12 | 0888050650 WOODRUFF KEY DIN6888-5X6,5 | WOODRUFF KEY DIN6888-5X6,5 | 1 | — | Obsolete | View Details |
| 13 | 54630018400 % CRANKSHAFT STROKE 69,5 "250" | % CRANKSHAFT STROKE 69,5 "250" | 1 | — | Obsolete | View Details |
| 13 | 54630318400 CRANKSHAFT STROKE 73 ''300'' | CRANKSHAFT STROKE 73 ''300'' | 1 | — | Obsolete | View Details |
| 13 | 54730018400 CRANKSHAFT HUB 74 "360" | CRANKSHAFT HUB 74 "360" | 1 | — | Obsolete | View Details |
| 14 | 54430034000 NEEDLE BEARING KBK 18X22X20 | NEEDLE BEARING KBK 18X22X20 | 1 | $24.63 | Available | 1 |
| 15 | 0888030050 WOODRUFF KEY DIN6888-3X5X13 | WOODRUFF KEY DIN6888-3X5X13 | 1 | $2.99 | Available | 1 |
| 18 | 0760253570 SHAFT SEAL RING 25X35X7 BTSL | SHAFT SEAL RING 25X35X7 BTSL | 1 | $20.23 | Available | 1 |
| 19 | 50230029012 LOCKING RING VSK 12 | LOCKING RING VSK 12 | 1 | $2.99 | Available | 1 |
| 20 | 49030021000 COLLAR NUT M12X1 R/S | COLLAR NUT M12X1 R/S | 1 | $2.99 | Available | 1 |
| 30 | 54630015044 CONR.REP.KIT 250/300 132MM '96 | CONR.REP.KIT 250/300 132MM '96 | 1 | — | Obsolete | View Details |
| 30 | 54730015000 CONR.REP.KIT 360/380 135MM '97 | CONR.REP.KIT 360/380 135MM '97 | 1 | — | Obsolete | View Details |
| 31 | 0770250015 O-RING 25,00X1,50 NBR 70 | O-RING 25,00X1,50 NBR 70 | 1 | $1.99 | Available | 1 |
