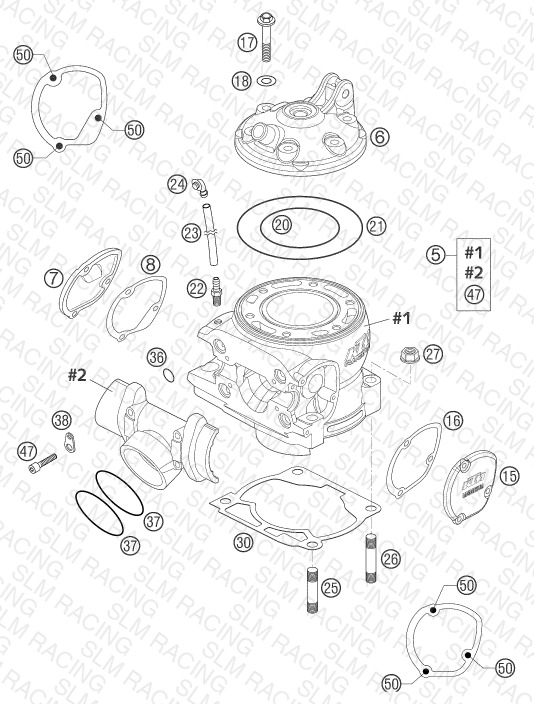

CYLINDER, CYLINDER HEAD
Parts (29)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 5 | 54830005144 CYLINDER CPL. W. FLANGE 250 04 | CYLINDER CPL. W. FLANGE 250 04 | 1 | — | Obsolete | View Details |
| 5 | 54830305044 CYLINDER CPL. W. FLANGE 300 04 | CYLINDER CPL. W. FLANGE 300 04 | 1 | — | Obsolete | View Details |
| 6 | 54830006000 CYLINDER HEAD 250 SX 2003 | CYLINDER HEAD 250 SX 2003 | 1 | — | Obsolete | View Details |
| 6 | 54830006100 CYLINDER HEAD 250EXC ''2508'' | CYLINDER HEAD 250EXC ''2508'' | 1 | — | Obsolete | View Details |
| 6 | 54830306000 CYLINDER HEAD 300 ''3003'' | CYLINDER HEAD 300 ''3003'' | 1 | — | Obsolete | View Details |
| 7 | 5473700700098 CONTROL COVER R/S 2001 | CONTROL COVER R/S 2001 | 1 | — | Obsolete | View Details |
| 8 | 54737008000 GASKET FOR CONTROL COVER R/S | GASKET FOR CONTROL COVER R/S | 1 | $6.15 | Available | 1 |
| 15 | 5473700500098 CONTROL COVER L/S 2001 | CONTROL COVER L/S 2001 | 1 | — | Obsolete | View Details |
| 16 | 54737006000 GASKET FOR CONTROL COVER L/S | GASKET FOR CONTROL COVER L/S | 1 | $6.15 | Available | 1 |
| 17 | 54830079000 COLLAR SCREW M 8X35 WS=13 | COLLAR SCREW M 8X35 WS=13 | 6 | $4.99 | Available | 6 |
| 18 | 56530080000 CU-SEAL RING 8 X 16 X 1 | CU-SEAL RING 8 X 16 X 1 | 6 | $2.99 | Available | 6 |
| 20 | 0770740021 0-RING 74,00X2,00 SILICONE | 0-RING 74,00X2,00 SILICONE | 1 | $6.26 | Available | 1 |
| 20 | 0770790021 O-RING 79,00X2,00 SILICONE | O-RING 79,00X2,00 SILICONE 300 | 1 | — | Obsolete | View Details |
| 21 | 0770114020 O-RING 114,00X2,00 SILICONE | O-RING 114,00X2,00 SILICONE | 1 | $8.90 | Available | 1 |
| 22 | 58336020090 VACUUM CONNECTION M 6X1 | VACUUM CONNECTION M 6X1 | 1 | $7.80 | Available | 1 |
| 23 | 31007107001 PVC-HOSE 6X9 MM PER METER | PVC-HOSE 6X9 MM PER METER | — | $7.91 | Available | 1 |
| 24 | 50303089000 ANGLE PIECE '97 | ANGLE PIECE '97 | 1 | $6.15 | Available | 1 |
| 25 | 0835100351 STUD DIN0835-M10X35 | STUD DIN0835-M10X35 | 4 | $6.15 | Available | 4 |
| 26 | 0835100403 STUD DIN0835-M10X40 | STUD DIN0835-M10X40 | 4 | — | Obsolete | View Details |
| 27 | 54630044000 COLLAR NUT M10 WS=13 | COLLAR NUT M10 WS=13 | 1 | $1.99 | Available | 1 |
| 30 | 54830030002 GASKET CYLINDER BASE 0,2MM 03 | GASKET CYLINDER BASE 0,2MM 03 | — | $7.69 | Available | 1 |
| 30 | 54830030004 GASKET CYLINDER BASE 0,4MM 03 | GASKET CYLINDER BASE 0,4MM 03 | — | $7.58 | Available | 1 |
| 30 | 54830030005 GASKET CYLINDER BASE 0,5MM 03 | GASKET CYLINDER BASE 0,5MM 03 | — | $7.14 | Available | 1 |
| 30 | 54830030075 GASKET CYLINDER BASE 0,75MM 03 | GASKET CYLINDER BASE 0,75MM 03 | — | $9.12 | Available | 1 |
| 36 | 0770116241 O-RING 11,3 X2,4 SILICON | O-RING 11,3 X2,4 SILICON | 4 | $3.99 | Available | 4 |
| 37 | 0770440030 O-RING 44,00X3,00 VITON | O-RING 44,00X3,00 VITON | 2 | $4.99 | Available | 2 |
| 38 | 51005074000 RETAINING PLATE | RETAINING PLATE | 2 | $3.99 | Available | 2 |
| 47 | 0912060303 AH SCREW DIN0912-M 6X30 | AH SCREW DIN0912-M 6X30 | 4 | $2.99 | Available | 4 |
| 50 | 0014050123 HH COLLAR SCREW M 5X12 WS=6 | HH COLLAR SCREW M 5X12 WS=6 | 4 | $2.99 | Available | 4 |
