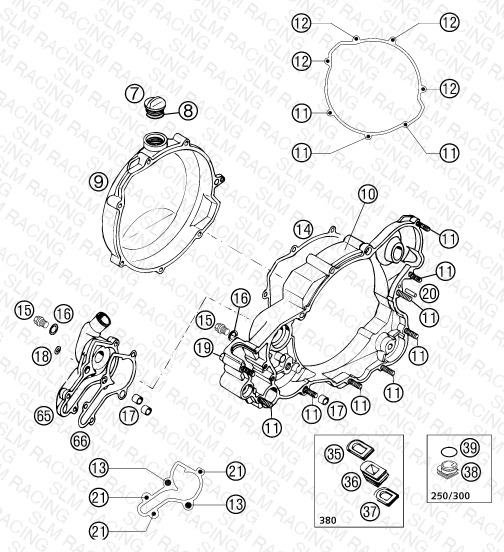

CLUTCH COVER
Parts (22)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 7 | 58030020000 PLUG M 24X3 | PLUG M 24X3 | 1 | — | Check availability | View Details |
| 8 | 0770160030 O-RING 16,00X3,00 NBR 70 | O-RING 16,00X3,00 NBR 70 | 1 | — | Check availability | |
| 9 | 5463010100098 OUTER CLUTCH COVER 2001 | OUTER CLUTCH COVER 2001 | 1 | — | Check availability | View Details |
| 10 | 54630001300 CLUTCH COVER 250/300/360 '96 | CLUTCH COVER 250/300/360 '96 | 1 | — | Check availability | View Details |
| 11 | 0015060303 HH COLLAR SCREW M 6X30 SW=8 | HH COLLAR SCREW M 6X30 SW=8 | 11 | — | Check availability | View Details |
| 12 | 0015060703 HH COLLAR SCREW M 6X70 WS=8 | HH COLLAR SCREW M 6X70 WS=8 | 4 | — | Check availability | View Details |
| 13 | 0015060253 HH COLLAR SCREW M 6X25 WS=8 | HH COLLAR SCREW M 6X25 WS=8 | 2 | — | Check availability | View Details |
| 14 | 54630025050 OUTER CLUTCH COVER GASKET | OUTER CLUTCH COVER GASKET | 1 | — | Check availability | |
| 15 | 0910100003 PLUG DIN0910-M 10X1 | PLUG DIN0910-M 10X1 | 2 | — | Check availability | |
| 16 | 42013226000 CU-SEAL RING DIN7603-10X16X1 | CU-SEAL RING DIN7603-10X16X1 | 2 | — | Check availability | |
| 17 | 49030090000 DOWEL 9,8 X 7 X 10 | DOWEL 9,8 X 7 X 10 | 3 | — | Check availability | View Details |
| 18 | 0603061001 CU-SEAL RING DIN7603-6X10X1 | CU-SEAL RING DIN7603-6X10X1 | 2 | — | Check availability | |
| 19 | 0015060453 HH COLLAR SCREW M 6X45 WS=8 | HH COLLAR SCREW M 6X45 WS=8 | 1 | — | Check availability | View Details |
| 20 | 0007050160 CYLINDER PIN DIN 7-5X16MM (M6) | CYLINDER PIN DIN 7-5X16MM (M6) | 1 | — | Check availability | View Details |
| 21 | 0015060203 HH COLLAR SCREW M 6X20 WS=8 | HH COLLAR SCREW M 6X20 WS=8 | 3 | — | Check availability | View Details |
| 35 | 54637207000 SEALING ELEMENT TOP | SEALING ELEMENT TOP | 1 | — | Check availability | |
| 36 | 54637007000 GASKET | GASKET | 1 | — | Check availability | View Details |
| 37 | 54637107000 SEALING ELEMENT BOTTOM | SEALING ELEMENT BOTTOM | 1 | — | Check availability | |
| 38 | 54737091000 SEALING CARRIER 250 2000 | SEALING CARRIER 250 2000 | 1 | — | Check availability | View Details |
| 39 | 0770021160 0-RING 18,72X2,62 | 0-RING 18,72X2,62 | 1 | — | Check availability | View Details |
| 65 | 54635001000 WATER PUMP COVER | WATER PUMP COVER | 1 | — | Check availability | View Details |
| 66 | 54635003200 WATER PUMP COVER GASKET | WATER PUMP COVER GASKET | 1 | — | Check availability |
