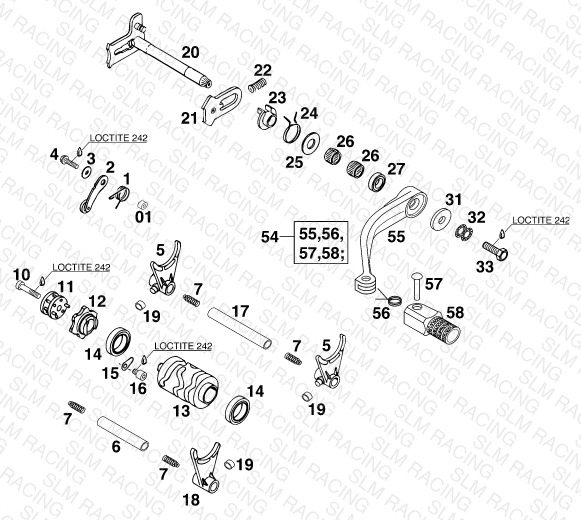

SHIFTING MECHANISM
Parts (33)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 54634023300 LOCKING LEVER SPRING '96 | LOCKING LEVER SPRING '96 | 1 | — | Obsolete | View Details |
| 1 | 54634052300 SLEEVE FOR LOCKING LEVER | SLEEVE FOR LOCKING LEVER | 1 | $3.99 | Available | 1 |
| 2 | 54634024144 LOCKING LEVER CPL '96 | LOCKING LEVER CPL '96 | 1 | $18.91 | Available | 1 |
| 3 | 0021050003 washer DIN 9021 A - 5.3 | washer DIN 9021 A - 5.3 | 2 | $1.99 | Available | 2 |
| 4 | 0015050203 HH COLLAR SCREW M 5X20 WS=8 | HH COLLAR SCREW M 5X20 WS=8 | 1 | $2.99 | Available | 1 |
| 5 | 54734002000 SHIFTING FORK 1./3.GEAR+2.G'99 | SHIFTING FORK 1./3.GEAR+2.G'99 | 2 | — | Obsolete | View Details |
| 6 | 54734019000 SHIFTING RAIL 75,8MM MAINS.'99 | SHIFTING RAIL 75,8MM MAINS.'99 | 1 | — | Obsolete | View Details |
| 7 | 58038023200 PRESSURE SPRING 0,9MM | PRESSURE SPRING 0,9MM | 3 | $4.99 | Available | 3 |
| 10 | 0912060303 AH SCREW DIN0912-M 6X30 | AH SCREW DIN0912-M 6X30 | 4 | $2.99 | Available | 4 |
| 11 | 54634013044 DRIVER F.SHIFT ROLLER W.NEED | DRIVER F.SHIFT ROLLER W.NEED | 1 | — | Obsolete | View Details |
| 12 | 54634015000 LOCKING ROLLER | LOCKING ROLLER | 1 | — | Obsolete | View Details |
| 13 | 54734012000 SHIFT ROLLER 250-380 '99 | SHIFT ROLLER 250-380 '99 | 1 | — | Obsolete | View Details |
| 14 | 0625618050 BALL BEARING 61805 C3 | BALL BEARING 61805 C3 | 1 | $51.69 | Available | 1 |
| 15 | 54634049000 RETAINING PLATE | RETAINING PLATE | 2 | $4.99 | Available | 2 |
| 16 | 0912060083 AH collar screw DIN 912 M6x8 | AH collar screw DIN 912 M6x8 | 1 | $2.99 | Available | 1 |
| 17 | 54734020000 SHIFTING RAIL 96,8MM COUNT.'99 | SHIFTING RAIL 96,8MM COUNT.'99 | 1 | — | Obsolete | View Details |
| 18 | 54734001000 SHIFTING FORK 4./5.GANG '99 | SHIFTING FORK 4./5.GANG '99 | 1 | — | Obsolete | View Details |
| 19 | 50334018100 SHIFTING ROLLER 6X8X5,2 | SHIFTING ROLLER 6X8X5,2 | 3 | $4.99 | Available | 3 |
| 20 | 54634005044 SHIFTING SHAFT CPL | SHIFTING SHAFT CPL | 1 | — | Obsolete | View Details |
| 21 | 54634008000 SLIDING PLATE | SLIDING PLATE | 1 | — | Obsolete | View Details |
| 22 | 56534013100 TENSIONING SPRING 0,8MM | TENSIONING SPRING 0,8MM | 1 | $1.99 | Available | 1 |
| 23 | 54634020000 SPRING GUIDE | SPRING GUIDE | 1 | $7.58 | Available | 1 |
| 24 | 54634014100 RETURN SPRING 2,2MM '95 | RETURN SPRING 2,2MM '95 | 1 | $7.80 | Available | 1 |
| 25 | 54634050000 STOP DISK 14X30X1 | STOP DISK 14X30X1 | 1 | $2.99 | Available | 1 |
| 26 | 54632095000 needle sleeve HK 1412 14x20x12 | needle sleeve HK 1412 14x20x12 | 2 | $8.24 | Available | 2 |
| 27 | 0760142460 radial shaft seal 14x24x6 B | radial shaft seal 14x24x6 B | 1 | $10.88 | Available | 1 |
| 31 | 50232050001 STEEL WASHER 6,4X17X3 | STEEL WASHER 6,4X17X3 | 1 | $6.15 | Available | 1 |
| 32 | 50233041000 Pair of washers M6 NORDLOCK | Pair of washers M6 NORDLOCK | 2 | $4.99 | Available | 2 |
| 33 | 0933060165 HH SCREW DIN0933-M 6X16 10.9 | HH SCREW DIN0933-M 6X16 10.9 | 1 | $2.99 | Available | 1 |
| 54 | 54634031044 SHIFT LEVER CPL. 2-STROKE | SHIFT LEVER CPL. 2-STROKE | 1 | $107.35 | Available | 1 |
| 56 | 54634032100 SHIFTING LEVER SPRING 250 | SHIFTING LEVER SPRING 250 | 1 | $3.99 | Available | 1 |
| 57 | 54634031050 BOLT 6X25 FOR SHIFT LEVER | BOLT 6X25 FOR SHIFT LEVER | 1 | $9.23 | Available | 1 |
| 58 | 54634131000 STEP PLATE FOR SHIFT LEVER 250 | STEP PLATE FOR SHIFT LEVER 250 | 1 | $37.17 | Available | 1 |
