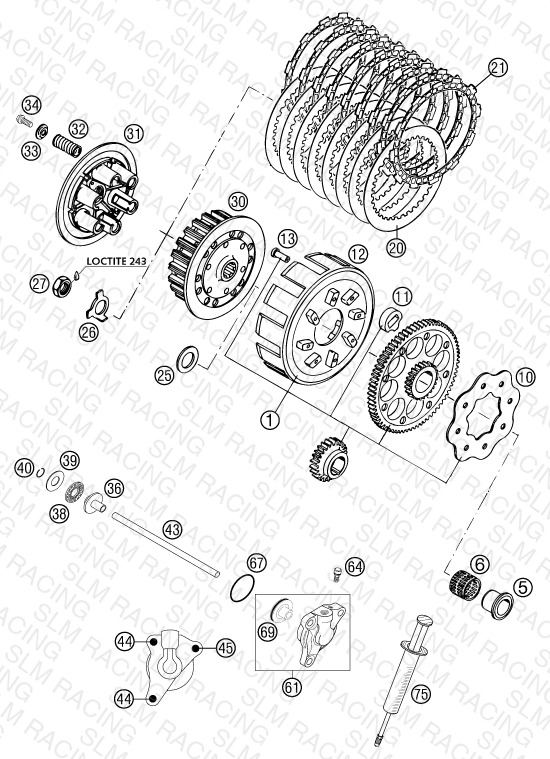

CLUTCH
Parts (30)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 54632001272 OUTER CLUTCH HUB 72T PRIM. 25T | OUTER CLUTCH HUB 72T PRIM. 25T | 1 | — | Obsolete | View Details |
| 1 | 54632001372 OUTER CLUTCH HUB 72T PRIM. 26T | OUTER CLUTCH HUB 72T PRIM. 26T | 1 | — | Obsolete | View Details |
| 5 | 50332070000 INNER RING WITH COLLAR | INNER RING WITH COLLAR | 1 | $57.96 | Available | 1 |
| 6 | 56532095000 NEEDLE BEARING K26X30X22ZW.KSE | NEEDLE BEARING K26X30X22ZW.KSE | 1 | $28.04 | Available | 1 |
| 10 | 58132028000 RETAINING PLATE | RETAINING PLATE | 1 | — | Obsolete | View Details |
| 11 | 58132026000 DAMPING ELEMENT | DAMPING ELEMENT | 8 | $7.14 | Available | 8 |
| 12 | 54632001200 OUTER CLUTCH HUB LOOSE | OUTER CLUTCH HUB LOOSE | 1 | — | Obsolete | View Details |
| 13 | 0733060150 CLUTCH RIVET DIN7338- 6X15 | CLUTCH RIVET DIN7338- 6X15 | 8 | $9.23 | Available | 8 |
| 20 | 54632012000 STEEL DISK 1,2 MM | STEEL DISK 1,2 MM | 8 | $13.08 | Available | 8 |
| 21 | 54632011300 LINING DISK 2,7 MM '96 | LINING DISK 2,7 MM '96 | 9 | $28.37 | Available | 9 |
| 25 | 57532013000 SUPPORTWASHER 22,2X35X3 HARDE. | SUPPORTWASHER 22,2X35X3 HARDE. | 1 | — | Obsolete | View Details |
| 26 | 56532018000 LOCK WASHER | LOCK WASHER | 1 | $7.36 | Available | 1 |
| 27 | 0936181505 HEXAGON NUT DIN0936-M18X1,5 R. | HEXAGON NUT DIN0936-M18X1,5 R. | 1 | $9.12 | Available | 1 |
| 30 | 54632002200 INNER CLUTCH HUB | INNER CLUTCH HUB | 1 | — | Obsolete | View Details |
| 31 | 54632003000 PRESSURE CAP 250-380 '98 | PRESSURE CAP 250-380 '98 | 1 | $92.83 | Available | 1 |
| 32 | 54632080000 CLUTCH SPRING 2,5X43 8,5W | CLUTCH SPRING 2,5X43 8,5W | 6 | $8.13 | Available | 6 |
| 33 | 58132081000 SPRING RETAINER 6,2 X 20 X 3,2 | SPRING RETAINER 6,2 X 20 X 3,2 | 6 | $3.99 | Available | 6 |
| 34 | 0015060163 HH COLLAR SCREW M 6X16 WS=8 | HH COLLAR SCREW M 6X16 WS=8 | 3 | $3.99 | Available | 3 |
| 36 | 50332054051 PRESSURE PIECE 125-380 '98 | PRESSURE PIECE 125-380 '98 | 1 | $31.12 | Available | 1 |
| 38 | 54637097200 AXIAL NEEDLE BEARING AXK 1226 | AXIAL NEEDLE BEARING AXK 1226 | 1 | $11.98 | Available | 1 |
| 39 | 54637098200 AXIAL WASHER AS1226 12X26X1 | AXIAL WASHER AS1226 12X26X1 | 1 | $6.15 | Available | 1 |
| 39 | 54637098300 AXIAL WASHER 12,5X25,8X1,5 | AXIAL WASHER 12,5X25,8X1,5 | — | $6.15 | Available | 1 |
| 40 | 0993012000 CIRCLIP DIN7993-RW12 | CIRCLIP DIN7993-RW12 | 1 | $3.99 | Available | 1 |
| 43 | 54732054000 PUSH ROD L=199,8MM 250-380 '99 | PUSH ROD L=199,8MM 250-380 '99 | 1 | — | Obsolete | View Details |
| 45 | 0015060203 HH COLLAR SCREW M 6X20 WS=8 | HH COLLAR SCREW M 6X20 WS=8 | 6 | $3.99 | Available | 6 |
| 61 | 54732061044 CYLINDER CPL. 250-380 '99 | CYLINDER CPL. 250-380 '99 | 1 | $283.24 | Available | 1 |
| 64 | 54732064000 BLEEDER SCREW WITH CAP | BLEEDER SCREW WITH CAP | 1 | $25.84 | Available | 1 |
| 67 | 0770300015 O-ring 30x1.5 NBR 70 | O-ring 30x1.5 NBR 70 | 1 | $2.99 | Available | 1 |
| 69 | 54632066000 PISTON W. O-RING 250-380 '00 | PISTON W. O-RING 250-380 '00 | 1 | $283.24 | Available | 1 |
| 75 | 50329050000 VENT INJEKTION HYDR. CLUTCH | VENT INJEKTION HYDR. CLUTCH | 1 | $63.24 | Available | 1 |
