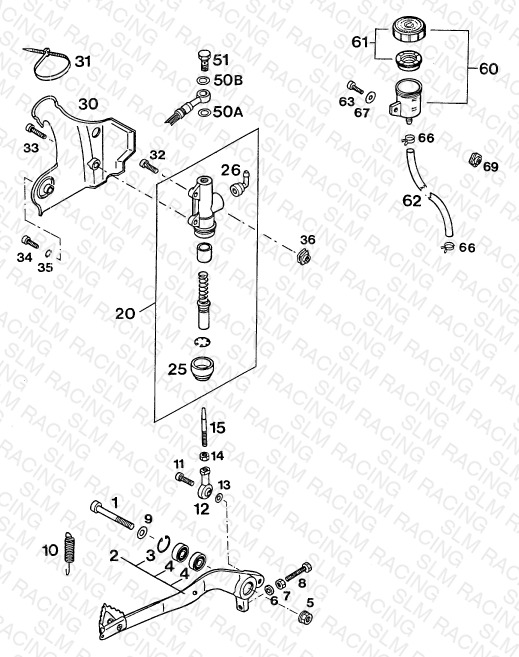

REAR BRAKE CONTROL
Parts (43)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 0 | 42013026000 CU-SEAL RING DIN7603-10X16X1,5 | CU-SEAL RING DIN7603-10X16X1,5 | 1 | — | Check availability | View Details |
| 0 | 42013226000 CU-SEAL RING DIN7603-10X16X1 | CU-SEAL RING DIN7603-10X16X1 | 1 | — | Check availability | |
| 1 | 0015080603 HH COLLAR SCREW M 8X60 WS=10 | HH COLLAR SCREW M 8X60 WS=10 | 1 | — | Check availability | |
| 1 | 0912080603 AH SCREW DIN0912-M 8X60 | AH SCREW DIN0912-M 8X60 | 0 | — | Check availability | View Details |
| 2 | 54603060144 FOOT BRAKE LEVER CPL. 250'91 | FOOT BRAKE LEVER CPL. 250'91 | 1 | — | Check availability | View Details |
| 3 | 0472022150 CIRCLIP DIN0472-22X1,5 | CIRCLIP DIN0472-22X1,5 | 1 | — | Check availability | View Details |
| 4 | 0625006087 Grooved ball bearing 608 2RS C | Grooved ball bearing 608 2RS C | 2 | — | Check availability | |
| 5 | 54310086000 | 1 | — | Check availability | ||
| 6 | 12011016000 WASHER 6 X 12 X 3 | WASHER 6 X 12 X 3 | 2 | — | Check availability | |
| 7 | 0934060003 Hex. nut DIN 934 M6 | Hex. nut DIN 934 M6 | 1 | — | Check availability | |
| 8 | 0933060353 HH SCREW DIN0933-M 6X35 | HH SCREW DIN0933-M 6X35 | 1 | — | Check availability | |
| 9 | 0125080003 washer DIN 125 A -8.4 | washer DIN 125 A -8.4 | 1 | — | Check availability | |
| 10 | 54603062000 RETURN SPRING FOR BRAKELEVER | RETURN SPRING FOR BRAKELEVER | 1 | — | Check availability | View Details |
| 11 | 0015060253 HH COLLAR SCREW M 6X25 WS=8 | HH COLLAR SCREW M 6X25 WS=8 | 1 | — | Check availability | View Details |
| 11 | 0912060253 AH SCREW DIN0912-M 6X25 | AH SCREW DIN0912-M 6X25 | 0 | — | Check availability | |
| 12 | 54603069000 SWIVEL HEAD M6 FOOT BRAKE LEV. | SWIVEL HEAD M6 FOOT BRAKE LEV. | 1 | — | Check availability | |
| 13 | 0125060003 WASHER DIN0125-A 6,4 | WASHER DIN0125-A 6,4 | 1 | — | Check availability | |
| 14 | 0934060003 Hex. nut DIN 934 M6 | Hex. nut DIN 934 M6 | 1 | — | Check availability | |
| 15 | 54603068000 PRESSURE ROD ALU 250 '90 | PRESSURE ROD ALU 250 '90 | 1 | — | Check availability | |
| 20 | 54513101044 MAIN BRAKE CYLINDER '89 | MAIN BRAKE CYLINDER '89 | 1 | — | Check availability | View Details |
| 24 | 54513150000 REPAIR KIT PISTON 13MM | REPAIR KIT PISTON 13MM | 1 | — | Check availability | |
| 25 | 54513151000 RUBBER SLEEVE | RUBBER SLEEVE | 1 | — | Check availability | |
| 26 | 54513155000 ANGLE PIECE | ANGLE PIECE | 1 | — | Check availability | |
| 30 | 54613038000 BRAKE CYLIND. PROTECTOR 250' | BRAKE CYLIND. PROTECTOR 250' | 1 | — | Check availability | |
| 31 | 44011076200 Cable tie 200/4.6mm black | Cable tie 200/4.6mm black | 1 | — | Check availability | |
| 32 | 0015060203 HH COLLAR SCREW M 6X20 WS=8 | HH COLLAR SCREW M 6X20 WS=8 | 1 | — | Check availability | View Details |
| 32 | 0912060203 AH SCREW DIN0912-M 6X20 | AH SCREW DIN0912-M 6X20 | 0 | — | Check availability | |
| 33 | 0015060253 HH COLLAR SCREW M 6X25 WS=8 | HH COLLAR SCREW M 6X25 WS=8 | 1 | — | Check availability | View Details |
| 33 | 0912060253 AH SCREW DIN0912-M 6X25 | AH SCREW DIN0912-M 6X25 | 0 | — | Check availability | |
| 34 | 0912050203 AH SCREW DIN0912-M 5X20 | AH SCREW DIN0912-M 5X20 | 0 | — | Check availability | |
| 34 | 0933050203 HH SCREW DIN933 M5x20 | HH SCREW DIN933 M5x20 | 1 | — | Check availability | |
| 35 | 50233041000 Pair of washers M6 NORDLOCK | Pair of washers M6 NORDLOCK | 1 | — | Check availability | |
| 36 | 50235033300 SNAP-NUT HOLDER M6 KP142 | SNAP-NUT HOLDER M6 KP142 | 2 | — | Check availability | View Details |
| 37 | 54613038050 *BUSHING-FRAME PROTECT.8X1X5,5 | *BUSHING-FRAME PROTECT.8X1X5,5 | 1 | — | Check availability | |
| 51 | 50213025000 HOLLOW SCREW M10X1X19 | HOLLOW SCREW M10X1X19 | 1 | — | Check availability | |
| 60 | 54513030044 BRAKE FLUID RESERVOIR '89 | BRAKE FLUID RESERVOIR '89 | 1 | — | Check availability | |
| 61 | 54513031044 SCREW CAP FOR RESERVOIR | SCREW CAP FOR RESERVOIR | 1 | — | Check availability | |
| 62 | 58007016101 HOSE FOR RESERVOIR 6X1,5 | HOSE FOR RESERVOIR 6X1,5 | 0 | — | Check availability | View Details |
| 63 | 0912050163 AH collar screw DIN 912 M5x16 | AH collar screw DIN 912 M5x16 | 0 | — | Check availability | |
| 63 | 0933050163 HH SCREW DIN0933-M 5X16 | HH SCREW DIN0933-M 5X16 | 1 | — | Check availability | |
| 66 | 58007017000 YDNAC-clamp 10101 (10.4MM) | YDNAC-clamp 10101 (10.4MM) | 2 | — | Check availability | |
| 67 | 0021050003 washer DIN 9021 A - 5.3 | washer DIN 9021 A - 5.3 | 1 | — | Check availability | |
| 69 | 50235033000 SNAP-NUT HOLDER M5 KP142 | SNAP-NUT HOLDER M5 KP142 | 1 | — | Check availability | View Details |
