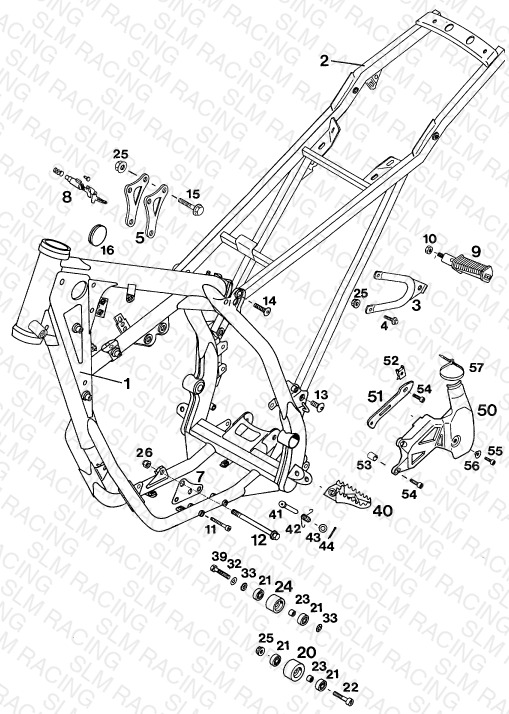

FRAME
Parts (49)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 0 | 49003350000 FOOTREST REAR R/S CPL. | FOOTREST REAR R/S CPL. | 1 | — | Check availability | |
| 0 | 5460314000019 FOOTREST R/S '93 | FOOTREST R/S '93 | 1 | — | Check availability | |
| 0 | 58303103000 *FOOT REST BRACKET REAR R/S 93 | *FOOT REST BRACKET REAR R/S 93 | 1 | — | Check availability | |
| 1 | 54603101500 * FRAME 250/300 SX USA '94 | * FRAME 250/300 SX USA '94 | 1 | — | Check availability | |
| 1 | 54603401500 FRAME SX,MXC,EXC,EGS '94 | FRAME SX,MXC,EXC,EGS '94 | 1 | — | Check availability | |
| 2 | 54603002100 * SUBFRAME ALU MX,EXC,EGS '94 | * SUBFRAME ALU MX,EXC,EGS '94 | 1 | — | Check availability | |
| 2 | 54603202100 % SUBFRAME STEEL '94 | % SUBFRAME STEEL '94 | 1 | — | Check availability | |
| 2 | 54603402000 % SUBFRAME STEEL '94 | % SUBFRAME STEEL '94 | 1 | — | Check availability | |
| 3 | 58303003000 FOOTREST BRACKET REAR L/S | FOOTREST BRACKET REAR L/S | 1 | — | Check availability | View Details |
| 4 | 0015080163 HH COLLAR SCREW M 8X16 WS=10 | HH COLLAR SCREW M 8X16 WS=10 | 4 | — | Check availability | View Details |
| 5 | 54603045100 * ENGINE BRACE 250/300/360 '94 | * ENGINE BRACE 250/300/360 '94 | 2 | — | Check availability | |
| 7 | 54603055000 ENGINE MOUNTING 250/300 '90 | ENGINE MOUNTING 250/300 '90 | 1 | — | Check availability | View Details |
| 8 | 44003007000 STEERING HEAD LOCK | STEERING HEAD LOCK | 1 | — | Check availability | |
| 9 | 49003250000 FOOTREST REAR L/S CPL. | FOOTREST REAR L/S CPL. | 1 | — | Check availability | View Details |
| 10 | 0934100003 HEXAGON NUT DIN0934-M10 | HEXAGON NUT DIN0934-M10 | 2 | — | Check availability | View Details |
| 11 | 0015060403 HH COLLAR SCREW M 6X40 WS=8 | HH COLLAR SCREW M 6X40 WS=8 | 2 | — | Check availability | View Details |
| 11 | 0912060403 AH SCREW DIN0912-M 6X40 | AH SCREW DIN0912-M 6X40 | 0 | — | Check availability | |
| 12 | 54603013000 engine brac.scr. M10x105 WS13 | engine brac.scr. M10x105 WS13 | 2 | — | Check availability | |
| 13 | 54610052000 SPROCKET SCREW-AH M8X20 WS=6 | SPROCKET SCREW-AH M8X20 WS=6 | 2 | — | Check availability | View Details |
| 14 | 54510052000 SPROCKET SCREW-AH M 8X26 | SPROCKET SCREW-AH M 8X26 | 2 | — | Check availability | |
| 15 | 56530079000 HH COLLAR SCREW M 8X44 WS13 | HH COLLAR SCREW M 8X44 WS13 | 3 | — | Check availability | View Details |
| 16 | 54606004000 PLUG 37MM | PLUG 37MM | 2 | — | Check availability | |
| 20 | 50203053100 CHAIN ROLL D=35MM | CHAIN ROLL D=35MM | 1 | — | Check availability | |
| 21 | 0625006087 Grooved ball bearing 608 2RS C | Grooved ball bearing 608 2RS C | 4 | — | Check availability | |
| 22 | 0015080353 HH COLLAR SCREW M 8X35 WS=10 | HH COLLAR SCREW M 8X35 WS=10 | 1 | — | Check availability | View Details |
| 22 | 0912080353 AH SCREW DIN0912-M 8X35 | AH SCREW DIN0912-M 8X35 | 0 | — | Check availability | |
| 23 | 74003021000 BUSHING 8.2 X 12 X 6 | BUSHING 8.2 X 12 X 6 | 2 | — | Check availability | |
| 24 | 50203053000 CHAIN ROLL D=30MM | CHAIN ROLL D=30MM | 1 | — | Check availability | |
| 25 | 54310086000 | 6 | — | Check availability | ||
| 26 | 54310086100 SELF LOCKING NUT M10 CU WS=14 | SELF LOCKING NUT M10 CU WS=14 | 2 | — | Check availability | |
| 32 | 50203028000 WINDOW PANE 8,4X14X1MM | WINDOW PANE 8,4X14X1MM | 1 | — | Check availability | View Details |
| 33 | 36003014000 LOCK WASHER 8MM | LOCK WASHER 8MM | 2 | — | Check availability | |
| 39 | 0015080353 HH COLLAR SCREW M 8X35 WS=10 | HH COLLAR SCREW M 8X35 WS=10 | 1 | — | Check availability | View Details |
| 39 | 0933080353 HH SCREW DIN933 M8x35 | HH SCREW DIN933 M8x35 | 0 | — | Check availability | View Details |
| 40 | 5460304000019 FOOT REST L/S '93 | FOOT REST L/S '93 | 1 | — | Check availability | View Details |
| 41 | 54603044000 BOLT FOR FOOTREST 9,8 X 50 | BOLT FOR FOOTREST 9,8 X 50 | 2 | — | Check availability | View Details |
| 42 | 54603041000 FOOTREST SPRING L/S & R/S | FOOTREST SPRING L/S & R/S | 2 | — | Check availability | |
| 43 | 0125100003 washer DIN 125 A 10.5 | washer DIN 125 A 10.5 | 2 | — | Check availability | |
| 44 | 0094032253 PIN DIN0094-3,2X25 STEEL | PIN DIN0094-3,2X25 STEEL | 2 | — | Check availability | View Details |
| 50 | 54607061000 SPROCKET COVER | SPROCKET COVER | 1 | — | Check availability | View Details |
| 51 | 54630061000 CHAIN SLIDING PLATE 14 T/15 T | CHAIN SLIDING PLATE 14 T/15 T | 1 | — | Check availability | View Details |
| 52 | 54603048100 clip nut M6 | clip nut M6 | 1 | — | Check availability | |
| 53 | 54613038150 BUSHING 6,5X8X11 | BUSHING 6,5X8X11 | 2 | — | Check availability | |
| 54 | 0015060203 HH COLLAR SCREW M 6X20 WS=8 | HH COLLAR SCREW M 6X20 WS=8 | 3 | — | Check availability | View Details |
| 54 | 0912060203 AH SCREW DIN0912-M 6X20 | AH SCREW DIN0912-M 6X20 | 0 | — | Check availability | |
| 55 | 0912050203 AH SCREW DIN0912-M 5X20 | AH SCREW DIN0912-M 5X20 | 0 | — | Check availability | |
| 55 | 0933050203 HH SCREW DIN933 M5x20 | HH SCREW DIN933 M5x20 | 1 | — | Check availability | |
| 56 | 54603073000 COLLAR BUSHING 5 X 10 X 6 ALU | COLLAR BUSHING 5 X 10 X 6 ALU | 1 | — | Check availability | View Details |
| 57 | 44011076200 Cable tie 200/4.6mm black | Cable tie 200/4.6mm black | 1 | — | Check availability |
