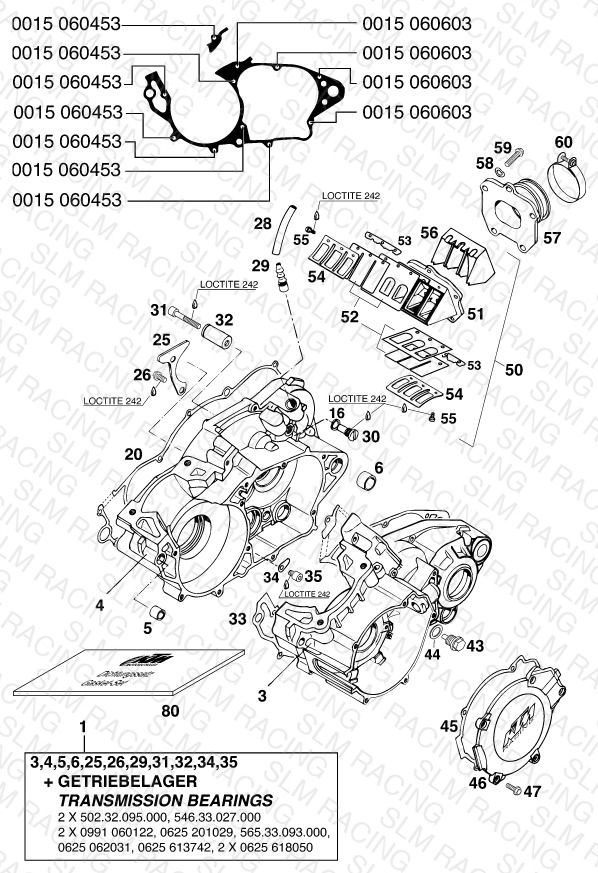

ENGINE CASE
Parts (32)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 54630000944 ENGINE CASE CPL.W.TRAN.BEAR | ENGINE CASE CPL.W.TRAN.BEAR | 1 | — | Check availability | View Details |
| 5 | 54630027000 DOWEL BUSHING 13,8X11X12 | DOWEL BUSHING 13,8X11X12 | 1 | — | Check availability | |
| 6 | 50130027000 DOWEL 19 X15,1X12 | DOWEL 19 X15,1X12 | 1 | — | Check availability | View Details |
| 16 | 58038032110 CU-SEAL RING 9 X 13 X1 | CU-SEAL RING 9 X 13 X1 | 1 | — | Check availability | View Details |
| 20 | 54630025100 CLUTCH COVER GASKET 0,5MM | CLUTCH COVER GASKET 0,5MM | 1 | — | Check availability | |
| 25 | 54630017000 RETAINING PLATE | RETAINING PLATE | 1 | — | Check availability | View Details |
| 26 | 0015060123 HH COLLAR SCREW M 6X12 WS=8 | HH COLLAR SCREW M 6X12 WS=8 | 2 | — | Check availability | View Details |
| 28 | 55007016001 PVC-HOSE 7X10 PER METER | PVC-HOSE 7X10 PER METER | 0 | — | Check availability | |
| 29 | 54630022000 BLEEDER FLANGE '94 | BLEEDER FLANGE '94 | 1 | — | Check availability | View Details |
| 30 | 54530001150 FLAT HEAD SCREW WITH PIN | FLAT HEAD SCREW WITH PIN | 1 | — | Check availability | View Details |
| 31 | 0912060404 AH SCREW DIN0912-M 6X40 A2 | AH SCREW DIN0912-M 6X40 A2 | 1 | — | Check availability | |
| 32 | 54633018400 BUSHING PIN | BUSHING PIN | 1 | — | Check availability | |
| 33 | 54630039200 CASE GASKET 0,5MM 250-380'98 | CASE GASKET 0,5MM 250-380'98 | 1 | — | Check availability | |
| 34 | 54634049000 RETAINING PLATE | RETAINING PLATE | 2 | — | Check availability | |
| 35 | 0912060083 AH collar screw DIN 912 M6x8 | AH collar screw DIN 912 M6x8 | 2 | — | Check availability | |
| 43 | 58030021000 OILDRAIN PLUG W.MAG. M 12X1,5 | OILDRAIN PLUG W.MAG. M 12X1,5 | 1 | — | Check availability | View Details |
| 44 | 58038022000 CU-seal ring DIN7603-12X18X1.5 | CU-seal ring DIN7603-12X18X1.5 | 1 | — | Check availability | |
| 45 | 54630040300 IGNITION COVER GASKET '92 | IGNITION COVER GASKET '92 | 1 | — | Check availability | |
| 46 | 54630002300 IGNITION COVER 250-380 '98 | IGNITION COVER 250-380 '98 | 1 | — | Check availability | View Details |
| 47 | 0015050163 HH COLLAR SCREW M 5X16 WS=8 | HH COLLAR SCREW M 5X16 WS=8 | 5 | — | Check availability | View Details |
| 50 | 54630051344 REED VALVE HOUSING 250-360'96 | REED VALVE HOUSING 250-360'96 | 1 | — | Check availability | View Details |
| 51 | 54430051000 * REED VALVE CASE LOOSE | * REED VALVE CASE LOOSE | 1 | — | Check availability | |
| 52 | 54630052600 REED VALVE CPL. 250/300/360'96 | REED VALVE CPL. 250/300/360'96 | 1 | — | Check availability | View Details |
| 53 | 54230056000 PAPER STRIP | PAPER STRIP | 2 | — | Check availability | View Details |
| 54 | 54630053000 STOP PLATE TOP | STOP PLATE TOP | 2 | — | Check availability | View Details |
| 55 | 0084040083 CYL.HEAD SCREW DIN0084-M 4X8 A | CYL.HEAD SCREW DIN0084-M 4X8 A | 6 | — | Check availability | |
| 56 | 54630054000 VELOCITY INSERT | VELOCITY INSERT | 1 | — | Check availability | |
| 57 | 54630050000 INTAKE FLANGE 200-380 | INTAKE FLANGE 200-380 | 1 | — | Check availability | |
| 58 | 0137060000 SPRING WASHER DIN0137-B 6 | SPRING WASHER DIN0137-B 6 | 5 | — | Check availability | |
| 59 | 0015060253 HH COLLAR SCREW M 6X25 WS=8 | HH COLLAR SCREW M 6X25 WS=8 | 5 | — | Check availability | View Details |
| 60 | 54330061000 Hose clip GEMI 52mm | Hose clip GEMI 52mm | 1 | — | Check availability | |
| 80 | 54630100000 GASKET SET 250-380 '90-'98 | GASKET SET 250-380 '90-'98 | 1 | — | Check availability | View Details |
