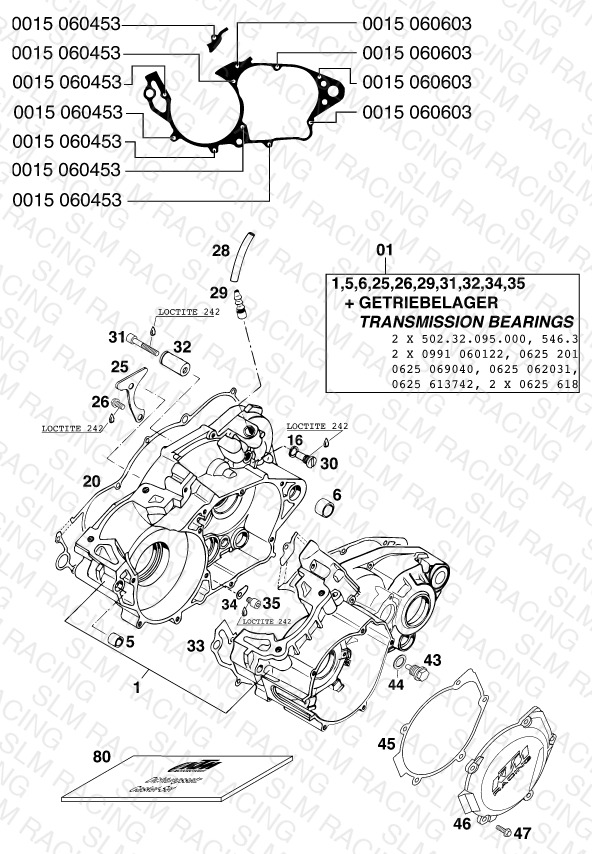

ENGINE CASE
Parts (21)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 54730000044 * ENGINE CASE CPL.TRAN.BEAR'99 | * ENGINE CASE CPL.TRAN.BEAR'99 | 1 | — | Check availability | |
| 5 | 54630027000 DOWEL BUSHING 13,8X11X12 | DOWEL BUSHING 13,8X11X12 | 1 | — | Check availability | |
| 6 | 50130027000 DOWEL 19 X15,1X12 | DOWEL 19 X15,1X12 | 1 | — | Check availability | View Details |
| 16 | 58038032110 CU-SEAL RING 9 X 13 X1 | CU-SEAL RING 9 X 13 X1 | 1 | — | Check availability | View Details |
| 20 | 54630025100 CLUTCH COVER GASKET 0,5MM | CLUTCH COVER GASKET 0,5MM | 1 | — | Check availability | |
| 25 | 54630017000 RETAINING PLATE | RETAINING PLATE | 1 | — | Check availability | View Details |
| 26 | 0015060123 HH COLLAR SCREW M 6X12 WS=8 | HH COLLAR SCREW M 6X12 WS=8 | 2 | — | Check availability | View Details |
| 28 | 55007016001 PVC-HOSE 7X10 PER METER | PVC-HOSE 7X10 PER METER | 0 | — | Check availability | |
| 29 | 54630022000 BLEEDER FLANGE '94 | BLEEDER FLANGE '94 | 1 | — | Check availability | View Details |
| 30 | 54530001150 FLAT HEAD SCREW WITH PIN | FLAT HEAD SCREW WITH PIN | 1 | — | Check availability | View Details |
| 31 | 0912060404 AH SCREW DIN0912-M 6X40 A2 | AH SCREW DIN0912-M 6X40 A2 | 1 | — | Check availability | |
| 32 | 54633018400 BUSHING PIN | BUSHING PIN | 1 | — | Check availability | |
| 33 | 54630039200 CASE GASKET 0,5MM 250-380'98 | CASE GASKET 0,5MM 250-380'98 | 1 | — | Check availability | |
| 34 | 54634049000 RETAINING PLATE | RETAINING PLATE | 2 | — | Check availability | |
| 35 | 0912060083 AH collar screw DIN 912 M6x8 | AH collar screw DIN 912 M6x8 | 2 | — | Check availability | |
| 43 | 58030021000 OILDRAIN PLUG W.MAG. M 12X1,5 | OILDRAIN PLUG W.MAG. M 12X1,5 | 1 | — | Check availability | View Details |
| 44 | 58038022000 CU-seal ring DIN7603-12X18X1.5 | CU-seal ring DIN7603-12X18X1.5 | 1 | — | Check availability | |
| 45 | 54730040000 IGNITION COVER GASKET 1MM '99 | IGNITION COVER GASKET 1MM '99 | 1 | — | Check availability | View Details |
| 46 | 54730002000 * IGNITION COVER 250-380 '99 | * IGNITION COVER 250-380 '99 | 1 | — | Check availability | |
| 47 | 0015050163 HH COLLAR SCREW M 5X16 WS=8 | HH COLLAR SCREW M 5X16 WS=8 | 5 | — | Check availability | View Details |
| 80 | 54630099000 GASKET SET 250-380 '99-'01 | GASKET SET 250-380 '99-'01 | 1 | — | Check availability | View Details |
