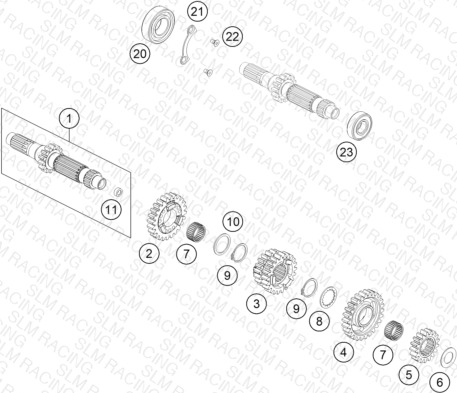

TRANSMISSION I - MAIN SHAFT
Parts (15)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 78133001000 MAIN SHAFT ZB | MAIN SHAFT ZB | 1 | $137.27 | Available | 1 |
| 2 | 78033005100 IDLER GEAR 5. GEAR | IDLER GEAR 5. GEAR | 1 | $100.31 | Available | 1 |
| 3 | 78033003000 SLIDING GEAR 3/4 G. 08 | SLIDING GEAR 3/4 G. 08 | 1 | $142.99 | Available | 1 |
| 4 | 78033006100 IDLER GEAR 6. GEAR | IDLER GEAR 6. GEAR | 1 | $106.03 | Available | 1 |
| 5 | 78033002000 SOLID GEAR 2.G. 08 | SOLID GEAR 2.G. 08 | 1 | — | Obsolete | View Details |
| 6 | 56033030000 STOP DISC 17,2X30X1 | STOP DISC 17,2X30X1 | 1 | $4.99 | Available | 1 |
| 7 | 0405222613 NEEDLE BEAR. K 22X26X13 TN | NEEDLE BEAR. K 22X26X13 TN | 2 | $10.77 | Available | 2 |
| 8 | 78033033000 STOP DISK 23 X 32 X 1,5 | STOP DISK 23 X 32 X 1,5 | 1 | $3.99 | Available | 1 |
| 9 | 0471250120 CIRCLIP DIN0471-25X1,2 | CIRCLIP DIN0471-25X1,2 | 2 | $2.99 | Available | 2 |
| 10 | 78033031000 STOP DISK 26 X 32 X 1,5 | STOP DISK 26 X 32 X 1,5 | 1 | $3.99 | Available | 1 |
| 11 | 78033001110 BUSHING | BUSHING | 1 | $13.41 | Available | 1 |
| 20 | 0625062054 BALL BEARING 6205 C3 NTN | BALL BEARING 6205 C3 NTN | 1 | $24.30 | Available | 1 |
| 21 | 78033032000 TAB WASHER BEARING MAIN SHAFT | TAB WASHER BEARING MAIN SHAFT | 1 | $6.48 | Available | 1 |
| 22 | 0019050106S hex lobe countersunc screw M5x | hex lobe countersunc screw M5x | 2 | $2.99 | Available | 2 |
| 23 | 0625062036 BALL BEARING 6203 RSH C3 | BALL BEARING 6203 RSH C3 | 1 | $19.02 | Available | 1 |
