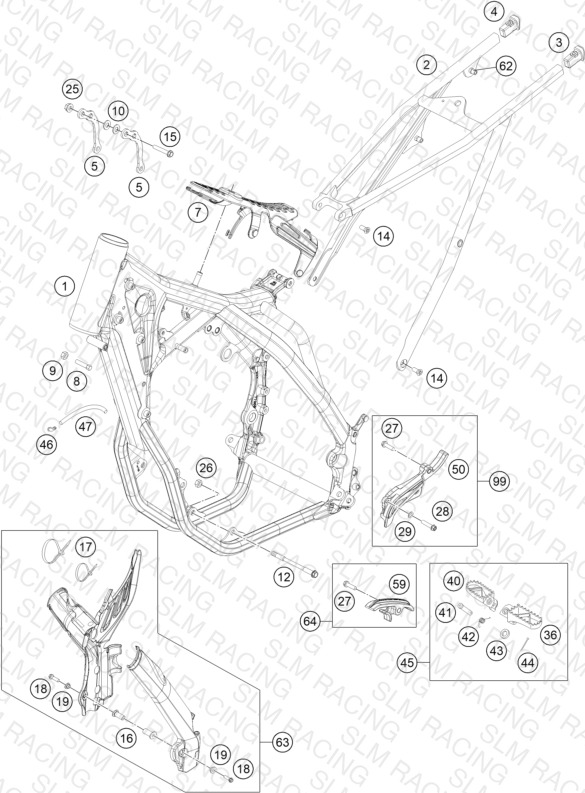

FRAME
Parts (37)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 7810310100004 FRAME ''781N2'' ORANGE 201 | FRAME ''781N2'' ORANGE 201 | 1 | — | Obsolete | View Details |
| 2 | 77203002000 SUB FRAME SX | SUB FRAME SX | 1 | $460.56 | Available | 1 |
| 3 | 78103002010 SUB FRAME APPLICATION LEFT | SUB FRAME APPLICATION LEFT | 1 | $26.39 | Available | 1 |
| 4 | 78103002020 SUB FRAME APPLICATION RIGHT | SUB FRAME APPLICATION RIGHT | 1 | $23.97 | Available | 1 |
| 5 | 78103113000 REINFORCING BRACKET 450 2014 | REINFORCING BRACKET 450 2014 | 2 | $9.23 | Available | 2 |
| 7 | 77207012000 TANK REST RUBBER | TANK REST RUBBER | 1 | $11.10 | Available | 1 |
| 8 | 59001037000 SPECIAL SCREW M8X26 WS=10 | SPECIAL SCREW M8X26 WS=10 | 2 | $3.99 | Available | 2 |
| 9 | 0934080003 Hexagon nut DIN934 M8 | Hexagon nut DIN934 M8 | 2 | $2.99 | Available | 2 |
| 10 | 77003013050 WASHER 8,5X18X1 INOX | WASHER 8,5X18X1 INOX | 1 | $3.99 | Available | 1 |
| 12 | 59003013000 Enginebrac. screw M10X123 WS=1 | Enginebrac. screw M10X123 WS=1 | 2 | $11.10 | Available | 2 |
| 14 | 0019080206S FLAT HEAD SCREW M. ISA45 M8X20 | FLAT HEAD SCREW M. ISA45 M8X20 | 2 | $2.99 | Available | 2 |
| 15 | 56530079000S HH COLLAR SCREW M8X44 WS13 | HH COLLAR SCREW M8X44 WS13 | 3 | $3.99 | Available | 3 |
| 16 | 54803092050 BLIND PLUG-IN NUT M5 WN 22A 03 | BLIND PLUG-IN NUT M5 WN 22A 03 | 2 | $6.15 | Available | 2 |
| 17 | 44011076140 CABLE TIE 140/2,5MM BLACK | CABLE TIE 140/2,5MM BLACK | 1 | $1.99 | Available | 1 |
| 17 | 44011076305 CABLE TIE 300/4,8MM BLACK | CABLE TIE 300/4,8MM BLACK | 3 | $2.99 | Available | 3 |
| 18 | 0738050250 COU.SUNK SCR. AH ISO7380 M5X25 | COU.SUNK SCR. AH ISO7380 M5X25 | 2 | $0.99 | Available | 2 |
| 19 | 54803092060 Bush f. frame protection 03 | Bush f. frame protection 03 | 2 | $4.99 | Available | 2 |
| 25 | 06923080003 Hex. nut DIN EN 1661 M8 WS13 | Hex. nut DIN EN 1661 M8 WS13 | 6 | $2.99 | Available | 6 |
| 26 | 54310086100 SELF LOCKING NUT M10 CU WS=14 | SELF LOCKING NUT M10 CU WS=14 | 2 | $2.99 | Available | 2 |
| 27 | 0025080306 HH collar screw M8x30 | HH collar screw M8x30 | 2 | $3.62 | Available | 2 |
| 28 | 0025060356 HH collar screw M6x35 TX30 | HH collar screw M6x35 TX30 | 2 | $3.99 | Available | 2 |
| 29 | 0125060003 WASHER DIN0125-A 6,4 | WASHER DIN0125-A 6,4 | 1 | $1.99 | Available | 1 |
| 36 | 78003040050 FOOTREST L/S 08 | FOOTREST L/S 08 | 1 | $51.36 | Available | 1 |
| 40 | 78003041050 FOOTREST R/S 08 | FOOTREST R/S 08 | 1 | $51.36 | Available | 1 |
| 41 | 54803044000 PIN FOR FOOT PED 51.5X9.8 MM | PIN FOR FOOT PED 51.5X9.8 MM | 2 | $14.62 | Available | 2 |
| 42 | 54603041000 FOOTREST SPRING L/S & R/S | FOOTREST SPRING L/S & R/S | 2 | $6.15 | Available | 2 |
| 43 | 0125100003 washer DIN 125 A 10.5 | washer DIN 125 A 10.5 | 2 | $2.99 | Available | 2 |
| 44 | 0094032253 PIN DIN0094-3,2X25 STEEL | PIN DIN0094-3,2X25 STEEL | 2 | $1.99 | Available | 2 |
| 45 | 78003040033 FOOTREST L/S + R/S CPL. 09 | FOOTREST L/S + R/S CPL. 09 | 1 | $136.50 | Available | 1 |
| 46 | 50303089000 ANGLE PIECE '97 | ANGLE PIECE '97 | 1 | $6.15 | Available | 1 |
| 47 | 55007016001 PVC-HOSE 7X10 PER METER | PVC-HOSE 7X10 PER METER | — | $7.14 | Available | 1 |
| 50 | 78103096000 CHAIN GUARD 450/500 EXC 12 | CHAIN GUARD 450/500 EXC 12 | 1 | $18.25 | Available | 1 |
| 59 | 77203053000 CHAIN SLIDER LOWER PART CPL. | CHAIN SLIDER LOWER PART CPL. | 1 | $10.66 | Available | 1 |
| 62 | 77303139000 BLIND RIVET NUT EM6-60LF/HX | BLIND RIVET NUT EM6-60LF/HX | 2 | $4.99 | Available | 2 |
| 63 | 77203094000 PLASTIC FRAME PROTECTION SET | PLASTIC FRAME PROTECTION SET | 1 | $61.15 | Available | 1 |
| 64 | 77203053010 CHAIN SLIDING KIT BELOW CPL.11 | CHAIN SLIDING KIT BELOW CPL.11 | 1 | $22.10 | Available | 1 |
| 99 | 78103096010 SPROCKET COVER KIT | SPROCKET COVER KIT | — | $25.73 | Available | 1 |
