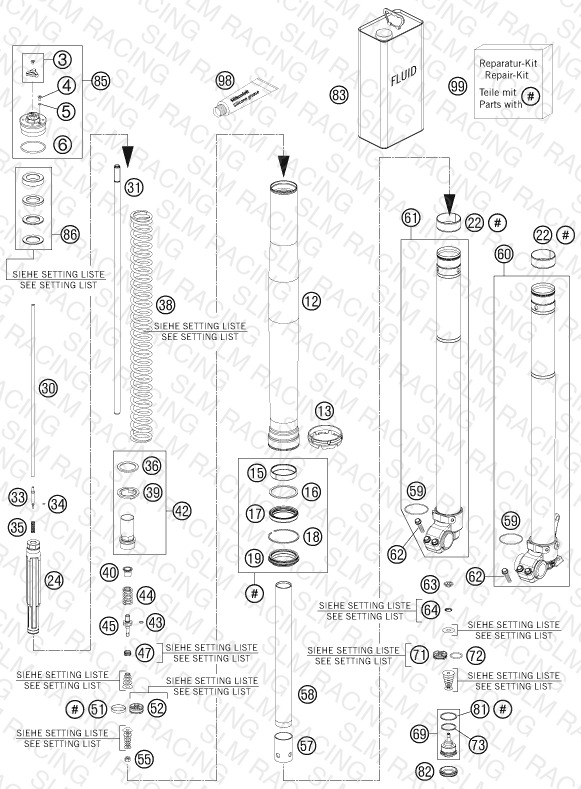

FRONT FORK DISASSEMBLED

← →

Parts (56)

#	Part Number	Description	Qty	Price	Status
3	48600812S ADJUSTING KNOB + SCREW	ADJUSTING KNOB + SCREW	2	$6.15	Available	2
4	48600481 Cross countersunk head screw M	Cross countersunk head screw M	2	$2.41	Available	2
5	48600046 O-ring 3x1,5 NBR70	O-ring 3x1,5 NBR70	2	$1.99	Available	2
6	46810340 O-ring 45x2 NBR70 siliconized	O-ring 45x2 NBR70 siliconized	2	$1.20	Available	2
12	48600736 Fork outer tube 49,13x577 dt54	Fork outer tube 49,13x577 dt54	2	$543.94	Available	2
13	48600698 Fork protection ring 62,1mm	Fork protection ring 62,1mm	2	$10.99	Available	2
15	48601009 Guide bushing 48x52x12	Guide bushing 48x52x12	2	$14.18	Available	2
16	48600013 Supportwasher 50x57,6x1,5	Supportwasher 50x57,6x1,5	2	$3.62	Available	2
17	48600969 Shaft seal SKF 48x57,9x9 grün	Shaft seal SKF 48x57,9x9 grün	2	$16.05	Available	2
18	48600070 Snap ring SB58x1,5 acc drawing	Snap ring SB58x1,5 acc drawing	2	$2.41	Available	2
19	48600968 DUST SEAL DL D48 SKF	DUST SEAL DL D48 SKF	2	$15.06	Available	2
22	48601008 Guide bushing 47x49x20	Guide bushing 47x49x20	2	$14.18	Available	2
24	48600557S Stop 12,4x31,9x200 cpl.	Stop 12,4x31,9x200 cpl.	2	—	Obsolete	View Details
30	48600559 Adjustment tube 6x520	Adjustment tube 6x520	2	$15.94	Available	2
31	48600568 Piston rod 12x554	Piston rod 12x554	2	$116.70	Available	2
33	48600277 Needle 4,5x43,6	Needle 4,5x43,6	2	$6.48	Available	2
34	48600298 O-ring 2x1,5 NBR70	O-ring 2x1,5 NBR70	2	$1.20	Available	2
35	48600444 Spring (5,4) 4-23 rebound	Spring (5,4) 4-23 rebound	2	$3.62	Available	2
36	48600113 Washer 32x42x2,5 plastic	Washer 32x42x2,5 plastic	2	$13.08	Available	2
38	91410012S SPRING 3,8N/MM SET D=4,9MM	SPRING 3,8N/MM SET D=4,9MM	—	$171.59	Available	1
38	91410013S SPRING 4,0N/MM SET D=5,0MM	SPRING 4,0N/MM SET D=5,0MM	—	—	Obsolete	View Details
38	91410014S SPRING 4,2N/MM SET D=5,0MM	SPRING 4,2N/MM SET D=5,0MM	1	—	Obsolete	View Details
38	91410015S SPRING 4,4N/MM SET D=5,1MM	SPRING 4,4N/MM SET D=5,1MM	—	$171.59	Available	1
38	91410016S SPRING 4,6N/MM SET	SPRING 4,6N/MM SET	—	$171.59	Available	1
39	48600021 Spring retainer 33,5x43x3	Spring retainer 33,5x43x3	2	$19.68	Available	2
40	48600525 Spring retainer 12,3x19x1,25 r	Spring retainer 12,3x19x1,25 r	2	$2.41	Available	2
42	48600830S SCREW SLEEVE M27X0,8	SCREW SLEEVE M27X0,8	2	—	Obsolete	View Details
43	48600299 O-ring 6x1,2 NBR70	O-ring 6x1,2 NBR70	4	$1.20	Available	4
44	48600511 Spring (13,9) 17-32 rebound	Spring (13,9) 17-32 rebound	2	—	Obsolete	View Details
45	48600576 Tap 6x46 rebound	Tap 6x46 rebound	2	$14.99	Available	2
47	48600382 Spring (11,4) 0,4-8 valve	Spring (11,4) 0,4-8 valve	2	$2.41	Available	2
51	48600455 Piston ring 21x23x5	Piston ring 21x23x5	2	$5.29	Available	2
52	48600575 Piston 6,07x22,7x13	Piston 6,07x22,7x13	2	$17.37	Available	2
55	40540486 Nut M6x0,5 h6,5 WAF10 rebound	Nut M6x0,5 h6,5 WAF10 rebound	2	$4.83	Available	2
57	48600764 Adapter 23x28x70	Adapter 23x28x70	2	$26.28	Available	2
58	48600763 Tube 23x350	Tube 23x350	2	$88.21	Available	2
59	48600048 O-ring 46x2 NBR70 siliconized	O-ring 46x2 NBR70 siliconized	2	$3.62	Available	2
60	48600860SA2 AXLE CLAMP L/S + TUBE CPL.	AXLE CLAMP L/S + TUBE CPL.	1	$764.16	Available	1
61	48600861S1 AXLE CLAMP R/S + TUBE CPL. 09	AXLE CLAMP R/S + TUBE CPL. 09	1	—	Obsolete	View Details
62	0025080256 HH collar screw M8x25	HH collar screw M8x25	8	$2.41	Available	8
63	48600163 Nut valve M6x0,5 h6,5 WAF17	Nut valve M6x0,5 h6,5 WAF17	2	$3.62	Available	2
64	48600202 Spring (8,5) l6,5 valve	Spring (8,5) l6,5 valve	2	$2.41	Available	2
69	48600586S Tap compression cpl.	Tap compression cpl.	2	$44.32	Available	2
71	48600047 Piston 6x27,8x9 compression	Piston 6x27,8x9 compression	2	$11.54	Available	2
72	46811499 O-ring 21x2 NBR70	O-ring 21x2 NBR70	4	$1.20	Available	4
73	35480320 O-ring 24x2 NBR70	O-ring 24x2 NBR70	2	$1.20	Available	2
81	48600004 Copper disc 29,5x33,5x1	Copper disc 29,5x33,5x1	2	$4.83	Available	2
82	48600141 Rubber cap 35x10 NBR80	Rubber cap 35x10 NBR80	2	$4.83	Available	2
83	48601166S1 Fork Fluid Viscosity 4.0 5L	Fork Fluid Viscosity 4.0 5L	1	$175.99	Available	1
85	48600431S2 PRE-LOAD ADJ. M51X1,5 09	PRE-LOAD ADJ. M51X1,5 09	2	—	Obsolete	View Details
86	48600036 Preload bush 42x26,5x2,5	Preload bush 42x26,5x2,5	—	$2.41	Available	1
86	48600037 Preload bush 26,5x42x5	Preload bush 26,5x42x5	—	$4.83	Available	1
86	48600038 Preload bush 26,5x42x10	Preload bush 26,5x42x10	—	$3.62	Available	1
86	48600053 Preload bush 26,5x42x1,5	Preload bush 26,5x42x1,5	—	$4.83	Available	1
98	T511 SILICONE GREASE F. DUST STRI	SILICONE GREASE F. DUST STRI	1	$40.69	Available	1
99	R14020 SXS SERVICE KIT	SXS SERVICE KIT	1	$124.95	Available	1
