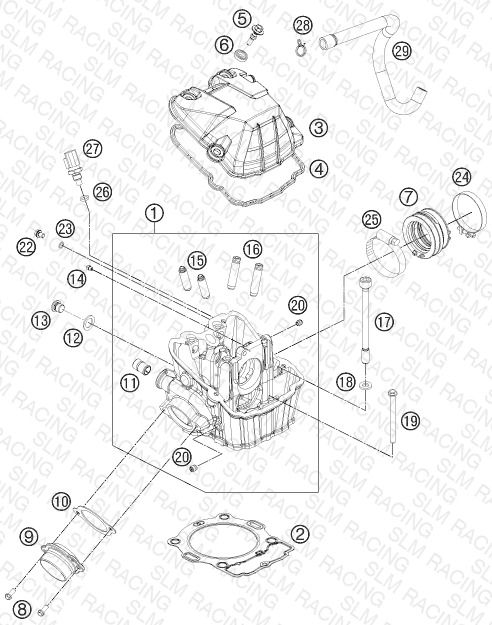

CYLINDER HEAD
Parts (28)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 22 | 0025060086 HH collar screw M6x8 TX30 | HH collar screw M6x8 TX30 | 1 | — | Check availability | |
| 23 | 0603061001 CU-SEAL RING DIN7603-6X10X1 | CU-SEAL RING DIN7603-6X10X1 | 1 | — | Check availability | |
| 28 | 58431082300 CLAMP YDNAC 10173 (18MM) | CLAMP YDNAC 10173 (18MM) | 1 | — | Check availability | |
| 1 | 78136020044 CYLINDER HEAD CPL. | CYLINDER HEAD CPL. | 1 | — | Check availability | View Details |
| 2 | 78030036000 CYLINDER HEAD GASKET 08 | CYLINDER HEAD GASKET 08 | 1 | — | Check availability | View Details |
| 3 | 7803605200033 VALVE COVER BLACK MATT | VALVE COVER BLACK MATT | 1 | — | Check availability | |
| 4 | 78036053000 VALVE COVER GASKET | VALVE COVER GASKET | 1 | — | Check availability | View Details |
| 5 | 78036054100 VALVE COVER SCREW | VALVE COVER SCREW | 4 | — | Check availability | |
| 6 | 75036052010 decoupling element | decoupling element | 4 | — | Check availability | |
| 7 | 77236044000 CONNECTION RUBBER EFI | CONNECTION RUBBER EFI | 1 | — | Check availability | |
| 8 | 0025060166 HH collar screw M6x16 TX30 | HH collar screw M6x16 TX30 | 2 | — | Check availability | |
| 9 | 78136139000 EXHAUST FLANGE | EXHAUST FLANGE | 1 | — | Check availability | View Details |
| 10 | 78036041000 EXHAUST FLANGE GASKET | EXHAUST FLANGE GASKET | 1 | — | Check availability | View Details |
| 11 | 58030010200 SCREW IN NOZZLE M20X1,5 | SCREW IN NOZZLE M20X1,5 | 1 | — | Check availability | |
| 12 | 58038022000 CU-seal ring DIN7603-12X18X1.5 | CU-seal ring DIN7603-12X18X1.5 | 1 | — | Check availability | |
| 13 | 78036024000 PLUG SCREW SAS M12X1,5 | PLUG SCREW SAS M12X1,5 | 1 | — | Check availability | |
| 14 | 60030063070 oil jet 70 M5 | oil jet 70 M5 | 1 | — | Check availability | |
| 15 | 77136026001 VALVE GUIDE OUTLET | VALVE GUIDE OUTLET | 2 | — | Check availability | |
| 16 | 78136025001 VALVE GUIDE INTAKE | VALVE GUIDE INTAKE | 2 | — | Check availability | |
| 17 | 78030044000 CYL. HEAD SCREW M10X1,25 L=125 | CYL. HEAD SCREW M10X1,25 L=125 | 4 | — | Check availability | View Details |
| 18 | 77336089010 washer 19x10.5x2.5 | washer 19x10.5x2.5 | 4 | — | Check availability | |
| 19 | 0025060706 HH COLLAR SCREW M6X70 TX30 | HH COLLAR SCREW M6X70 TX30 | 1 | — | Check availability | |
| 20 | 59030296000 SCREW PLUG | SCREW PLUG | 3 | — | Check availability | |
| 29 | 78130087000 ENGINE BREATHER TUBE | ENGINE BREATHER TUBE | 1 | — | Check availability | |
| 25 | 77236048000 Hose clip GEMI 58 | Hose clip GEMI 58 | 1 | — | Check availability | |
| 24 | 61036047000 Hose clamp GEMI 63mm 05 | Hose clamp GEMI 63mm 05 | 1 | — | Check availability | |
| 26 | 0770100020 o-ring 10.00x2.00 silicone | o-ring 10.00x2.00 silicone | 1 | — | Check availability | |
| 27 | 60011252000 TEMPERAT.-SENSOR WATER LC8 02 | TEMPERAT.-SENSOR WATER LC8 02 | 1 | — | Check availability |
