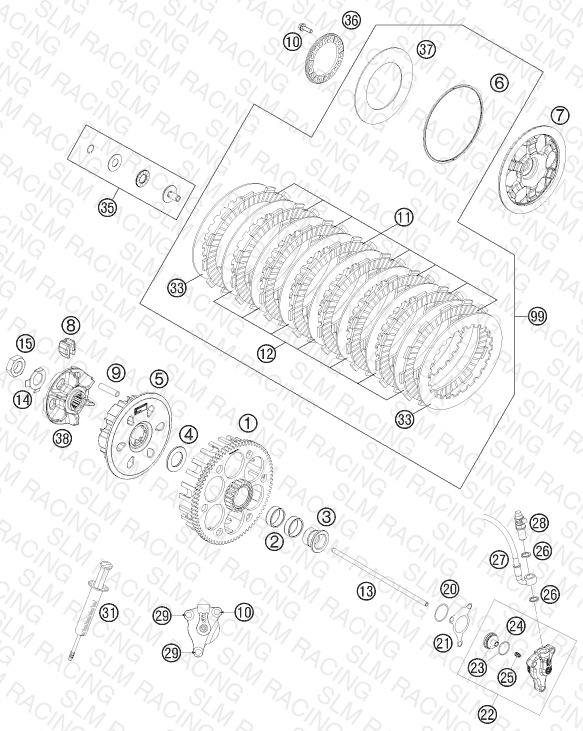

CLUTCH
Parts (32)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 78132001076 CLUTCH CAGE | CLUTCH CAGE | 1 | — | Check availability | |
| 2 | 0405252910 NEEDLE BEAR K 25X29X10 | NEEDLE BEAR K 25X29X10 | 2 | — | Check availability | |
| 3 | 78132015100 COLLARSLEEVE | COLLARSLEEVE | 1 | — | Check availability | |
| 4 | 77232009100 WASHER 21,8 X 37 X 3 | WASHER 21,8 X 37 X 3 | 1 | — | Check availability | |
| 5 | 78132002008 INNER CLUTCH HUB | INNER CLUTCH HUB | 1 | — | Check availability | View Details |
| 6 | 78132013000 WASHER 112X118X1.5 | WASHER 112X118X1.5 | 1 | — | Check availability | |
| 7 | 78132003000 PRESSURE PLATE | PRESSURE PLATE | 1 | — | Check availability | View Details |
| 8 | 78132025100 DAMPING RUBBER | DAMPING RUBBER | 6 | — | Check availability | |
| 9 | 78132004000 SLEEVE 7,5X33.4 | SLEEVE 7,5X33.4 | 6 | — | Check availability | |
| 10 | 0025050166 HH collar screw M5x16 TX30 | HH collar screw M5x16 TX30 | 6 | — | Check availability | |
| 11 | 59032011100 LINING DISC 2MM 04 | LINING DISC 2MM 04 | 8 | — | Check availability | View Details |
| 12 | 59032010200 INTERMEDIATE DISC 1,4MM 2002 | INTERMEDIATE DISC 1,4MM 2002 | 7 | — | Check availability | |
| 13 | 78132054100 PUSH ROD | PUSH ROD | 1 | — | Check availability | |
| 14 | 78132018000 TAB WASHER | TAB WASHER | 1 | — | Check availability | View Details |
| 15 | 0936181505 HEXAGON NUT DIN0936-M18X1,5 R. | HEXAGON NUT DIN0936-M18X1,5 R. | 1 | — | Check availability | |
| 20 | 0770300015 O-ring 30x1.5 NBR 70 | O-ring 30x1.5 NBR 70 | 1 | — | Check availability | |
| 21 | 59032065000 GASKET FOR SLAVE CYLINDER | GASKET FOR SLAVE CYLINDER | 1 | — | Check availability | View Details |
| 22 | 54832061044 OUTPUT CYLINDER CPL. 06 | OUTPUT CYLINDER CPL. 06 | 1 | — | Check availability | |
| 23 | 54832066000 PISTON CPL. | PISTON CPL. | 1 | — | Check availability | |
| 24 | 54832067000 O-RING | O-RING | 1 | — | Check availability | |
| 25 | 54832069000 PRESSURE SPRING | PRESSURE SPRING | 1 | — | Check availability | |
| 26 | 0603100141 sealing ring DIN 7603 10x14x1 | sealing ring DIN 7603 10x14x1 | 2 | — | Check availability | |
| 27 | 78132063000 CLUTCH PIPE | CLUTCH PIPE | 1 | — | Check availability | |
| 28 | 62513020000 BLEEDER SCREW CPL. 05 | BLEEDER SCREW CPL. 05 | 1 | — | Check availability | |
| 29 | 0025060206 HH collar screw M6x20 TX30 | HH collar screw M6x20 TX30 | 2 | — | Check availability | |
| 31 | 50329050000 VENT INJEKTION HYDR. CLUTCH | VENT INJEKTION HYDR. CLUTCH | 1 | — | Check availability | |
| 36 | 78132006100 SPRING RING | SPRING RING | 1 | — | Check availability | View Details |
| 33 | 59032010100 INTERMEDIATE DISC 1MM 2002 | INTERMEDIATE DISC 1MM 2002 | 2 | — | Check availability | |
| 35 | 78132057044 PRESSURE PIECE CPL. | PRESSURE PIECE CPL. | 1 | — | Check availability | View Details |
| 99 | 78132011110 CLUTCH KIT 450 SX-F/EXC 12 | CLUTCH KIT 450 SX-F/EXC 12 | 1 | — | Check availability | |
| 37 | 78132005000 BELLEVILLE SPRING 71X115X1,5 I | BELLEVILLE SPRING 71X115X1,5 I | 1 | — | Check availability | |
| 38 | 78132002111 HUB | HUB | 1 | — | Check availability | View Details |
