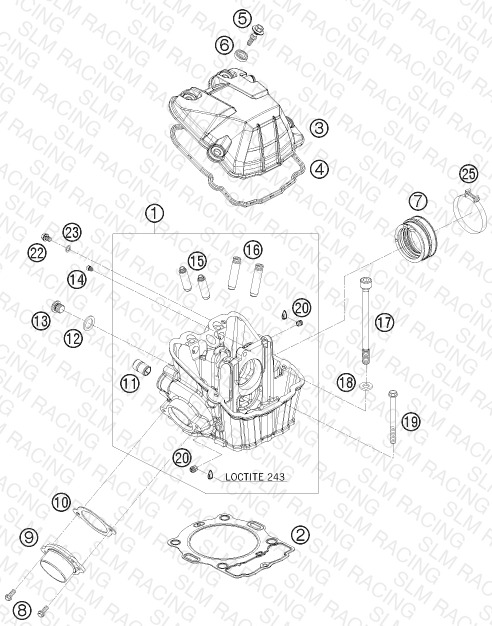

CYLINDER HEAD
Parts (23)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 25 | 59030061000 CLAMP D=56MM B=9MM M4X25 | CLAMP D=56MM B=9MM M4X25 | 1 | $6.15 | Available | 1 |
| 1 | 78036020044 CYLINDER HEAD CPL. | CYLINDER HEAD CPL. | 1 | $777.18 | Obsolete | View Details |
| 2 | 78030036000 CYLINDER HEAD GASKET 08 | CYLINDER HEAD GASKET 08 | 1 | $35.27 | Obsolete | View Details |
| 3 | 7803605200033 VALVE COVER BLACK MATT | VALVE COVER BLACK MATT | 1 | $57.52 | Available | 1 |
| 4 | 78036053000 VALVE COVER GASKET | VALVE COVER GASKET | 1 | $6.39 | Obsolete | View Details |
| 5 | 78036054000 VALVE COVER SCREW | VALVE COVER SCREW | 4 | $9.65 | Obsolete | View Details |
| 6 | 75036052010 decoupling element | decoupling element | 4 | $4.99 | Available | 4 |
| 7 | 77036044000 INTAKE BOOT 06 | INTAKE BOOT 06 | 1 | $35.08 | Obsolete | View Details |
| 8 | 0015060163 HH COLLAR SCREW M 6X16 WS=8 | HH COLLAR SCREW M 6X16 WS=8 | 2 | $1.12 | Obsolete | View Details |
| 9 | 78036039000 EXHAUST FLANGE CPL. EXC-F 07 | EXHAUST FLANGE CPL. EXC-F 07 | 1 | $55.64 | Obsolete | View Details |
| 10 | 78036041000 EXHAUST FLANGE GASKET | EXHAUST FLANGE GASKET | 1 | $12.06 | Obsolete | View Details |
| 11 | 58030010200 SCREW IN NOZZLE M20X1,5 | SCREW IN NOZZLE M20X1,5 | 1 | $10.44 | Available | 1 |
| 12 | 58038022000 CU-seal ring DIN7603-12X18X1.5 | CU-seal ring DIN7603-12X18X1.5 | 1 | $2.99 | Available | 1 |
| 13 | 78036024000 PLUG SCREW SAS M12X1,5 | PLUG SCREW SAS M12X1,5 | 1 | $11.43 | Available | 1 |
| 14 | 60030063070 oil jet 70 M5 | oil jet 70 M5 | 1 | $10.11 | Available | 1 |
| 15 | 78036026000 VALVE GUIDE EXHAUST | VALVE GUIDE EXHAUST | 2 | $12.31 | Obsolete | View Details |
| 16 | 78036025000 VALVE GUIDE INTAKE | VALVE GUIDE INTAKE | 2 | $12.31 | Obsolete | View Details |
| 17 | 78030044000 CYL. HEAD SCREW M10X1,25 L=125 | CYL. HEAD SCREW M10X1,25 L=125 | 4 | $10.99 | Obsolete | View Details |
| 18 | 77336089010 washer 19x10.5x2.5 | washer 19x10.5x2.5 | 4 | $4.99 | Available | 4 |
| 19 | 0015060753 HH COLLAR SCREW M 6X75 WS=8 | HH COLLAR SCREW M 6X75 WS=8 | 1 | $2.84 | Obsolete | View Details |
| 20 | 59030296000 SCREW PLUG | SCREW PLUG | 2 | $7.36 | Available | 2 |
| 22 | 0015060083 HH COLLAR SCREW M 6X8 WS=8 | HH COLLAR SCREW M 6X8 WS=8 | 1 | $0.93 | Obsolete | View Details |
| 23 | 0603061001 CU-SEAL RING DIN7603-6X10X1 | CU-SEAL RING DIN7603-6X10X1 | 1 | $2.99 | Available | 1 |
