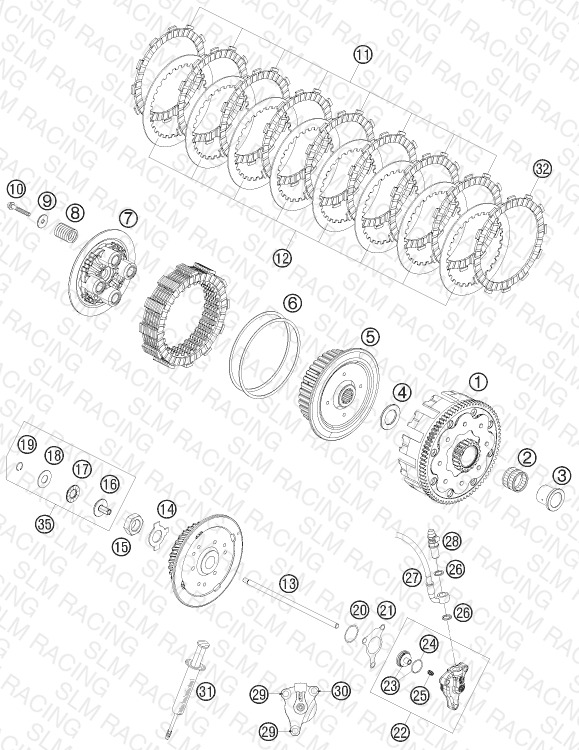

CLUTCH
Parts (33)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 35 | 77332057144 PRESSURE PIECE CPL. | PRESSURE PIECE CPL. | 1 | — | Check availability | |
| 8 | 78032005000 CLUTCH SPRING 08 | CLUTCH SPRING 08 | 4 | — | Check availability | |
| 9 | 58432006000 WASHER 6,2 X 20 X 2 '99 | WASHER 6,2 X 20 X 2 '99 | 4 | — | Check availability | View Details |
| 10 | 0015060303 HH COLLAR SCREW M 6X30 SW=8 | HH COLLAR SCREW M 6X30 SW=8 | 4 | — | Check availability | View Details |
| 11 | 78032011000 LINING DISC 08 | LINING DISC 08 | 8 | — | Check availability | View Details |
| 12 | 78032010000 STEEL DISC 08 | STEEL DISC 08 | 8 | — | Check availability | View Details |
| 13 | 78032054000 PUSH ROD 08 | PUSH ROD 08 | 1 | — | Check availability | |
| 17 | 54637097200 AXIAL NEEDLE BEARING AXK 1226 | AXIAL NEEDLE BEARING AXK 1226 | 1 | — | Check availability | |
| 18 | 54637098200 AXIAL WASHER AS1226 12X26X1 | AXIAL WASHER AS1226 12X26X1 | 1 | — | Check availability | |
| 19 | 0993012000 CIRCLIP DIN7993-RW12 | CIRCLIP DIN7993-RW12 | 1 | — | Check availability | |
| 20 | 0770300015 O-ring 30x1.5 NBR 70 | O-ring 30x1.5 NBR 70 | 1 | — | Check availability | |
| 21 | 59032065000 GASKET FOR SLAVE CYLINDER | GASKET FOR SLAVE CYLINDER | 1 | — | Check availability | View Details |
| 22 | 54832061044 OUTPUT CYLINDER CPL. 06 | OUTPUT CYLINDER CPL. 06 | 1 | — | Check availability | |
| 23 | 54832066000 PISTON CPL. | PISTON CPL. | 1 | — | Check availability | |
| 24 | 54832067000 O-RING | O-RING | 1 | — | Check availability | |
| 25 | 54832069000 PRESSURE SPRING | PRESSURE SPRING | 1 | — | Check availability | |
| 26 | 0603100141 sealing ring DIN 7603 10x14x1 | sealing ring DIN 7603 10x14x1 | 2 | — | Check availability | |
| 27 | 54832063000 CLUTCH PIPE 06 | CLUTCH PIPE 06 | 1 | — | Check availability | |
| 28 | 54813020000 BLEEDER HOLLOW SCREW M10X1 | BLEEDER HOLLOW SCREW M10X1 | 1 | — | Check availability | View Details |
| 29 | 0015060203 HH COLLAR SCREW M 6X20 WS=8 | HH COLLAR SCREW M 6X20 WS=8 | 2 | — | Check availability | View Details |
| 30 | 0015060303 HH COLLAR SCREW M 6X30 SW=8 | HH COLLAR SCREW M 6X30 SW=8 | 1 | — | Check availability | View Details |
| 31 | 50329050000 VENT INJEKTION HYDR. CLUTCH | VENT INJEKTION HYDR. CLUTCH | 1 | — | Check availability | |
| 32 | 78032111000 LINING DISC TURNED OFF | LINING DISC TURNED OFF | 1 | — | Check availability | View Details |
| 14 | 77332018000 RETAINING PLATE | RETAINING PLATE | 1 | — | Check availability | |
| 15 | 0936181505 HEXAGON NUT DIN0936-M18X1,5 R. | HEXAGON NUT DIN0936-M18X1,5 R. | 1 | — | Check availability | |
| 1 | 78032001000 CLUTCH CAGE CPL. 08 | CLUTCH CAGE CPL. 08 | 1 | — | Check availability | View Details |
| 2 | 56532095000 NEEDLE BEARING K26X30X22ZW.KSE | NEEDLE BEARING K26X30X22ZW.KSE | 1 | — | Check availability | |
| 3 | 78032015000 INNER RING | INNER RING | 1 | — | Check availability | |
| 4 | 78032020000 STOP DISC 08 | STOP DISC 08 | 1 | — | Check availability | |
| 5 | 78032002000 INNER CLUTCH HUB 08 | INNER CLUTCH HUB 08 | 1 | — | Check availability | View Details |
| 6 | 78032009000 JUDDER SPRING CPL. | JUDDER SPRING CPL. | 1 | — | Check availability | |
| 7 | 78032003000 PRESSURE PLATE 08 | PRESSURE PLATE 08 | 1 | — | Check availability | View Details |
| 16 | 77332057100 PRESSURE PIECE | PRESSURE PIECE | 1 | — | Check availability |
