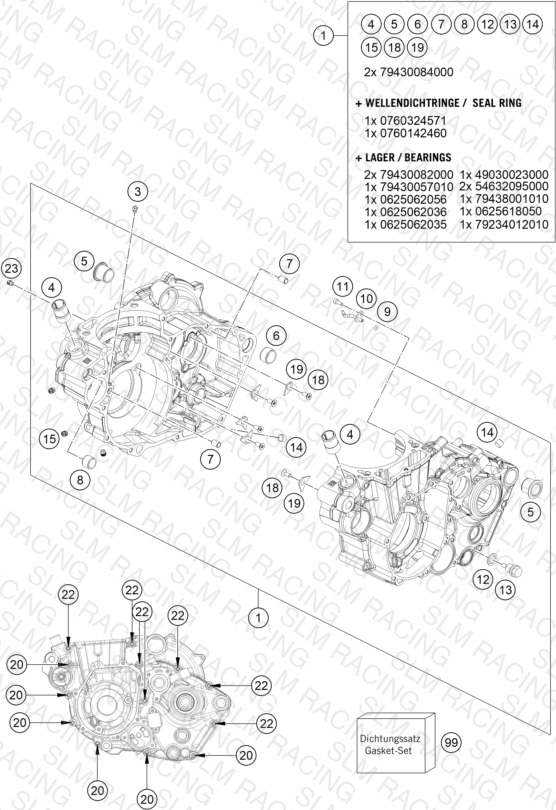

ENGINE CASE
Parts (20)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 79430000344 Crankcase cmpl. | Crankcase cmpl. | 1 | $1464.31 | Available | 1 |
| 3 | 60030063070 oil jet 70 M5 | oil jet 70 M5 | 2 | $10.11 | Available | 2 |
| 4 | 58030010200 SCREW IN NOZZLE M20X1,5 | SCREW IN NOZZLE M20X1,5 | 1 | $10.44 | Available | 1 |
| 5 | 79230010000 Housing bush | Housing bush | 2 | $13.96 | Available | 2 |
| 6 | 54830027100 Dowel, 21x12 | Dowel, 21x12 | 1 | $6.15 | Available | 1 |
| 7 | 59030023100 Dowel, 6x8x11.5 | Dowel, 6x8x11.5 | 1 | $1.99 | Available | 1 |
| 8 | 51030026100 DOWEL 17 X 13 X 12 | DOWEL 17 X 13 X 12 | 1 | $7.58 | Available | 1 |
| 9 | 0770035020 O-RING 3,5X2,00 NBR | O-RING 3,5X2,00 NBR | 1 | $1.99 | Available | 1 |
| 10 | 81230064000 OIL JET ANGLED 70 | OIL JET ANGLED 70 | 1 | $14.29 | Available | 1 |
| 11 | 0912040103S Cylinder screw DIN 912-M4x10-8 | Cylinder screw DIN 912-M4x10-8 | 1 | $1.99 | Available | 1 |
| 12 | 58038022000 CU-seal ring DIN7603-12X18X1.5 | CU-seal ring DIN7603-12X18X1.5 | 1 | $2.99 | Available | 1 |
| 13 | 58030021100 oildrain plug with magnet | oildrain plug with magnet | 1 | $13.30 | Available | 1 |
| 14 | 0906100100 pipe plug DIN 906 M10x1 | pipe plug DIN 906 M10x1 | 2 | $4.99 | Available | 2 |
| 15 | 59030296000 SCREW PLUG | SCREW PLUG | 3 | $7.36 | Available | 3 |
| 18 | 0019050121S INT. TORX FLAT HEAD M5X12 T25 | INT. TORX FLAT HEAD M5X12 T25 | 2 | $2.99 | Available | 2 |
| 19 | 75030085000 RETAINING PLATE F. CS BEARING | RETAINING PLATE F. CS BEARING | 4 | $1.99 | Available | 4 |
| 20 | 0025060606 HH collar screw M6x60 TX30 | HH collar screw M6x60 TX30 | 1 | $3.99 | Available | 1 |
| 22 | 0025060806 HH COLLAR SCREW M6X80 TX30 | HH COLLAR SCREW M6X80 TX30 | 1 | $2.99 | Available | 1 |
| 23 | 60030063050 oil jet 50 M5 | oil jet 50 M5 | 1 | $11.10 | Available | 1 |
| 99 | 79430099000 GASKET SET 450 SX-F | GASKET SET 450 SX-F | — | $300.95 | Backorder — Restocking | 1 |
