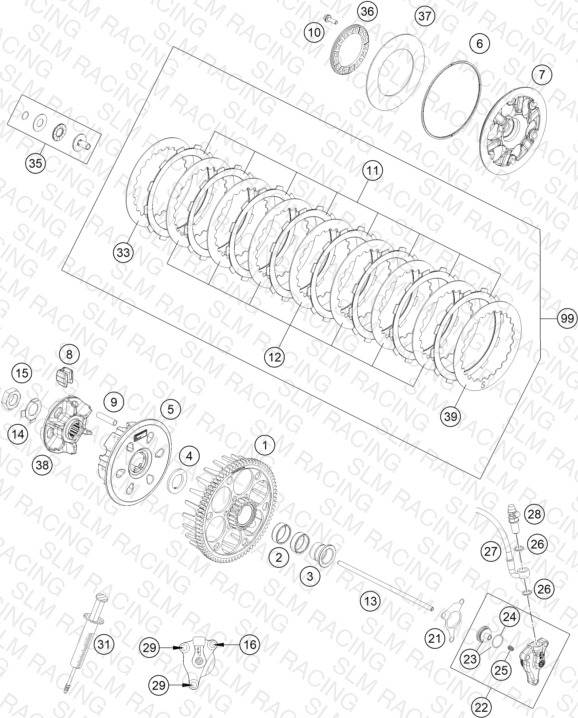

CLUTCH
Parts (33)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 79432001076 CLUTCH CAGE | CLUTCH CAGE | 1 | $324.93 | Available | 1 |
| 2 | 0405252910 NEEDLE BEAR K 25X29X10 | NEEDLE BEAR K 25X29X10 | 2 | $10.44 | Available | 2 |
| 3 | 78132015100 COLLARSLEEVE | COLLARSLEEVE | 1 | $31.67 | Available | 1 |
| 4 | 78932009000 WASHER 22 X 36,5 X 3 | WASHER 22 X 36,5 X 3 | 1 | $9.12 | Available | 1 |
| 5 | 78132002300 CLUTCH HUB | CLUTCH HUB | 1 | $158.50 | Available | 1 |
| 6 | 78132013000 WASHER 112X118X1.5 | WASHER 112X118X1.5 | 1 | $12.75 | Available | 1 |
| 7 | 79432003000 CLUTCH PRESSURE CAP | CLUTCH PRESSURE CAP | 1 | $27.93 | Available | 1 |
| 8 | 78132025100 DAMPING RUBBER | DAMPING RUBBER | 6 | $4.99 | Available | 6 |
| 9 | 77232004000 DRIVING SLEEVE D=7,95 L=38 | DRIVING SLEEVE D=7,95 L=38 | 12 | $3.99 | Available | 12 |
| 10 | 0025050166 HH collar screw M5x16 TX30 | HH collar screw M5x16 TX30 | 3 | $2.99 | Available | 3 |
| 11 | 59032011100 LINING DISC 2MM 04 | LINING DISC 2MM 04 | 8 | $26.39 | Available | 8 |
| 12 | 59032010200 INTERMEDIATE DISC 1,4MM 2002 | INTERMEDIATE DISC 1,4MM 2002 | 7 | $12.86 | Available | 7 |
| 13 | 79432054000 PUSH ROD | PUSH ROD | 1 | $23.20 | Available | 1 |
| 14 | 78132018000 TAB WASHER | TAB WASHER | 1 | $6.92 | Available | |
| 15 | 0936181505 HEXAGON NUT DIN0936-M18X1,5 R. | HEXAGON NUT DIN0936-M18X1,5 R. | 1 | $9.12 | Available | 1 |
| 16 | 0025060306 HH collar screw M6x30 TX30 | HH collar screw M6x30 TX30 | 2 | $3.99 | Available | 2 |
| 21 | 59032065000 GASKET FOR SLAVE CYLINDER | GASKET FOR SLAVE CYLINDER | 1 | $6.59 | Available | 1 |
| 22 | 54832061044 OUTPUT CYLINDER CPL. 06 | OUTPUT CYLINDER CPL. 06 | 1 | $161.69 | Available | 1 |
| 23 | 54832066000 PISTON CPL. | PISTON CPL. | 1 | $80.51 | Available | 1 |
| 24 | 54832067000 O-RING | O-RING | 1 | $3.99 | Available | 1 |
| 25 | 54832069000 PRESSURE SPRING | PRESSURE SPRING | 1 | $14.18 | Available | 1 |
| 26 | 0603100141 sealing ring DIN 7603 10x14x1 | sealing ring DIN 7603 10x14x1 | 2 | $2.99 | Available | 2 |
| 27 | 78132063000 CLUTCH PIPE | CLUTCH PIPE | 1 | $126.05 | Available | 1 |
| 28 | 62513020000 BLEEDER SCREW CPL. 05 | BLEEDER SCREW CPL. 05 | 1 | $32.33 | Available | 1 |
| 29 | 0025060206 HH collar screw M6x20 TX30 | HH collar screw M6x20 TX30 | 6 | $3.99 | Available | 6 |
| 31 | 50329050000 VENT INJEKTION HYDR. CLUTCH | VENT INJEKTION HYDR. CLUTCH | 1 | $63.24 | Available | 1 |
| 33 | 59032010100 INTERMEDIATE DISC 1MM 2002 | INTERMEDIATE DISC 1MM 2002 | 1 | $11.54 | Available | 1 |
| 35 | 78132057144 PRESSURE PIECE CPL. | PRESSURE PIECE CPL. | 1 | $36.18 | Available | 1 |
| 36 | 78132006100 SPRING RING | SPRING RING | 1 | $12.75 | Available | 1 |
| 37 | 78932005000 BELLEV. SPR. 71X115X1,6IO=4.74 | BELLEV. SPR. 71X115X1,6IO=4.74 | 1 | $73.69 | Available | 1 |
| 38 | 78132002111 HUB | HUB | 1 | $158.50 | Available | 1 |
| 39 | 78932010000 INTERMEDIATE DISC 1MM | INTERMEDIATE DISC 1MM | 1 | $14.18 | Available | 1 |
| 99 | 78932010033 CLUTCH DISC KIT | CLUTCH DISC KIT | 1 | $246.06 | Available | 1 |
