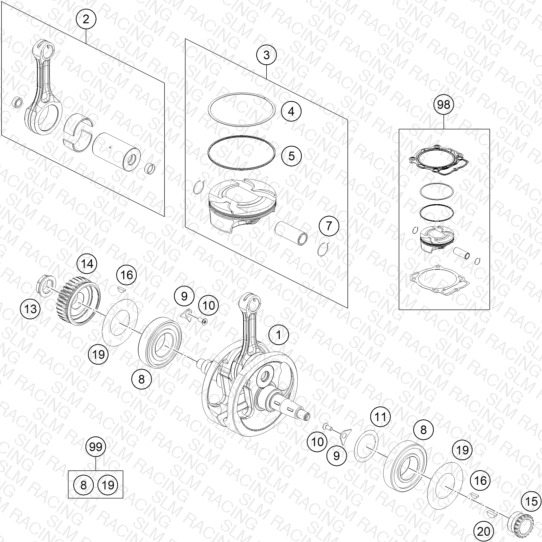

CRANKSHAFT, PISTON
Parts (23)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 79430018100 CRANKSHAFT CPL. | CRANKSHAFT CPL. | 1 | $1086.24 | Available | 1 |
| 2 | 79430015144 CONROD REPAIR KIT | CONROD REPAIR KIT | 1 | $603.56 | Available | 1 |
| 3 | 78930007300 I PISTON I D=95MM | PISTON I D=95MM | 1 | $559.19 | Available | |
| 3 | 78930007300 II PISTON II D=95MM | PISTON II D=95MM | 1 | $559.19 | Available | |
| 4 | 78930030000 COMPRESSION RING | COMPRESSION RING | 1 | $48.06 | Available | 1 |
| 5 | 78930032000 OIL SCRAPER RING | OIL SCRAPER RING | 1 | $61.81 | Available | 1 |
| 7 | 78930074000 CIRCLIP | CIRCLIP | 2 | $22.76 | Available | 2 |
| 8 | 79430082000 CYLINDER ROLLER BEARING NJ207 | CYLINDER ROLLER BEARING NJ207 | 2 | $107.13 | Available | 2 |
| 9 | 75030085000 RETAINING PLATE F. CS BEARING | RETAINING PLATE F. CS BEARING | 4 | $1.99 | Available | 4 |
| 10 | 0019050121S INT. TORX FLAT HEAD M5X12 T25 | INT. TORX FLAT HEAD M5X12 T25 | 2 | $2.99 | Available | 2 |
| 11 | 56530081000 SHIM WASHER 36X48X0,10 | SHIM WASHER 36X48X0,10 | — | $2.99 | Available | 1 |
| 11 | 56530081100 SHIM WASHER 36X48X0,15 | SHIM WASHER 36X48X0,15 | — | $2.99 | Available | 1 |
| 11 | 56530081200 SHIM WASHER 36X48X0,20 STEEL | SHIM WASHER 36X48X0,20 STEEL | — | $2.99 | Available | 1 |
| 11 | 56530081300 SHIM WASHER 36X48X0,30 | SHIM WASHER 36X48X0,30 | — | $2.99 | Available | 1 |
| 13 | 78030029200 NUT PRIMARY WHEEL M20X1,5 | NUT PRIMARY WHEEL M20X1,5 | 1 | $11.87 | Available | 1 |
| 14 | 79432023031 PRIMARY GEAR 31T | PRIMARY GEAR 31T | 1 | $106.58 | Available | 1 |
| 15 | 78036014200 TIMING GEAR 18T. | TIMING GEAR 18T. | 1 | $47.84 | Available | 1 |
| 16 | 0888030037 WOODRUFF KEY DIN6888-3X3,7 | WOODRUFF KEY DIN6888-3X3,7 | 1 | $2.99 | Available | 1 |
| 19 | 79430084000 BEARING SEAL | BEARING SEAL | 2 | $8.24 | Available | 2 |
| 20 | 0888030050 WOODRUFF KEY DIN6888-3X5X13 | WOODRUFF KEY DIN6888-3X5X13 | 1 | $2.99 | Available | 1 |
| 98 | 78930007310 I PISTONKIT GR. I 450SX-F 17 | PISTONKIT GR. I 450SX-F 17 | — | $676.59 | Available | |
| 98 | 78930007310 II PISTON KIT GR. II 450SX-F 17 | PISTON KIT GR. II 450SX-F 17 | — | $676.59 | Available | |
| 99 | 00050002315 CRANKSHAFT REP.KIT 450 SX-F 15 | CRANKSHAFT REP.KIT 450 SX-F 15 | — | $230.55 | Available | 1 |
