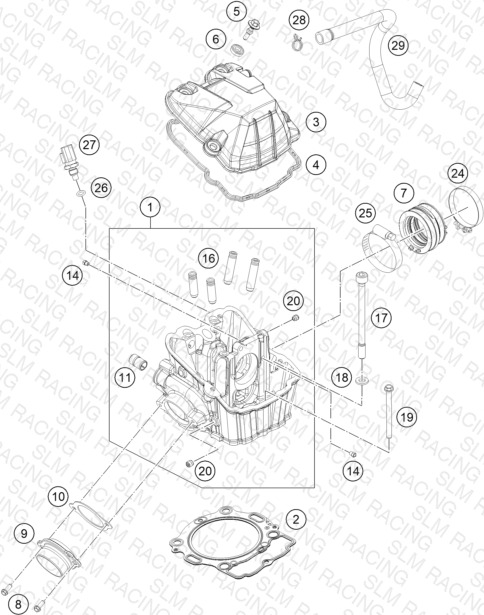

CYLINDER HEAD
Parts (23)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 78936020044 CYLINDER HEAD CPL. | CYLINDER HEAD CPL. | 1 | — | Obsolete | View Details |
| 2 | 78930036010 CYLINDER HEAD GASKET S=1.0 | CYLINDER HEAD GASKET S=1.0 | 1 | $111.53 | Available | 1 |
| 3 | 7803605200033 VALVE COVER BLACK MATT | VALVE COVER BLACK MATT | 1 | $57.52 | Available | 1 |
| 4 | 78036053100 VALVE COVER GASKET | VALVE COVER GASKET | 1 | $11.65 | Available | 1 |
| 5 | 78036054100 VALVE COVER SCREW | VALVE COVER SCREW | 4 | $7.80 | Available | 4 |
| 6 | 75036052010 decoupling element | decoupling element | 4 | $4.99 | Available | 4 |
| 7 | 77736044000 RUBBER BOOT EFI | RUBBER BOOT EFI | 1 | $42.67 | Available | 1 |
| 8 | 0025060166S HH collar screw M6x16 TX30 SL | HH collar screw M6x16 TX30 SL | 1 | $2.99 | Available | 1 |
| 9 | 78136139000 EXHAUST FLANGE | EXHAUST FLANGE | 1 | $43.00 | Available | 1 |
| 10 | 78036041000 EXHAUST FLANGE GASKET | EXHAUST FLANGE GASKET | 1 | $3.99 | Available | 1 |
| 11 | 58030010200 SCREW IN NOZZLE M20X1,5 | SCREW IN NOZZLE M20X1,5 | 1 | $10.44 | Available | 1 |
| 14 | 60030063070 oil jet 70 M5 | oil jet 70 M5 | 2 | $10.11 | Available | 2 |
| 16 | 78136025001 VALVE GUIDE INTAKE | VALVE GUIDE INTAKE | 2 | $29.91 | Available | 2 |
| 17 | 78030044000 CYL. HEAD SCREW M10X1,25 L=125 | CYL. HEAD SCREW M10X1,25 L=125 | 4 | $7.47 | Available | 4 |
| 18 | 77336089010 washer 19x10.5x2.5 | washer 19x10.5x2.5 | 4 | $4.99 | Available | 4 |
| 19 | 0025060706 HH COLLAR SCREW M6X70 TX30 | HH COLLAR SCREW M6X70 TX30 | 1 | $3.99 | Available | 1 |
| 20 | 59030296000 SCREW PLUG | SCREW PLUG | 3 | $7.36 | Available | 3 |
| 24 | 61036047000 Hose clamp GEMI 63mm 05 | Hose clamp GEMI 63mm 05 | 1 | $8.90 | Available | 1 |
| 25 | 77236048000 Hose clip GEMI 58 | Hose clip GEMI 58 | 1 | $14.18 | Available | 1 |
| 26 | 0770100020 o-ring 10.00x2.00 silicone | o-ring 10.00x2.00 silicone | 1 | $2.99 | Available | 1 |
| 27 | 60011252000 TEMPERAT.-SENSOR WATER LC8 02 | TEMPERAT.-SENSOR WATER LC8 02 | 1 | $43.11 | Available | 1 |
| 28 | 58431082300 CLAMP YDNAC 10173 (18MM) | CLAMP YDNAC 10173 (18MM) | 1 | $2.99 | Available | 1 |
| 29 | 78130087000 ENGINE BREATHER TUBE | ENGINE BREATHER TUBE | 1 | $29.47 | Available | 1 |
