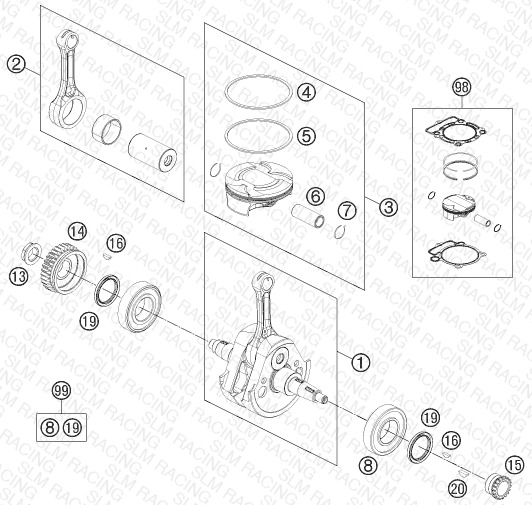

CRANKSHAFT, PISTON
Parts (18)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 78930018000 CRANKSHAFT CPL. | CRANKSHAFT CPL. | 1 | $1060.61 | Available | 1 |
| 2 | 78930015044 CON. ROD. REP. KIT | CON. ROD. REP. KIT | 1 | $444.83 | Available | 1 |
| 3 | 78930007100 I PISTON D=95MM | PISTON D=95MM | 1 | $429.54 | Out of Stock | Notify Me |
| 3 | 78930007100 II PISTON D=95MM | PISTON D=95MM | 1 | $559.19 | Available | |
| 4 | 78930030000 COMPRESSION RING | COMPRESSION RING | 1 | $48.06 | Available | 1 |
| 5 | 78930032000 OIL SCRAPER RING | OIL SCRAPER RING | 1 | $61.81 | Available | 1 |
| 6 | 78930033000 PISTON PIN | PISTON PIN | 1 | — | Obsolete | View Details |
| 7 | 78930074000 CIRCLIP | CIRCLIP | 2 | $22.76 | Available | 2 |
| 8 | 0625062071 BALL BEARING 6207 TM-SX07E 39 | BALL BEARING 6207 TM-SX07E 39 | 2 | $62.14 | Available | 2 |
| 13 | 78030029200 NUT PRIMARY WHEEL M20X1,5 | NUT PRIMARY WHEEL M20X1,5 | 1 | $11.87 | Available | 1 |
| 14 | 78132000032 PRIMARY GEAR | PRIMARY GEAR | 1 | — | Obsolete | View Details |
| 15 | 78036014200 TIMING GEAR 18T. | TIMING GEAR 18T. | 1 | $47.84 | Available | 1 |
| 16 | 0888030037 WOODRUFF KEY DIN6888-3X3,7 | WOODRUFF KEY DIN6888-3X3,7 | 1 | $2.99 | Available | 1 |
| 19 | 0760354774 SHAFT SEAL RING 35X47X7 VITON | SHAFT SEAL RING 35X47X7 VITON | 2 | $13.96 | Available | 2 |
| 20 | 0888030050 WOODRUFF KEY DIN6888-3X5X13 | WOODRUFF KEY DIN6888-3X5X13 | 1 | $2.99 | Available | 1 |
| 98 | 00050000218 PISTON KIT GR.I 450 SX-F 13-14 | PISTON KIT GR.I 450 SX-F 13-14 | — | $576.50 | Available | 1 |
| 98 | 00050000219 PISTON KIT GR.II 450 SX-F13-14 | PISTON KIT GR.II 450 SX-F13-14 | — | $576.50 | Backorder — Restocking | 1 |
| 99 | 00050002310 CRANKSHAFT REP. KIT 450 SX-F13 | CRANKSHAFT REP. KIT 450 SX-F13 | — | $109.11 | Available | 1 |
