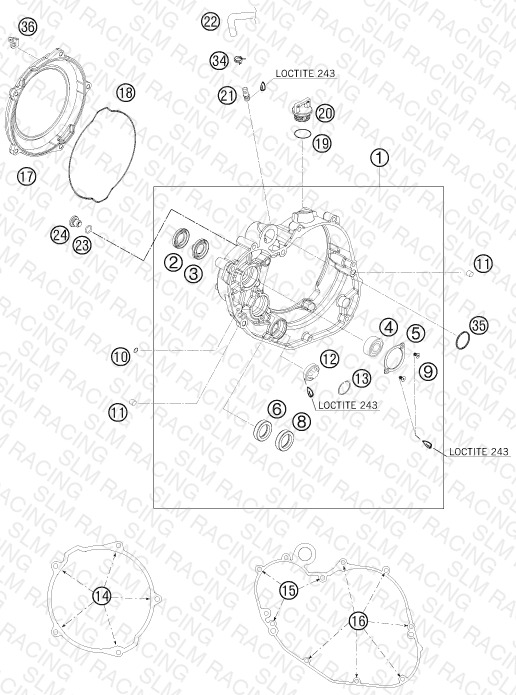

CLUTCH COVER
Parts (26)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 18 | 77330027000 CLUTCH CASE GASKET | CLUTCH CASE GASKET | 1 | — | Check availability | |
| 1 | 7733000124415 CLUTCH COVER CPL. | CLUTCH COVER CPL. | 1 | — | Check availability | |
| 2 | 77335057000 SHAFT SEAL RING 12x24x4 | SHAFT SEAL RING 12x24x4 | 1 | — | Check availability | |
| 3 | 77335056000 SHAFT SEAL RING 12x24x4/5,5 | SHAFT SEAL RING 12x24x4/5,5 | 1 | — | Check availability | |
| 4 | 0625062021 BALL BEARING 6202 C0 2RSH | BALL BEARING 6202 C0 2RSH | 1 | — | Check availability | |
| 5 | 77335064100 RETAINING PLATE FOR WAPUSTOCK | RETAINING PLATE FOR WAPUSTOCK | 1 | — | Check availability | |
| 6 | 0760203071 SHAFT SEAL RING 20X30X7 | SHAFT SEAL RING 20X30X7 | 1 | — | Check availability | |
| 8 | 0760253574 SHAFT SEAL RING 25x35x7 BSL VI | SHAFT SEAL RING 25x35x7 BSL VI | 1 | — | Check availability | |
| 9 | 0019050103 INT TORX FLAT HEAD M 5X10 8.8 | INT TORX FLAT HEAD M 5X10 8.8 | 2 | — | Check availability | View Details |
| 10 | 0770080015 O-RING 8,00X1,5 NBR 70 | O-RING 8,00X1,5 NBR 70 | 1 | — | Check availability | |
| 11 | 0402080120 CYLINDER ROLLER ZRO. 8,0X12 M4 | CYLINDER ROLLER ZRO. 8,0X12 M4 | 2 | — | Check availability | |
| 12 | 59030019000 OIL LEVEL GLASS G 1777 Y | OIL LEVEL GLASS G 1777 Y | 1 | — | Check availability | View Details |
| 13 | 61030019050 CIRCLIP OIL LEVEL GLASS 03 | CIRCLIP OIL LEVEL GLASS 03 | 1 | — | Check availability | |
| 14 | 0025060206 HH collar screw M6x20 TX30 | HH collar screw M6x20 TX30 | 5 | — | Check availability | |
| 15 | 77330067145 SCREW M7-1,0X45 | SCREW M7-1,0X45 | 3 | — | Check availability | |
| 16 | 0025060306 HH collar screw M6x30 TX30 | HH collar screw M6x30 TX30 | 6 | — | Check availability | |
| 17 | 7733002620015 CLUTCH COVER OUTSIDE 09 | CLUTCH COVER OUTSIDE 09 | 1 | — | Check availability | |
| 19 | 0770191015 O-RING 19,00X3,00 NBR | O-RING 19,00X3,00 NBR | 1 | — | Check availability | |
| 20 | 58030020100 oil plug cpl. M24x3 | oil plug cpl. M24x3 | 1 | — | Check availability | |
| 21 | 59030022100 BLEEDER FLANGE M12X1,5 WS=13 | BLEEDER FLANGE M12X1,5 WS=13 | 1 | — | Check availability | |
| 22 | 77330086100 ENGINE BREATHER TUBE | ENGINE BREATHER TUBE | 1 | — | Check availability | |
| 34 | 58431082100 YDNAC-clamp 10173 (16MM) | YDNAC-clamp 10173 (16MM) | 1 | — | Check availability | |
| 35 | 77335005000 QUAD-RING 28,3X1,78 VITON | QUAD-RING 28,3X1,78 VITON | 1 | — | Check availability | |
| 36 | 77303026054 SPRING BRACKET | SPRING BRACKET | 1 | — | Check availability | |
| 23 | 07700900151 O-RING 9x1,5 V80 SH | O-RING 9x1,5 V80 SH | 1 | — | Check availability | |
| 24 | 77336056095 SCREW PLUG | SCREW PLUG | 1 | — | Check availability |
