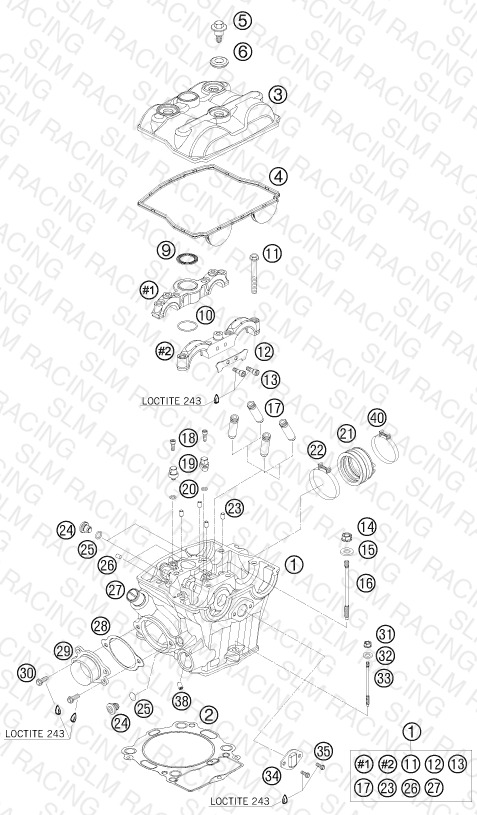

CYLINDER HEAD
Parts (34)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 77336020044 CYLINDER HEAD CPL. | CYLINDER HEAD CPL. | 1 | $1657.98 | Available | 1 |
| 2 | 77330036000 CYL. HEAD GASKET S=0,5 06 | CYL. HEAD GASKET S=0,5 06 | 1 | $50.92 | Available | 1 |
| 3 | 77336052100 VALVE COVER | VALVE COVER | 1 | $57.85 | Available | 1 |
| 4 | 77336053000 VALVE COVER GASKET | VALVE COVER GASKET | 1 | — | Obsolete | View Details |
| 5 | 77336054150 VALVE COVER SCREW | VALVE COVER SCREW | 2 | $6.15 | Available | 2 |
| 6 | 77036054050 RUBBER GASKET FOR SCREW 05 | RUBBER GASKET FOR SCREW 05 | 3 | $6.47 | Out of Stock | Notify Me |
| 9 | 77336053050 GASKET SPARK-PLUG SHAFT | GASKET SPARK-PLUG SHAFT | 1 | $6.92 | Backorder — Restocking | 1 |
| 10 | 0770250015 O-RING 25,00X1,50 NBR 70 | O-RING 25,00X1,50 NBR 70 | 1 | $1.99 | Available | 1 |
| 11 | 77330067138 SCRW M7-1,0X38 | SCRW M7-1,0X38 | 8 | $3.99 | Available | 8 |
| 12 | 77336020040 BUSHING HOLDER | BUSHING HOLDER | 1 | $6.59 | Available | 1 |
| 13 | 0912050103 AH SCREW DIN0912-M 5X10 | AH SCREW DIN0912-M 5X10 | 1 | $1.99 | Available | 1 |
| 14 | 77336088110 COLLAR NUT M10X1,25 SW13 | COLLAR NUT M10X1,25 SW13 | 4 | $2.99 | Available | 4 |
| 15 | 77336089010 washer 19x10.5x2.5 | washer 19x10.5x2.5 | 4 | $4.99 | Available | 4 |
| 16 | 77330044100 STUD SCREW M10 | STUD SCREW M10 | 4 | $7.58 | Available | 4 |
| 17 | 77336025100 VALVE GUIDE | VALVE GUIDE | 4 | $30.24 | Available | 4 |
| 18 | 0912040123 AH SCREW DIN0912-M 4X12 | AH SCREW DIN0912-M 4X12 | 2 | — | Obsolete | View Details |
| 19 | 77338046000 OIL JET | OIL JET | 2 | — | Obsolete | View Details |
| 20 | 0770060015 O-ring 6,00x1,50 NBR 70 | O-ring 6,00x1,50 NBR 70 | 2 | $6.15 | Available | 2 |
| 21 | 59036044200 INTAKE BOOT 525 06 | INTAKE BOOT 525 06 | 1 | — | Obsolete | View Details |
| 22 | 59030061100 HOSE CLAMP GEMI 56MM 03 | HOSE CLAMP GEMI 56MM 03 | 2 | — | Obsolete | View Details |
| 23 | 0402050080 CYLINDER ROLLER ZRO 5X8 | CYLINDER ROLLER ZRO 5X8 | 2 | $2.99 | Available | 2 |
| 24 | 77336056095 SCREW PLUG | SCREW PLUG | 2 | $8.24 | Available | 2 |
| 25 | 0770090015 O-RING 9X1,5 NBR | O-RING 9X1,5 NBR | 2 | $2.99 | Available | 2 |
| 26 | 59030196000 PLUG 00 | PLUG 00 | 2 | $1.99 | Available | 2 |
| 27 | 58030010200 SCREW IN NOZZLE M20X1,5 | SCREW IN NOZZLE M20X1,5 | 1 | $10.44 | Available | 1 |
| 28 | 77336041000 GASKET EXHAUST FLANGE | GASKET EXHAUST FLANGE | 1 | $10.33 | Available | 1 |
| 29 | 77336039100 EXHAUST FLANGE CPL. | EXHAUST FLANGE CPL. | 1 | — | Obsolete | View Details |
| 30 | 0015060203 HH COLLAR SCREW M 6X20 WS=8 | HH COLLAR SCREW M 6X20 WS=8 | 6 | $3.99 | Available | 6 |
| 31 | 77336088106 COLLAR NUT M6X1 SW8 | COLLAR NUT M6X1 SW8 | 1 | $14.84 | Available | 1 |
| 32 | 0125060003 WASHER DIN0125-A 6,4 | WASHER DIN0125-A 6,4 | 1 | $1.99 | Available | 1 |
| 33 | 77330043000 STUD SCREW M6 | STUD SCREW M6 | 1 | $13.08 | Available | 1 |
| 34 | 77336075050 RETAINING PLATE | RETAINING PLATE | 1 | $6.15 | Out of Stock | Notify Me |
| 35 | 0015050103 HH COLLAR SCREW M 5X10 WS=8 | HH COLLAR SCREW M 5X10 WS=8 | 3 | — | Obsolete | View Details |
| 38 | 77338029012 THROTTLE M6X10X0,6 | THROTTLE M6X10X0,6 | 1 | $14.07 | Available | 1 |
