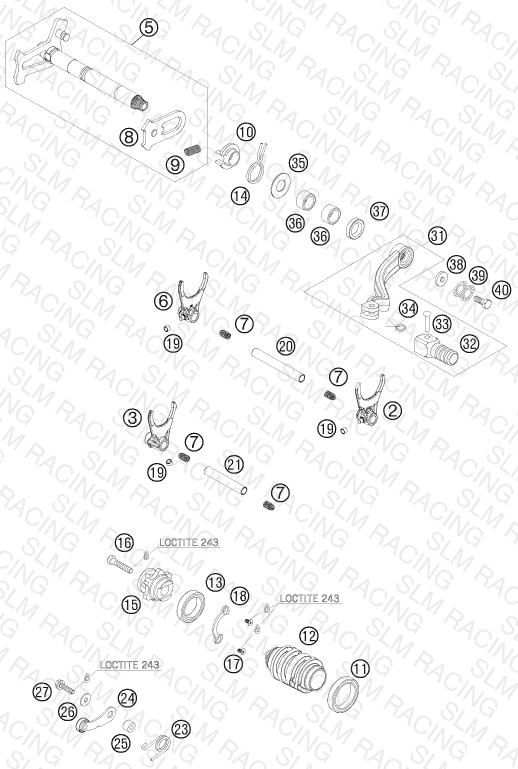

SHIFTING MECHANISM
Parts (34)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 2 | 77334002100 SHIFTING FORK 2ND/4TH GEAR | SHIFTING FORK 2ND/4TH GEAR | 1 | — | Obsolete | View Details |
| 3 | 77334003100 SHIFTING FORK 3RD/5TH GEAR 03 | SHIFTING FORK 3RD/5TH GEAR 03 | 1 | — | Obsolete | View Details |
| 5 | 77334005044 SHIFT SHAFT CPL. 07 | SHIFT SHAFT CPL. 07 | 1 | $120.00 | Available | 1 |
| 6 | 77334001100 SHIFTING FORK 1ST.GEAR | SHIFTING FORK 1ST.GEAR | 1 | — | Obsolete | View Details |
| 7 | 58038023200 PRESSURE SPRING 0,9MM | PRESSURE SPRING 0,9MM | 3 | $4.99 | Available | 3 |
| 8 | 54634008044 SLIDING PLATE CPL. | SLIDING PLATE CPL. | 1 | $12.31 | Available | 1 |
| 9 | 56534013100 TENSIONING SPRING 0,8MM | TENSIONING SPRING 0,8MM | 1 | $1.99 | Available | 1 |
| 10 | 54634020000 SPRING GUIDE | SPRING GUIDE | 1 | $7.58 | Available | 1 |
| 11 | 0625061806 BALL BEARING 61806 | BALL BEARING 61806 | 1 | $28.04 | Available | 1 |
| 12 | 77334012100 SHIFT ROLLER 5G 08 | SHIFT ROLLER 5G 08 | 1 | $115.16 | Out of Stock | Notify Me |
| 13 | 0625068050 BALL BRG 6805 C4 NTN JAPAN | BALL BRG 6805 C4 NTN JAPAN | 1 | $51.69 | Available | 1 |
| 14 | 54834014000 RETURN SPRING 03 | RETURN SPRING 03 | 1 | $4.99 | Available | 1 |
| 15 | 77334015000 SHIFT LOCATING DRUM CPL. | SHIFT LOCATING DRUM CPL. | 1 | $51.69 | Available | 1 |
| 16 | 0012060303 AH SCREW DIN6912 M6X30 8.8 | AH SCREW DIN6912 M6X30 8.8 | 1 | $1.99 | Available | 1 |
| 17 | 0019050103 INT TORX FLAT HEAD M 5X10 8.8 | INT TORX FLAT HEAD M 5X10 8.8 | 4 | $2.99 | Available | 4 |
| 18 | 77334090000 BUSHING RETAINING PLATE | BUSHING RETAINING PLATE | 1 | $4.99 | Available | 1 |
| 19 | 50334018100 SHIFTING ROLLER 6X8X5,2 | SHIFTING ROLLER 6X8X5,2 | 3 | $4.99 | Available | 3 |
| 20 | 77334020000 SHIFT RAIL | SHIFT RAIL | 1 | — | Obsolete | View Details |
| 21 | 77334019000 FRONT SHIFT RAIL | FRONT SHIFT RAIL | 1 | — | Obsolete | View Details |
| 23 | 60034023000 ARRESTING LEVER SPRING 03 | ARRESTING LEVER SPRING 03 | 1 | $2.99 | Available | 1 |
| 24 | 50334024144 LOCATING LEVER CPL. 08 | LOCATING LEVER CPL. 08 | 1 | $17.15 | Available | 1 |
| 25 | 54634052300 SLEEVE FOR LOCKING LEVER | SLEEVE FOR LOCKING LEVER | 1 | $3.99 | Available | 1 |
| 26 | 0021050003 washer DIN 9021 A - 5.3 | washer DIN 9021 A - 5.3 | 2 | $1.99 | Available | 2 |
| 27 | 0015050203 HH COLLAR SCREW M 5X20 WS=8 | HH COLLAR SCREW M 5X20 WS=8 | 1 | $2.99 | Available | 1 |
| 31 | 54734031000 SHIFT LEVER CPL. 2-STROKE 2001 | SHIFT LEVER CPL. 2-STROKE 2001 | 1 | $93.05 | Available | 1 |
| 32 | 54634131000 STEP PLATE FOR SHIFT LEVER 250 | STEP PLATE FOR SHIFT LEVER 250 | 1 | $37.17 | Available | 1 |
| 33 | 54634031050 BOLT 6X25 FOR SHIFT LEVER | BOLT 6X25 FOR SHIFT LEVER | 1 | $9.23 | Available | 1 |
| 34 | 54634032100 SHIFTING LEVER SPRING 250 | SHIFTING LEVER SPRING 250 | 1 | $3.99 | Available | 1 |
| 35 | 54634050000 STOP DISK 14X30X1 | STOP DISK 14X30X1 | 1 | $2.99 | Available | 1 |
| 36 | 54632095000 needle sleeve HK 1412 14x20x12 | needle sleeve HK 1412 14x20x12 | 2 | $8.24 | Available | 2 |
| 37 | 0760142460 radial shaft seal 14x24x6 B | radial shaft seal 14x24x6 B | 1 | $10.88 | Available | 1 |
| 38 | 50232050001 STEEL WASHER 6,4X17X3 | STEEL WASHER 6,4X17X3 | 1 | $6.15 | Available | 1 |
| 39 | 50233041000 Pair of washers M6 NORDLOCK | Pair of washers M6 NORDLOCK | 2 | $4.99 | Available | 2 |
| 40 | 0933060165 HH SCREW DIN0933-M 6X16 10.9 | HH SCREW DIN0933-M 6X16 10.9 | 1 | $2.99 | Available | 1 |
